bf225ak1
Section E-13: TIMING BELT (v2)

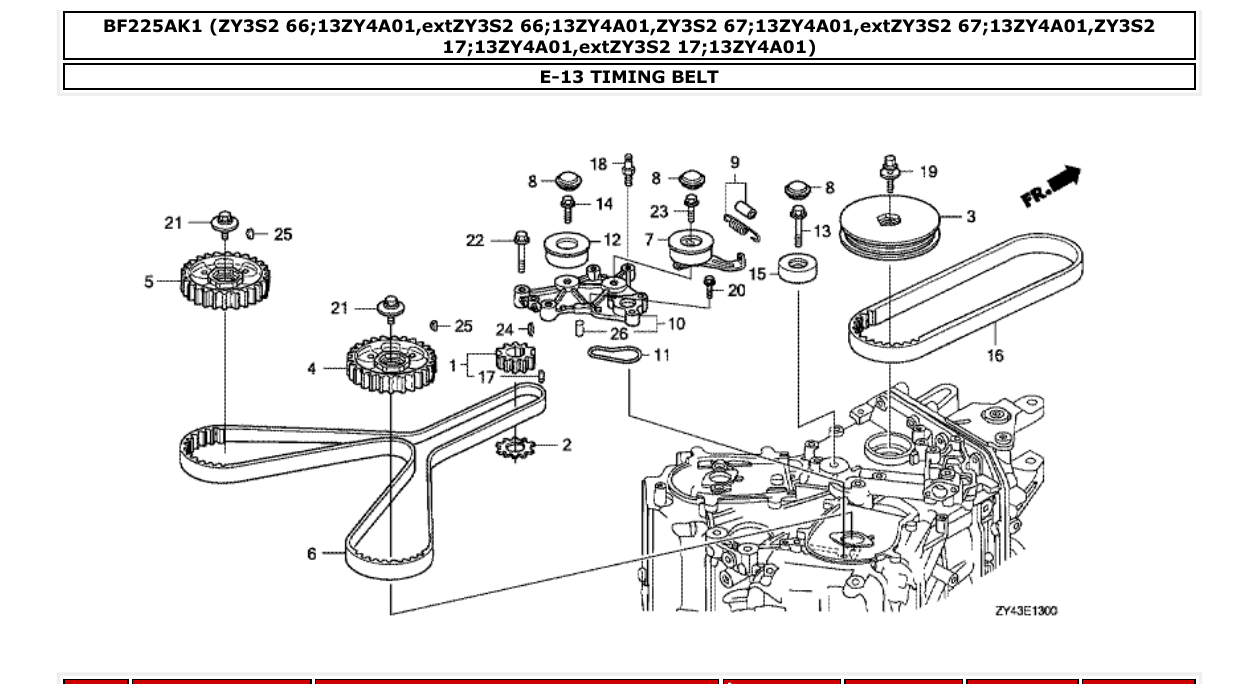

Diagram for section E-13: TIMING BELT.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
13621ZY3C01
PULLEY, TIMING BELT DRIVE
|
1 | Ask on WhatsApp |
| 2 |
13622ZY3C00
PLATE, TIMING BELT GUIDE
|
1 | Ask on WhatsApp |
| 3 |
13811ZY3A00
PULLEY, CRANKSHAFT
|
1 | Ask on WhatsApp |
| 4 |
14261ZY3C00
PULLEY COMP., R. TIMING BELT DRIVEN
|
1 | Ask on WhatsApp |
| 5 |
14270ZY3C00
PULLEY COMP., L. TIMING BELT DRIVEN
|
1 | Ask on WhatsApp |
| 6 |
14400P8AA01
BELT, TIMING (197YU26 B-333)
|
1 | Ask on WhatsApp |
| 7 |
14510ZY3003
TENSIONER COMP., TIMING BELT
|
1 | Ask on WhatsApp |
| 8 |
14515ZY3000
CAP, TIMING BELT TENSIONER
|
3 | Ask on WhatsApp |
| 9 |
14520ZY3000
SPRING COMP., TIMING BELT ADJUSTING
|
1 | Ask on WhatsApp |
| 10 |
14526ZY3405ZA
BASE COMP., TIMING BELT TENSIONER *NH8 *
|
1 | Ask on WhatsApp |
| 11 |
14529ZY3000
O-RING, TIMING BELT TENSIONER BASE
|
1 | Ask on WhatsApp |
| 12 |
14550ZY3003
IDLER, TIMING BELT (KOYO SEIKO)
|
1 | Ask on WhatsApp |
| 13 |
14551P8AA01
BOLT, IDLER
|
1 | Ask on WhatsApp |
| 14 |
14553ZY3003
BOLT, TIMING BELT IDLER A
|
1 | Ask on WhatsApp |
| 15 |
14555ZY3003
IDLER B, TIMING BELT
|
1 | Ask on WhatsApp |
| 16 |
31638ZY3003
BELT, A.C. GENERATOR (6PK745 M-180)
|
1 | Ask on WhatsApp |
| 17 |
41122ZV0000
PIN, VERTICAL SHAFT
|
1 | Ask on WhatsApp |
| 18 |
90012ZV5013
BOLT, TIMING BELT ADJUSTING SPRING
|
1 | Ask on WhatsApp |
| 19 |
90017RJA003
BOLT-WASHER, 16X49
|
1 | Ask on WhatsApp |
| 20 |
90030ZY3000
BOLT, FLANGE, 6X22
|
1 | Ask on WhatsApp |
| 21 |
90031P8AA01
BOLT-WASHER, 12X35
|
2 | Ask on WhatsApp |
| 22 |
90039ZY3000
BOLT, FLANGE, 10X40
|
3 | Ask on WhatsApp |
| 23 |
90040ZY3000
BOLT, FLANGE, 10X43
|
1 | Ask on WhatsApp |
| 24 |
90704RCAA00
KEY, 4.5X24
|
1 | Ask on WhatsApp |
| 25 |
90741ZY3000
KEY, SPECIAL
|
2 | Ask on WhatsApp |
| 26 |
9430106100
DOWEL PIN, 6X10 -- 12 --
|
1 | Ask on WhatsApp |
