Section F-7-11: COVER/BRACKET (v2)

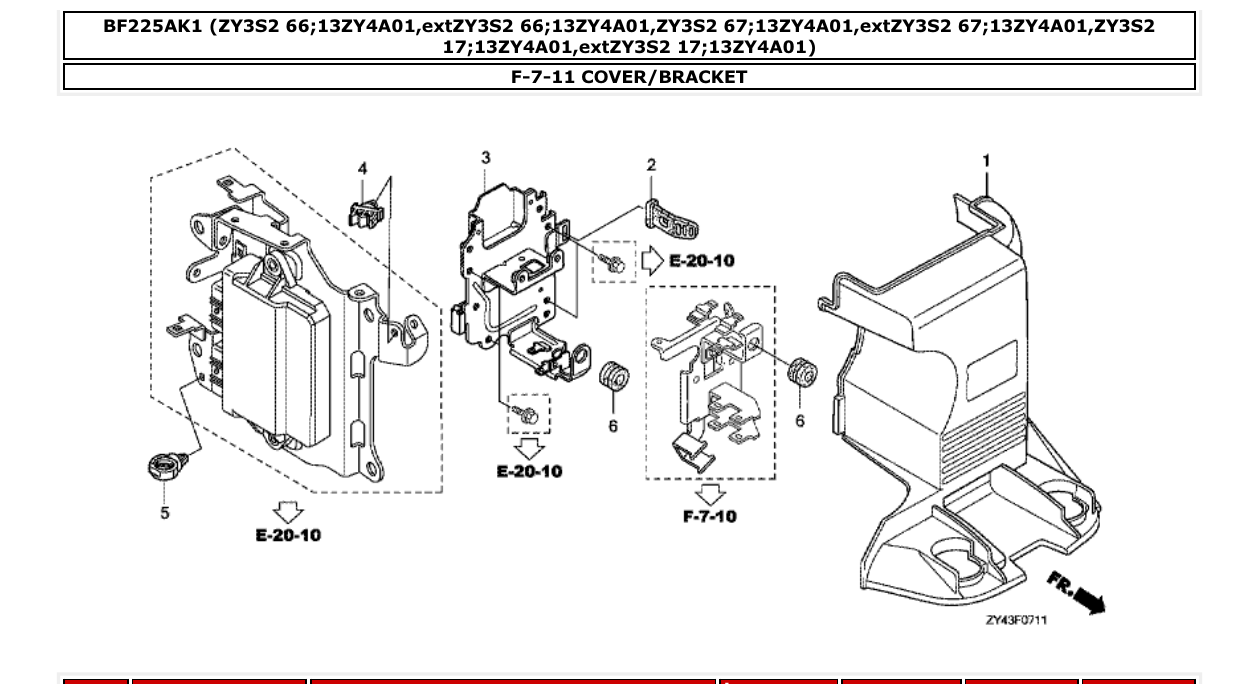

Diagram for section F-7-11: COVER/BRACKET.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
30421ZY3000
COVER, ELECTRIC PARTS
|
1 | Ask on WhatsApp |
| 2 |
30422ZY3000
BELT, COVER
|
1 | Ask on WhatsApp |
| 3 |
38252ZY3C00
BRACKET, ELECTRIC PARTS
|
1 | Ask on WhatsApp |
| 4 |
46392S0XA01
CLIP, BRAKE PIPE
|
1 | Ask on WhatsApp |
| 5 |
90683SA0003
CLIP, WIRE HARNESS, 25MM
|
1 | Ask on WhatsApp |
| 6 |
90851898000
RUBBER, TANK CUSHION -- 40 --
|
2 | Ask on WhatsApp |
