FJR1300AP
Section 2: CRANKSHAFT & PISTON (v2)
Model code: 2BC2

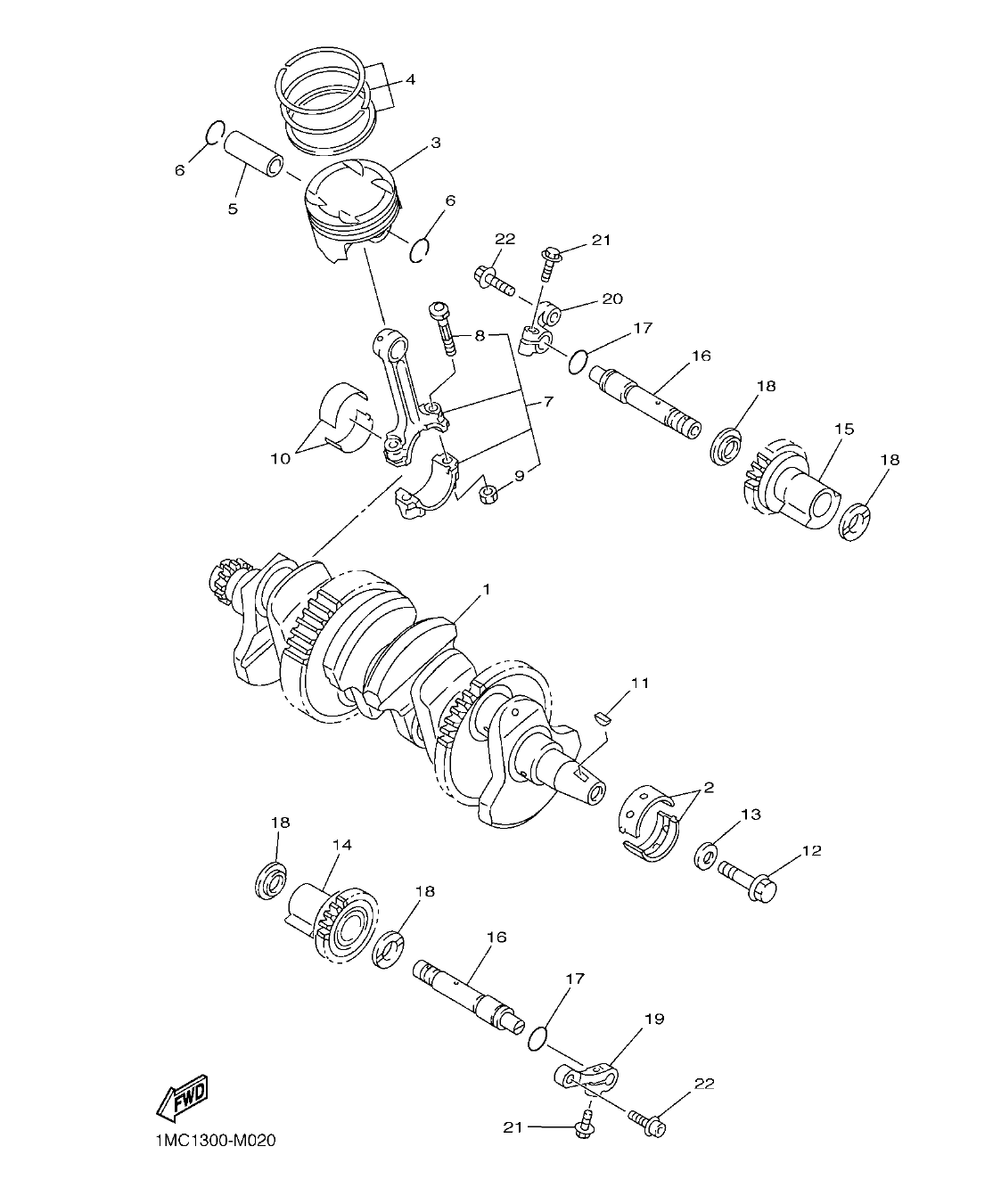

Parts list
Section 2
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
5JW-11411-00
CRANKSHAFT
|
1 | |
| 2 |
3LD-11416-10
PLANE BEARING, CRANKSHAFT 1
UR BLACK
|
10 | |
| 2 |
3LD-11416-20
PLANE BEARING, CRANKSHAFT 1
UR BROWN
|
10 | |
| 2 |
3LD-11416-30
PLANE BEARING, CRANKSHAFT 1
UR GREEN
|
10 | |
| 2 |
3LD-11416-40
PLANE BEARING, CRANKSHAFT 1
UR YELLOW
|
10 | |
| 2 |
3LD-11416-50
PLANE BEARING, CRANKSHAFT 1
UR PINK
|
10 | |
| 2 |
3LD-11416-60
PLANE BEARING, CRANKSHAFT 1
UR RED
|
10 | |
| 2 |
3LD-11416-70
PLANE BEARING, CRANKSHAFT 1
UR WHITE
|
10 | |
| 3 |
5JW-11631-00
PISTON (STD)
|
4 | |
| 4 |
1MC-11603-00
PISTON RING SET (STD)
|
4 | |
| 5 |
5JW-11633-00
PIN, PISTON
|
4 | |
| 6 |
93450-19095
CIRCLIP
|
8 | |
| 7 |
5JW-11650-01
CONNECTING ROD ASSY
|
4 | |
| 8 |
5JW-11654-00
.BOLT, CONNECTING ROD
|
2 | |
| 9 |
90179-08327
.NUT
|
2 | |
| 10 |
5JW-11656-50
PLANE BEARING, CONNECTING ROD
UR PINK
|
8 | |
| 10 |
5JW-11656-10
PLANE BEARING, CONNECTING ROD
UR BLACK
|
8 | |
| 10 |
5JW-11656-40
PLANE BEARING, CONNECTING ROD
UR YELLOW
|
8 | |
| 10 |
5JW-11656-30
PLANE BEARING, CONNECTING ROD
UR GREEN
|
8 | |
| 10 |
5JW-11656-20
PLANE BEARING, CONNECTING ROD
UR BROWN
|
8 | |
| 10 |
5JW-11656-00
PLANE BEARING, CONNECTING ROD
UR BLUE
|
8 | |
| 11 |
90280-05029
KEY, WOODRUFF
|
1 |
10.43 AED
Check price & stock on WhatsApp
|
| 12 |
90105-12005
BOLT, FLANGE
|
1 | |
| 13 |
90201-121H0
WASHER, PLATE
|
1 | |
| 14 |
5JW-11500-00
BALANCER ASSY
|
1 | |
| 15 |
5JW-11510-00
BALANCER ASSY, 2
|
1 | |
| 16 |
5JW-11583-00
SHAFT, BALANCER 1
|
2 | |
| 17 |
93210-16325
O-RING
|
2 | |
| 18 |
5JW-11557-00
WASHER 1
|
4 | |
| 19 |
5JW-13831-10
LEVER 1
|
1 | |
| 20 |
5JW-13832-10
LEVER 2
|
1 | |
| 21 |
95022-06020
BOLT, FLANGE
|
2 |
2.98 AED
Check price & stock on WhatsApp
|
| 22 |
90110-08056
BOLT, HEXAGON SOCKET HEAD
|
2 |
