FJR1300AP

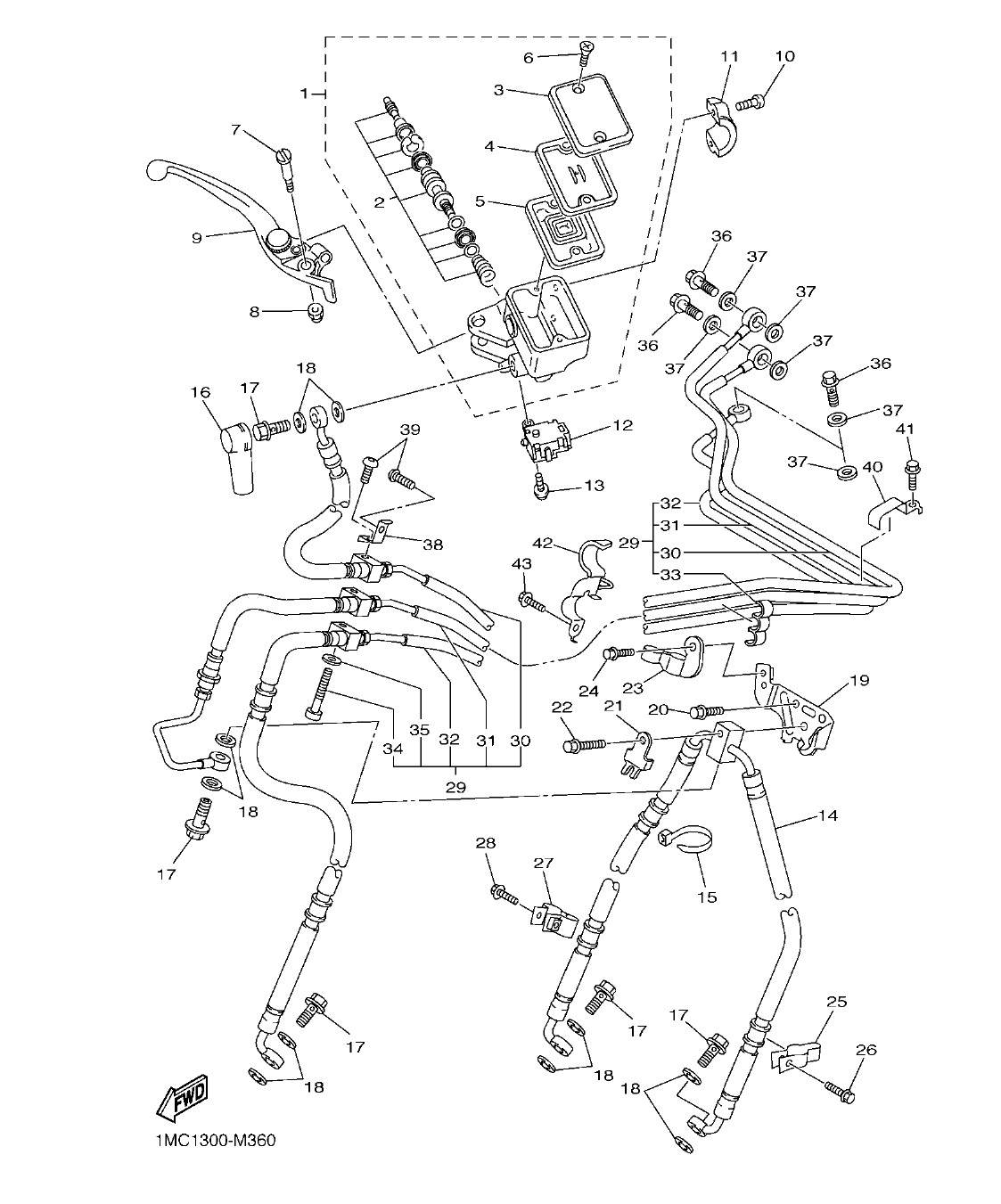

Section 36: FRONT MASTER CYLINDER (v2)
Model code: 2BC2
Parts list
Section 36
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
1MC-2580A-00
MASTER CYLINDER SUB ASSY 2
|
1 | |
| 2 |
1MC-25807-00
.CYLINDER KIT, MASTER
|
1 |
46.93 AED
Check price & stock on WhatsApp
|
| 3 |
5VS-25852-00
.CAP, RESERVOIR
|
1 | |
| 4 |
5VS-25855-00
.BUSH,DIAPHRAGM
|
1 | |
| 5 |
20S-25854-00
.DIAPHRAGM, RESERVOIR
|
1 | |
| 6 |
5VS-2589H-00
.SCREW
|
2 | |
| 7 |
5VS-2589F-00
BOLT, LEVER
|
1 | |
| 8 |
95617-06100
NUT, U
|
1 | |
| 9 |
5VS-83922-00
LEVER 2
|
1 | |
| 10 |
5VS-26332-00
BOLT
|
2 | |
| 11 |
2D2-25867-00
BRACKET, MASTER CYLINDER
|
1 | |
| 12 |
1MC-83980-00
FRONT STOP SWITCH ASSY
|
1 | |
| 13 |
97602-04214
SCREW, PAN HEAD WITH WASHER
|
1 | |
| 14 |
3P6-25872-20
HOSE, BRAKE 1
|
1 | |
| 15 |
1UA-82591-00
BAND
|
1 | |
| 16 |
4L0-25862-01
BOOT, MASTER CYLINDER
|
1 | |
| 17 |
90401-10020
BOLT, UNION
|
5 | |
| 18 |
90430-10005
GASKET
|
10 |
2.86 AED
Check price & stock on WhatsApp
|
| 19 |
3P6-25886-00
HOLDER, BRAKE HOSE
|
1 | |
| 20 |
95022-06010
BOLT, FLANGE
|
2 | |
| 21 |
5VS-25843-00
SLEEVE, CALIPER
|
1 | |
| 22 |
95022-06025
BOLT, FLANGE
|
1 | |
| 23 |
3P6-2587A-00
HOLDER, BRAKE HOSE
|
1 | |
| 24 |
95022-06010
BOLT, FLANGE
|
1 | |
| 25 |
3P6-25887-00
HOLDER, BRAKE HOSE
|
1 | |
| 26 |
95022-06020
BOLT, FLANGE
|
1 |
2.98 AED
Check price & stock on WhatsApp
|
| 27 |
3P6-25876-00
HOLDER, BRAKE HOSE 2
|
1 | |
| 28 |
95022-06020
BOLT, FLANGE
|
1 |
2.98 AED
Check price & stock on WhatsApp
|
| 29 |
5P5-2584A-00
BRAKE HOSE ASSY
|
1 | |
| 30 |
5P5-2584B-00
.HOSE, BRAKE
|
1 | |
| 31 |
3P6-2584C-10
.HOSE, BRAKE
|
1 | |
| 32 |
3P6-2584D-10
.HOSE, BRAKE
|
1 | |
| 33 |
90464-07003
.CLAMP
|
1 | |
| 34 |
90110-06149
.BOLT, HEXAGON SOCKET HEAD
|
1 | |
| 35 |
92907-06600
.WASHER, PLATE
|
1 |
2.98 AED
Check price & stock on WhatsApp
|
| 36 |
90401-10020
BOLT, UNION
|
3 | |
| 37 |
90430-10005
GASKET
|
6 |
2.86 AED
Check price & stock on WhatsApp
|
| 38 |
3P6-25875-10
HOLDER, BRAKE HOSE 1
|
1 | |
| 39 |
92012-06010
BOLT, BUTTON HEAD
|
2 | |
| 40 |
3P6-2639F-00
HOLDER 2
|
1 | |
| 41 |
95022-06010
BOLT, FLANGE
|
1 | |
| 42 |
3P6-26393-00
HOLDER
|
1 | |
| 43 |
95022-06010
BOLT, FLANGE
|
1 |
