FJR1300AP

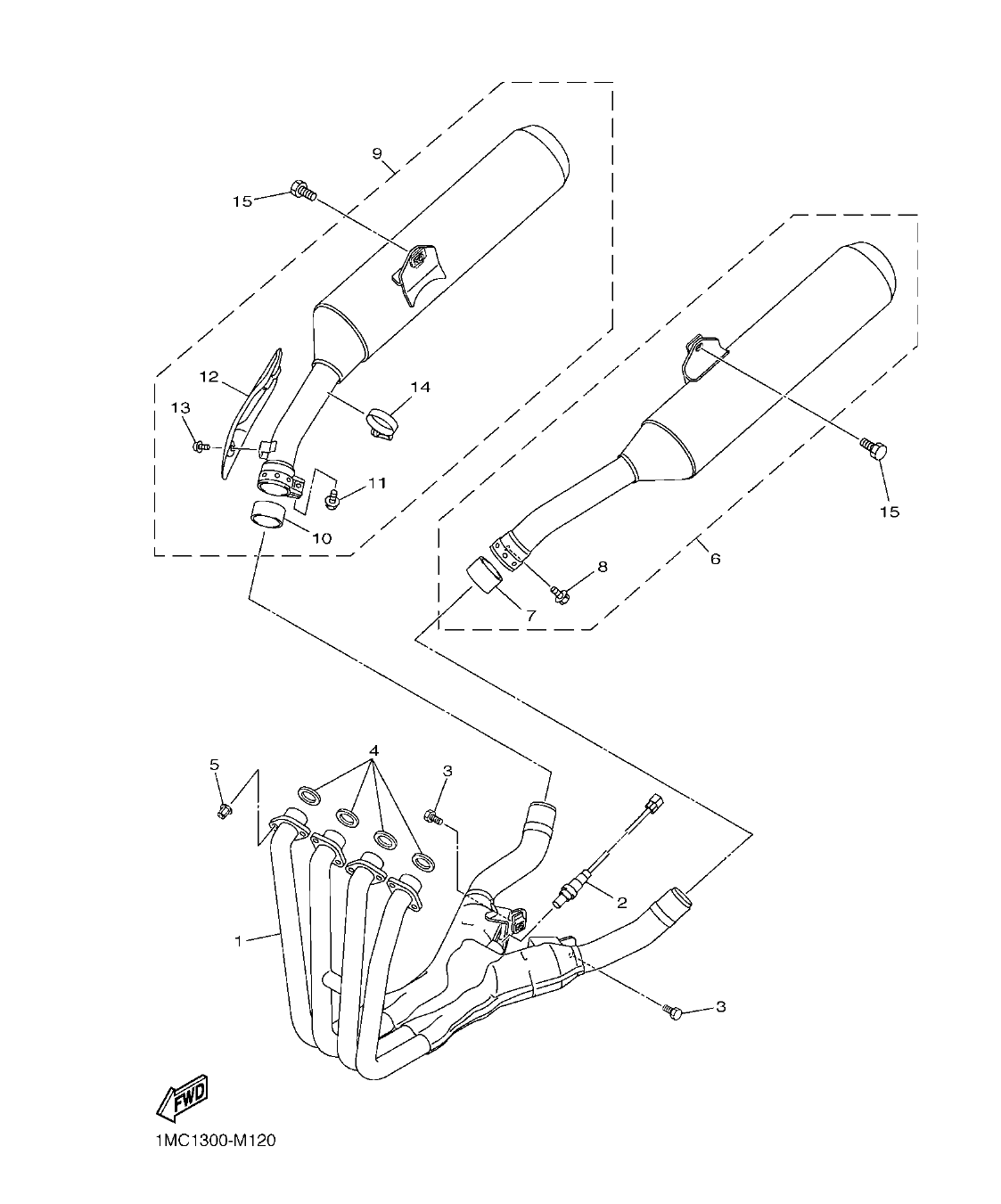

Section 12: EXHAUST (v2)
Model code: 2BC2
Parts list
Section 12
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
1MC-14602-00
EXHAUST PIPE COMP.
|
1 | |
| 2 |
4B5-8592A-00
SENSOR, OXYGEN
|
1 | |
| 3 |
90110-08099
BOLT, HEXAGON SOCKET HEAD
|
2 | |
| 4 |
4FM-14613-00
GASKET, EXHAUST PIPE
|
4 | |
| 5 |
90179-08673
NUT
|
8 | |
| 6 |
1MC-14710-00
MUFFLER ASSY 1
|
1 | |
| 7 |
3XW-14714-00
.GASKET, MUFFLER
|
1 |
32.03 AED
Check price & stock on WhatsApp
|
| 8 |
95814-08040
.BOLT, FLANGE
|
1 | |
| 9 |
1MC-14720-00
MUFFLER ASSY 2
|
1 | |
| 10 |
3XW-14714-00
.GASKET, MUFFLER
|
1 |
32.03 AED
Check price & stock on WhatsApp
|
| 11 |
95814-08040
.BOLT, FLANGE
|
1 | |
| 12 |
1MC-1471C-00
.PROTECTOR ASSY 1
|
1 | |
| 13 |
90111-06060
.BOLT,HEX. SOCKET BUTTON
|
1 | |
| 14 |
90450-45001
.HOSE CLAMP ASSY
|
1 | |
| 15 |
95814-10040
BOLT, FLANGE
|
2 |
