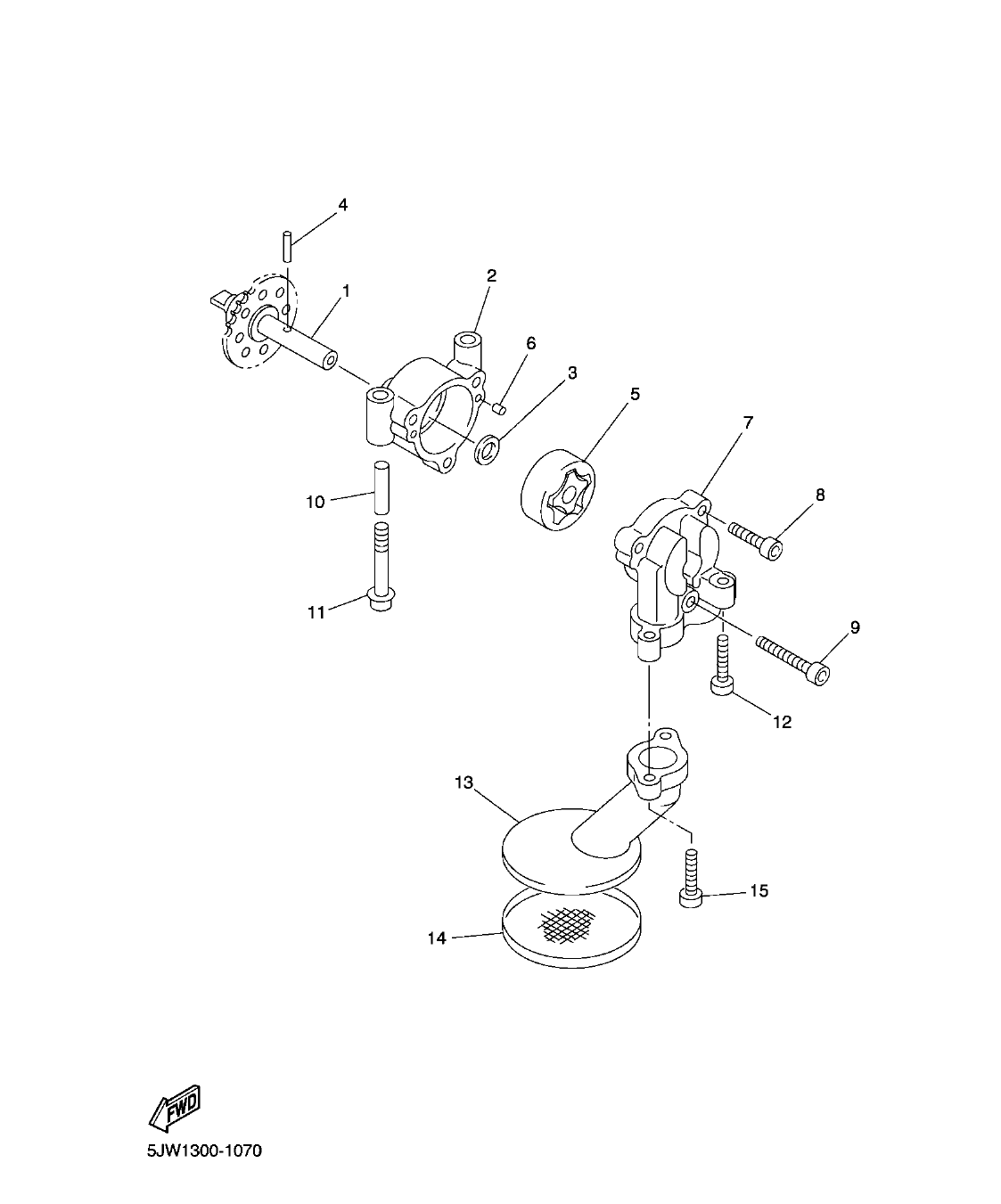

FJR1300AP
Section 7: OIL PUMP (v2)
Model code: 2BC2
Parts list
Section 7
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
5JW-13330-00
PUMP SHAFT ASSY
|
1 | |
| 2 |
5JW-13316-00
COVER, PUMP
|
1 | |
| 3 |
90201-113K2
WASHER, PLATE
|
1 | |
| 4 |
93603-17070
PIN, DOWEL
|
1 | |
| 5 |
5JW-13310-00
ROTOR ASSY 1
|
1 | |
| 6 |
93603-09106
PIN, DOWEL
|
2 | |
| 7 |
5JW-13336-00
HOUSING, ROTOR
|
1 | |
| 8 |
91312-06025
BOLT
|
2 | |
| 9 |
91312-06040
BOLT
|
1 | |
| 10 |
91808-30031
PIN, DOWEL
|
2 | |
| 11 |
90110-06167
BOLT, HEXAGON SOCKET HEAD
|
2 | |
| 12 |
90110-06169
BOLT, HEXAGON SOCKET HEAD
|
1 | |
| 13 |
5JW-13412-00
HOUSING, STRAINER
|
1 | |
| 14 |
5JW-13411-00
STRAINER, OIL
|
1 | |
| 15 |
90110-06174
BOLT, HEXAGON SOCKET HEAD
|
2 |
