FJR1300AP

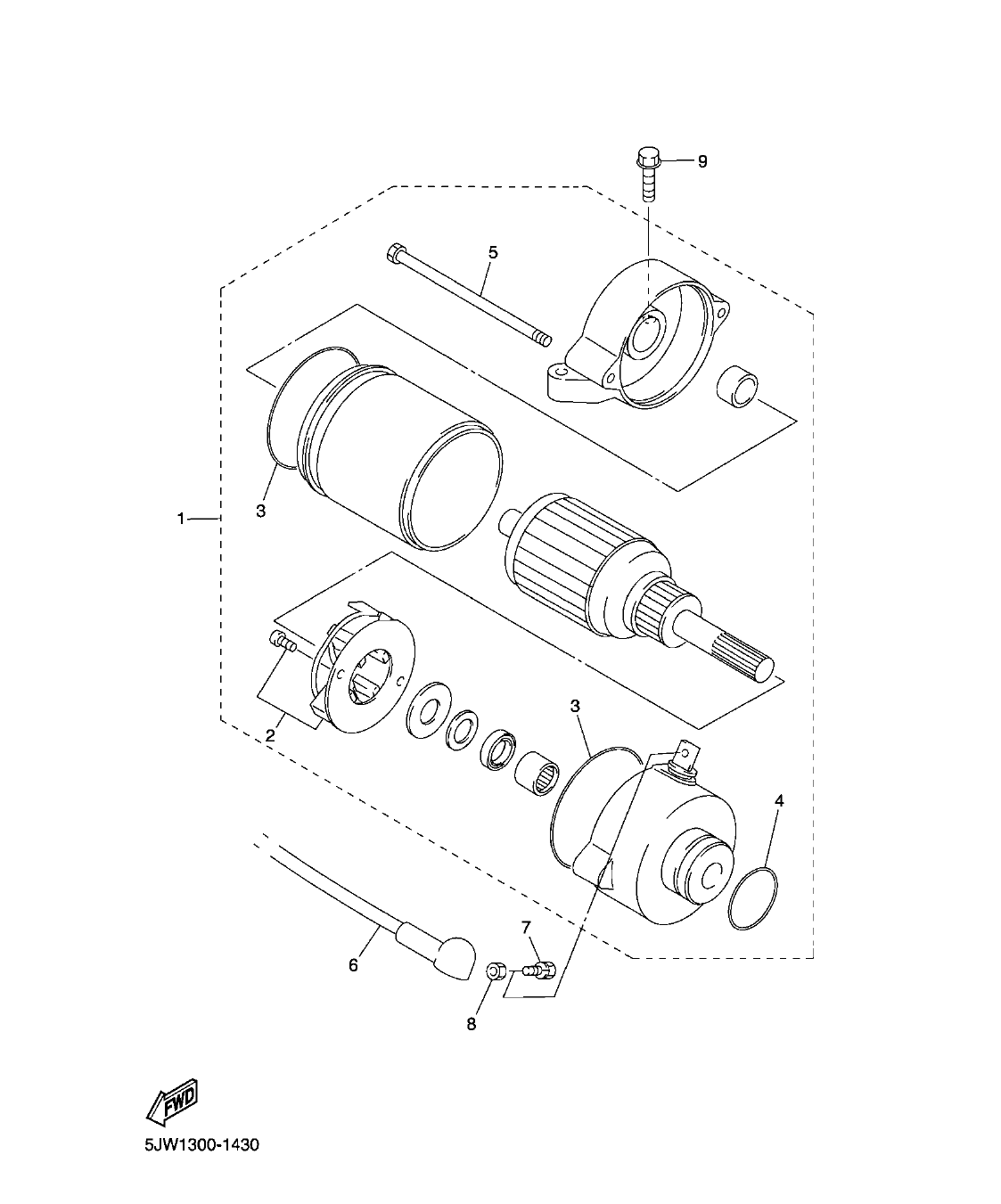

Section 43: STARTING MOTOR (v2)
Model code: 2BC2
Parts list
Section 43
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
1MC-81890-00
MOTOR ASSY
|
1 | |
| 2 |
1MC-81801-00
.BRUSH SET
|
1 | |
| 3 |
93210-55669
.O-RING
|
2 | |
| 4 |
93210-25711
.O-RING
|
1 |
6.70 AED
Check price & stock on WhatsApp
|
| 5 |
5JW-81846-01
.SCREW
|
2 | |
| 6 |
1MC-8183G-00
CORD COMP.
|
1 | |
| 7 |
3P6-81828-00
SCREW 2
|
1 | |
| 8 |
95302-05700
NUT
|
1 | |
| 9 |
91312-06025
BOLT
|
2 |
