FJR1300AP

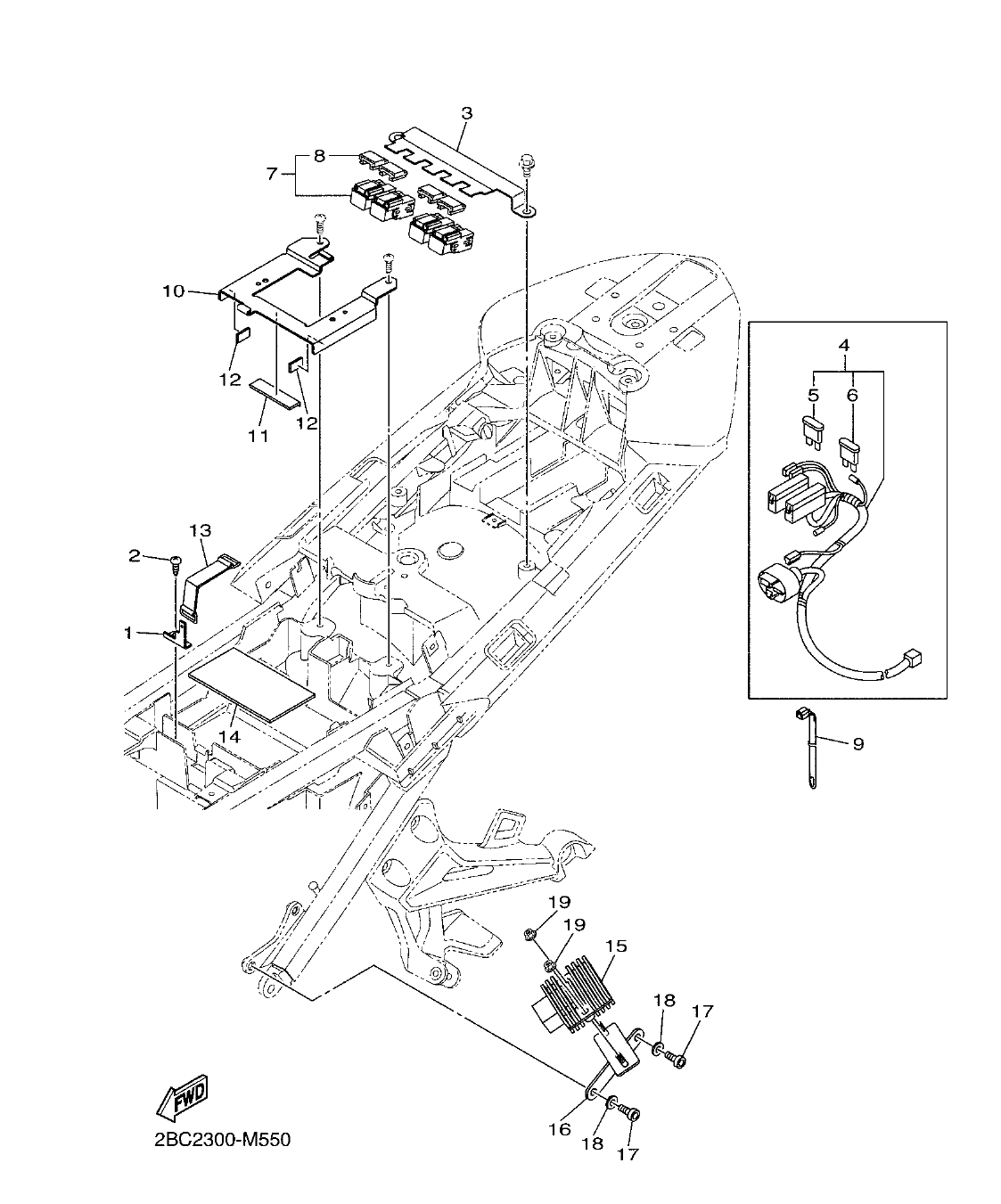

Section 55: ALTERNATE 6 FOR CHASSIS (v2)
Model code: 2BC2
Parts list
Section 55
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
5P5-22562-10
STAY, FUSE
AP
|
1 | |
| 2 |
97702-60020
SCREW, TAPPING
AP
|
1 | |
| 3 |
5P5-2253B-00
STAY, RELAY
AP
|
1 | |
| 4 |
2BC-82507-00
WIRE, LEAD
AP
|
1 | |
| 5 |
5JJ-82151-30
.FUSE (10A-BL)
|
4 | |
| 6 |
5JJ-82151-60
.FUSE (30A-BL)
|
2 | |
| 7 |
5EA-81950-20
RELAY ASSY (5EA-02)
AP
|
4 | |
| 8 |
5EA-81952-00
.HOLDER, RELAY
|
1 | |
| 9 |
90464-25004
CLAMP
AP
|
1 | |
| 10 |
5P5-2199G-00
BRACKET, BATTERY
AP
|
1 | |
| 11 |
5P5-21778-00
DAMPER, LOCATING 1
AP
|
1 | |
| 12 |
5P5-21779-00
DAMPER, LOCATING 2
AP
|
2 | |
| 13 |
116-82131-00
BAND, BATTERY
AP
|
1 | |
| 14 |
5P5-2177M-00
DAMPER, LOCATING 3
AP
|
1 | |
| 15 |
5P5-81970-00
RECTIFIER ASSY
AP
|
1 | |
| 16 |
5P5-21287-00
BRACKET, REGULATOR
AP
|
1 | |
| 17 |
91317-08016
BOLT
AP
|
2 | |
| 18 |
92907-08600
WASHER, PLATE
AP
|
2 | |
| 19 |
95707-06500
NUT, FLANGE
AP
|
2 |
