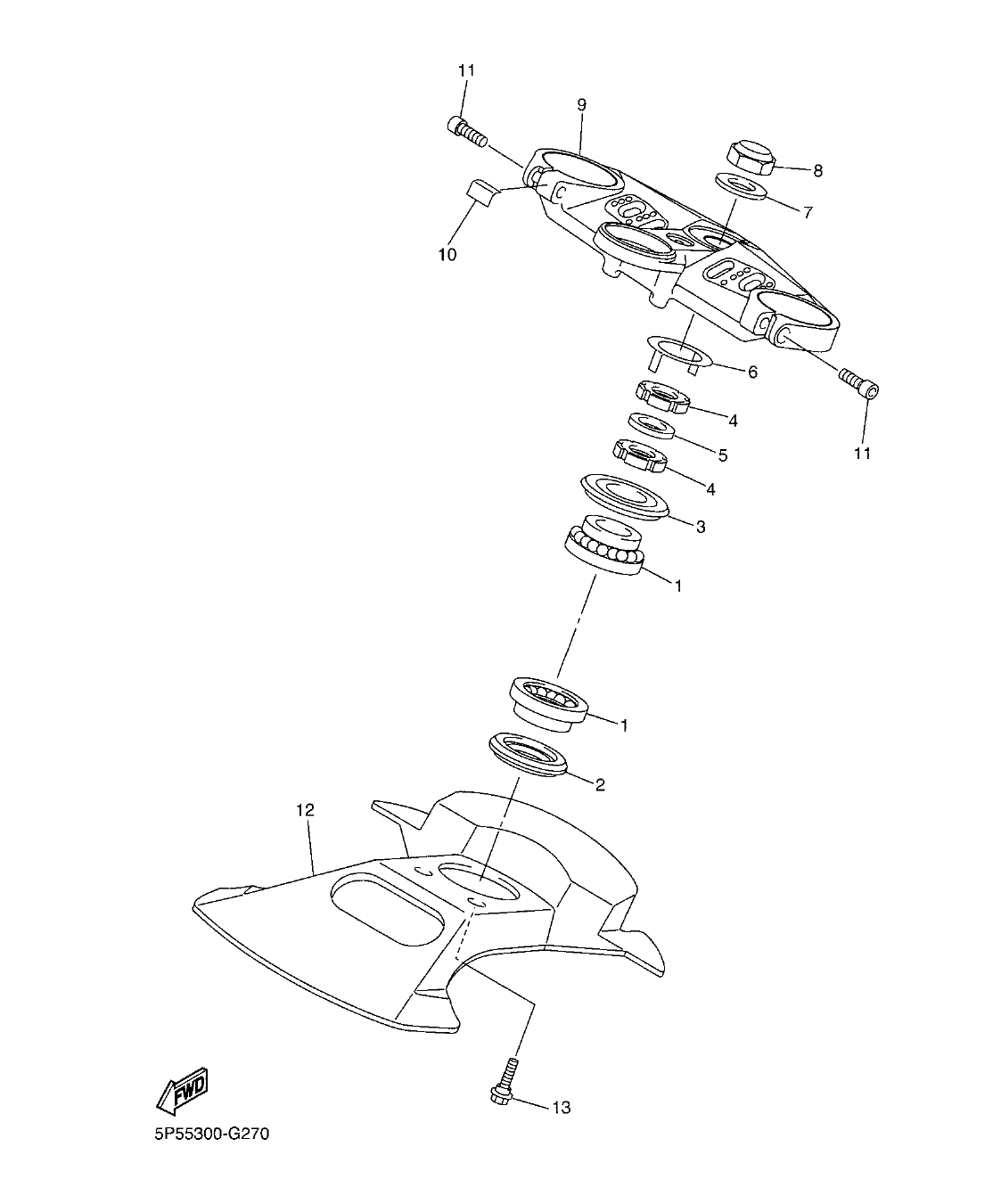

FJR1300AP
Section 27: STEERING (v2)
Model code: 2BC2
Parts list
Section 27
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
93399-99932
BEARING
|
2 | |
| 2 |
3FV-23462-00
SEAL, STEERING
|
1 | |
| 3 |
4XV-23415-01
COVER, BALL RACE 1
|
1 | |
| 4 |
90179-30691
NUT
|
2 | |
| 5 |
90202-30235
WASHER, PLATE
|
1 | |
| 6 |
4XV-23418-00
WASHER, SPECIAL
|
1 | |
| 7 |
90201-28017
WASHER, PLATE
|
1 | |
| 8 |
90179-28002
NUT
|
1 | |
| 9 |
3P6-23435-10
CROWN, HANDLE
|
1 | |
| 10 |
5JW-23844-00
SEAL
|
1 | |
| 11 |
91312-08030
BOLT
|
2 | |
| 12 |
5VS-23818-00
COVER, STEERING
|
1 | |
| 13 |
90109-06172
BOLT
|
2 |
