FJR1300AP

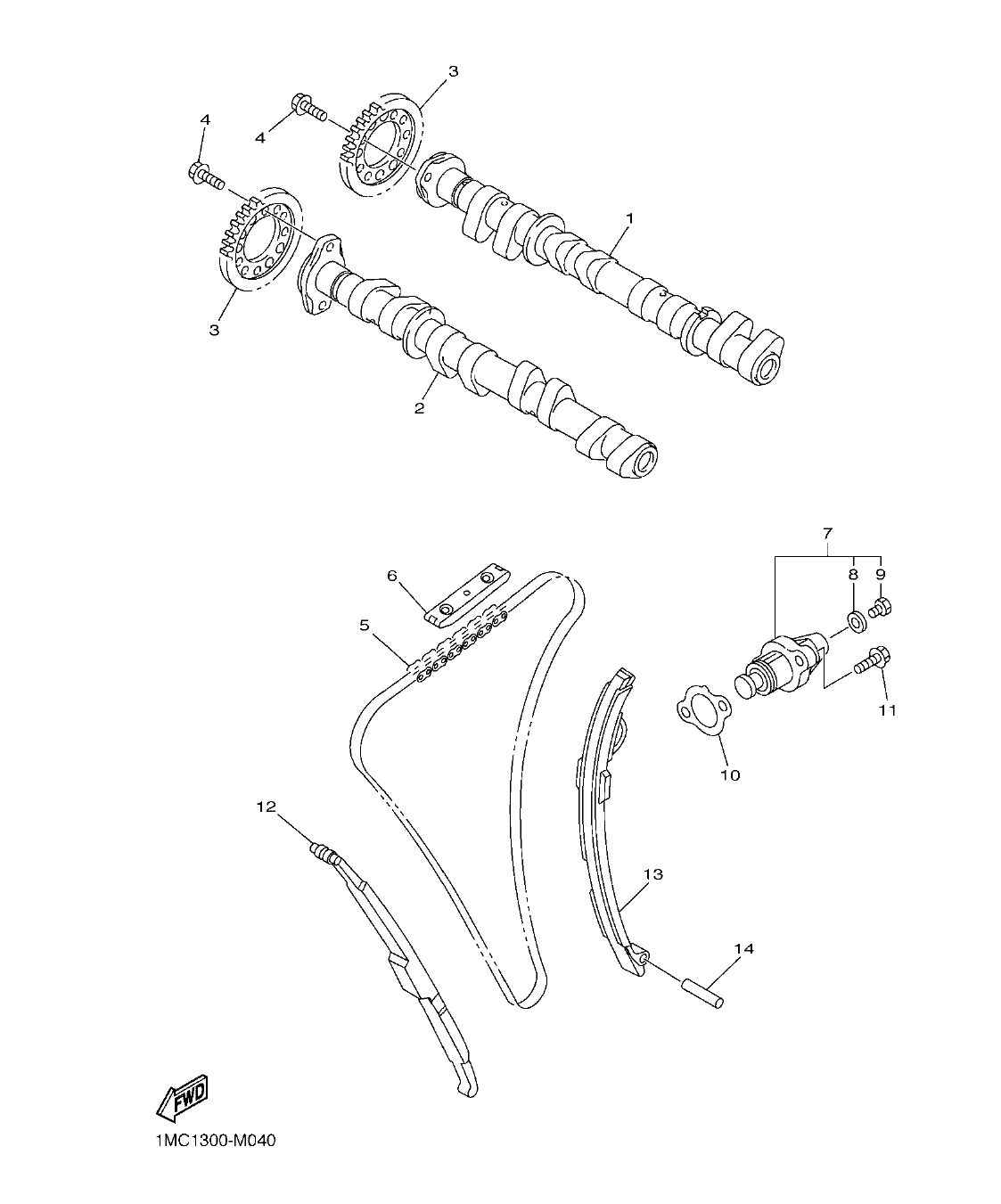

Section 4: CAMSHAFT & CHAIN (v2)
Model code: 2BC2
Parts list
Section 4
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
1MC-12171-00
CAMSHAFT 1
|
1 | |
| 2 |
1MC-12181-00
CAMSHAFT 2
|
1 | |
| 3 |
5JW-12176-10
SPROCKET, CAM CHAIN
|
2 | |
| 4 |
90105-07004
BOLT, FLANGE
|
4 | |
| 5 |
94591-73136
CHAIN
|
1 | |
| 6 |
5BE-12241-00
GUIDE, STOPPER 2
|
1 | |
| 7 |
1MC-12210-00
TENSIONER ASSY, CAM CHAIN
|
1 | |
| 8 |
5SL-12214-00
.GASKET
|
1 |
3.72 AED
Check price & stock on WhatsApp
|
| 9 |
5EL-12228-00
.BOLT
|
1 | |
| 10 |
5JW-12213-00
GASKET, TENSIONER CASE
|
1 | |
| 11 |
95022-06025
BOLT, FLANGE
|
2 | |
| 12 |
5JW-12251-00
DAMPER, CHAIN 1
|
1 | |
| 13 |
5JW-12252-00
DAMPER, CHAIN 2
|
1 | |
| 14 |
93607-44002
PIN, DOWEL
|
1 |
