FJR1300AP
Section 45: HEADLIGHT (v2)
Model code: 2BC2

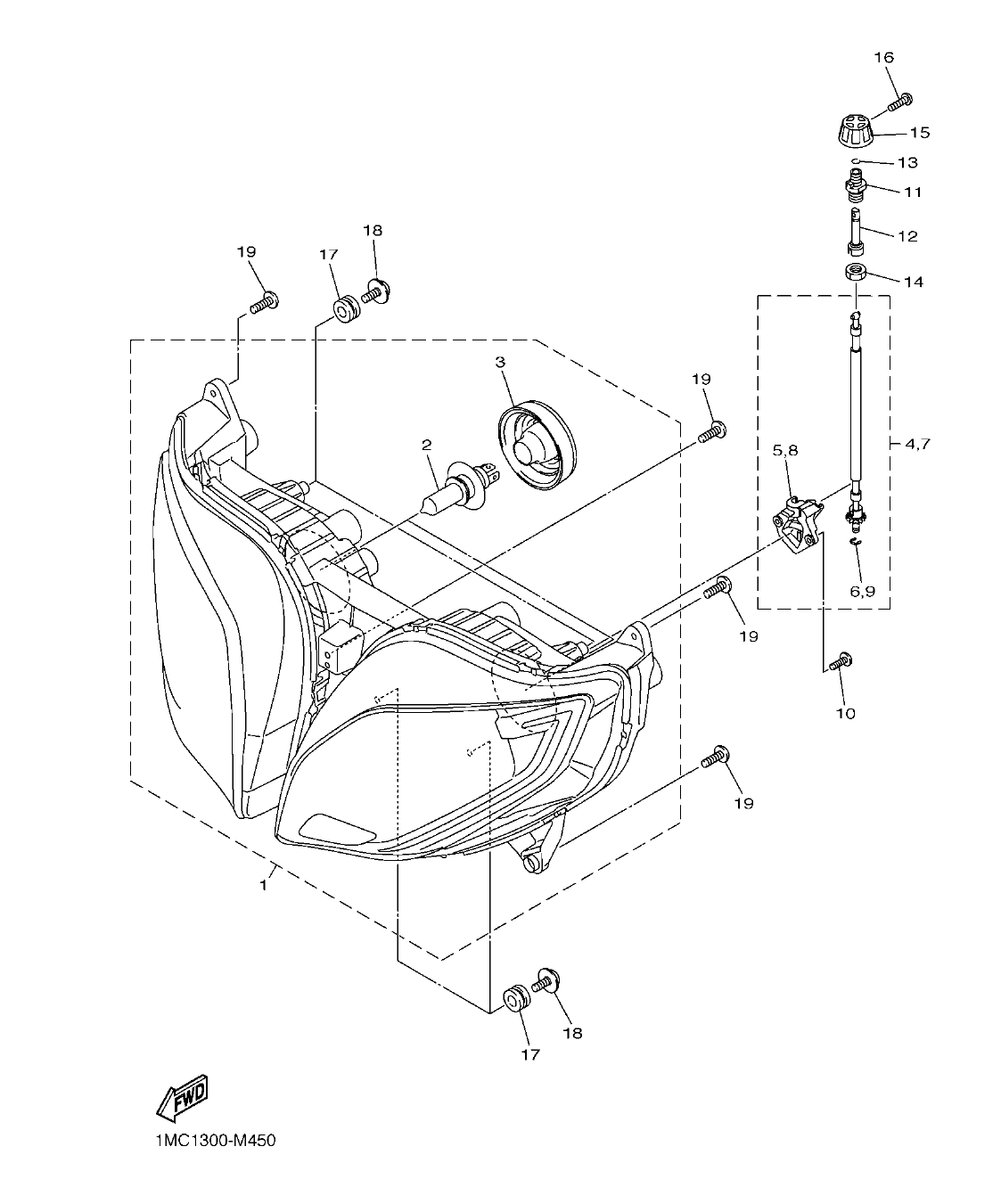

Parts list
Section 45
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
1MC-84300-00
HEADLIGHT ASSY
|
1 | |
| 2 |
8G9-84314-00
.BULB (12V-60/55W)
(H4)HALOGEN
|
2 | |
| 3 |
5LV-84397-00
.COVER, SOCKET
|
2 | |
| 4 |
1MC-8A3V1-00
GEAR MODULE 1
LH
|
1 | |
| 5 |
1MC-84544-00
.COVER
LH
|
1 | |
| 6 |
93430-04M03
.CIRCLIP
LH
|
1 | |
| 7 |
1MC-8A3V2-00
GEAR MODULE 2
RH
|
1 | |
| 8 |
1MC-84797-00
.COVER
RH
|
1 | |
| 9 |
93430-04M03
.CIRCLIP
RH
|
1 | |
| 10 |
97902-40016
SCREW, WITH WASHER
|
4 | |
| 11 |
3P6-8431U-00
HOLDER
|
2 | |
| 12 |
1MC-84387-00
HOLDER
|
2 | |
| 13 |
93440-06190
CIRCLIP
|
2 | |
| 14 |
90170-12407
NUT
|
2 | |
| 15 |
3P6-8432N-00
KNOB
|
2 | |
| 16 |
98507-03010
SCREW, PAN HEAD
|
2 | |
| 17 |
4XV-83513-00
DAMPER
|
4 | |
| 18 |
90164-05001
SCREW, TAPPING
|
4 | |
| 19 |
97702-50016
SCREW, TAPPING
|
5 |
