FJR1300AP

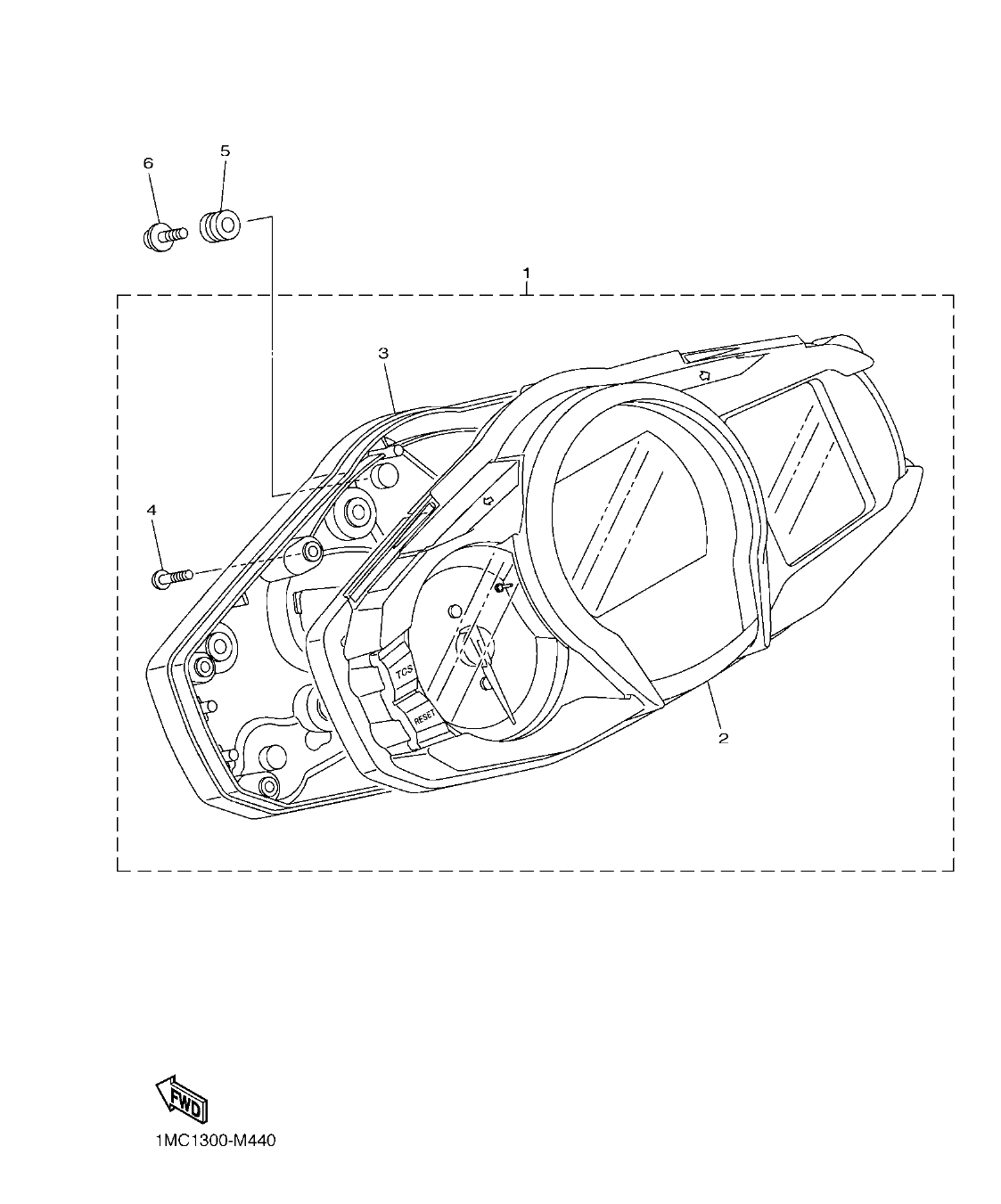

Section 44: METER (v2)
Model code: 2BC2
Parts list
Section 44
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
1MC-83500-00
SPEEDOMETER ASSY (KM/H)
|
1 | |
| 1 |
1MC-83500-10
SPEEDOMETER ASSY (MPH)
FOR GBR
|
1 | |
| 2 |
1MC-8353E-00
.CASE, METER UPPER
|
1 | |
| 3 |
1MC-8353H-00
.CASE, UNDER
|
1 | |
| 4 |
4AS-83616-10
.SCREW, TAPPING
|
12 | |
| 5 |
4XV-83513-00
DAMPER
|
3 | |
| 6 |
90164-05001
SCREW, TAPPING
|
3 |
