F100BET
Section 20: BRACKET 2 (v2)
Engine sections in this catalog
SCHEDULED SERVICE PARTS
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
STARTING MOTOR
BOTTOM COWLING
CONTROL
BRACKET 1
TOP COWLING
BRACKET 2
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
CYLINDER & CRANKCASE 1
METER
OPTIONAL PARTS 1
OPTIONAL PARTS 2
REPAIR KIT 1
REPAIR KIT 2
REPAIR KIT 3
CRANKSHAFT & PISTON
CYLINDER & CRANKCASE 2
VALVE
INTAKE
CARBURETOR 1
CARBURETOR 2

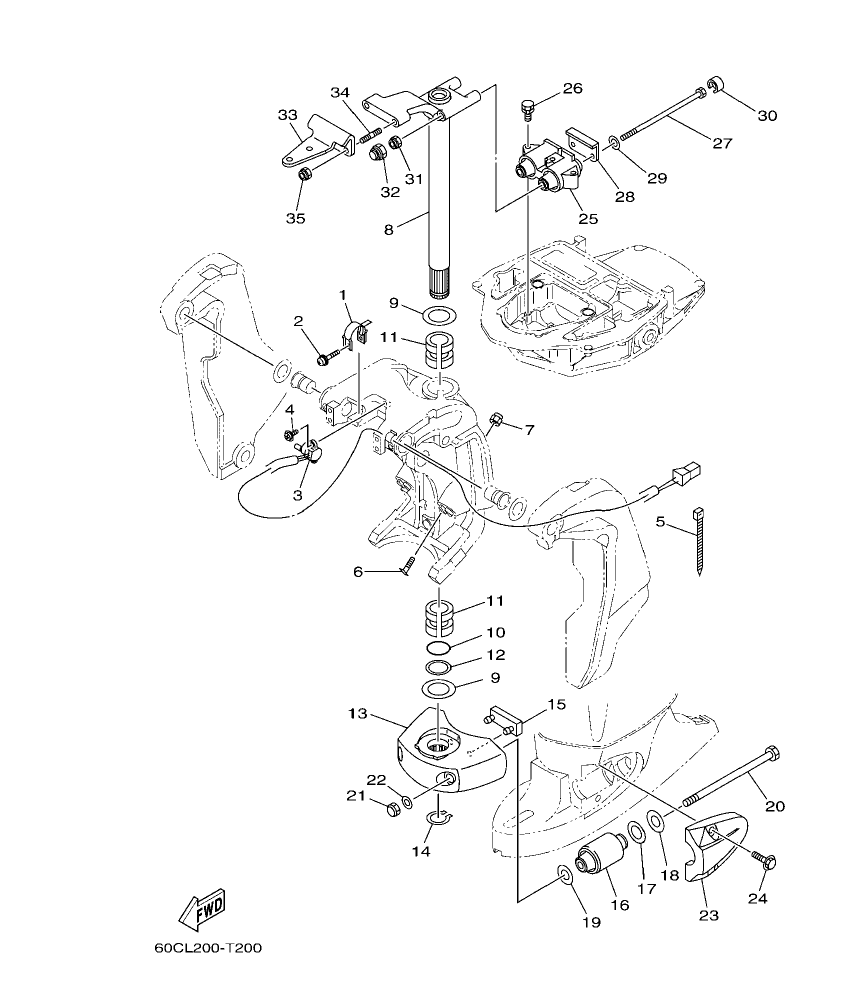

Diagram for section 20: BRACKET 2.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
64E–43139–11
CAM, TRIM SENDER
|
1 | Ask on WhatsApp |
| 2 |
90159–05059
SCREW, WITH WASHER
|
1 | Ask on WhatsApp |
| 3 |
67H–83672–02
TRIM SENDER
|
1 | Ask on WhatsApp |
| 4 |
97985–06216
SCREW, WITH WASHER
|
2 | Ask on WhatsApp |
| 5 |
90465–11M10
CLAMP
|
3 | Ask on WhatsApp |
| 6 |
61A–43376–00
BOLT, THRUST RECEIVER
|
2 | Ask on WhatsApp |
| 7 |
95780–10300
NUT, FLANGE
|
2 | Ask on WhatsApp |
| 8 |
68V–42510–11–8D
STEERING BRACKET ASSY
|
1 | Ask on WhatsApp |
| 9 |
90201–38M60
WASHER, PLATE
|
2 | Ask on WhatsApp |
| 10 |
93210–37MH7
O-RING
|
1 | Ask on WhatsApp |
| 11 |
90386–38M32
BUSH
|
2 | Ask on WhatsApp |
| 12 |
90202–40M47
WASHER, PLATE
|
1 | Ask on WhatsApp |
| 13 |
68V–44551–00–8D
HOUSING, LOWER MOUNT RUBBER 1
|
1 | Ask on WhatsApp |
| 14 |
93410–37M04
CIRCLIP
|
1 | Ask on WhatsApp |
| 15 |
61A–44575–01
DAMPER, LOWER MOUNT RUBBER
|
1 | Ask on WhatsApp |
| 16 |
61A–44555–01
MOUNT DAMPER, LOWER SIDE
|
2 | Ask on WhatsApp |
| 17 |
90202–32M19
WASHER, PLATE
|
2 | Ask on WhatsApp |
| 18 |
90201–16M55
WASHER, PLATE
|
2 | Ask on WhatsApp |
| 19 |
90201–15M58
WASHER, PLATE
|
2 | Ask on WhatsApp |
| 20 |
90109–14007
BOLT
|
2 | Ask on WhatsApp |
| 21 |
90176–14003
NUT, CROWN
|
2 | Ask on WhatsApp |
| 22 |
92995–14600
WASHER
|
2 | Ask on WhatsApp |
| 23 |
68V–44553–00–8D
COVER, LOWER MOUNT
|
2 | Ask on WhatsApp |
| 24 |
90119–10058
BOLT, WITH WASHER
|
4 | Ask on WhatsApp |
| 25 |
67F–44514–01
MOUNT DAMPER, UPPER SIDE
|
1 | Ask on WhatsApp |
| 26 |
90119–08091
BOLT, WITH WASHER
|
3 | Ask on WhatsApp |
| 27 |
90109–12007
|
2 | Ask on WhatsApp |
| 28 |
67F–44526–00
|
1 | Ask on WhatsApp |
| 29 |
90201–12M09
|
2 | Ask on WhatsApp |
| 30 |
67F–44533–00
|
2 | Ask on WhatsApp |
| 31 |
90185–12M12
|
2 | Ask on WhatsApp |
| 32 |
60H–44194–00
|
2 | Ask on WhatsApp |
| 33 |
68V–48511–01
|
1 | Ask on WhatsApp |
| 34 |
90116–10062
|
2 | Ask on WhatsApp |
| 35 |
90185–10027
|
2 | Ask on WhatsApp |
| 68 |
68V–42510–31–8D
STEERING BRACKET ASSY
|
1 | Ask on WhatsApp |
