F100BET – section 4 CRANKSHAFT & PISTON parts diagram

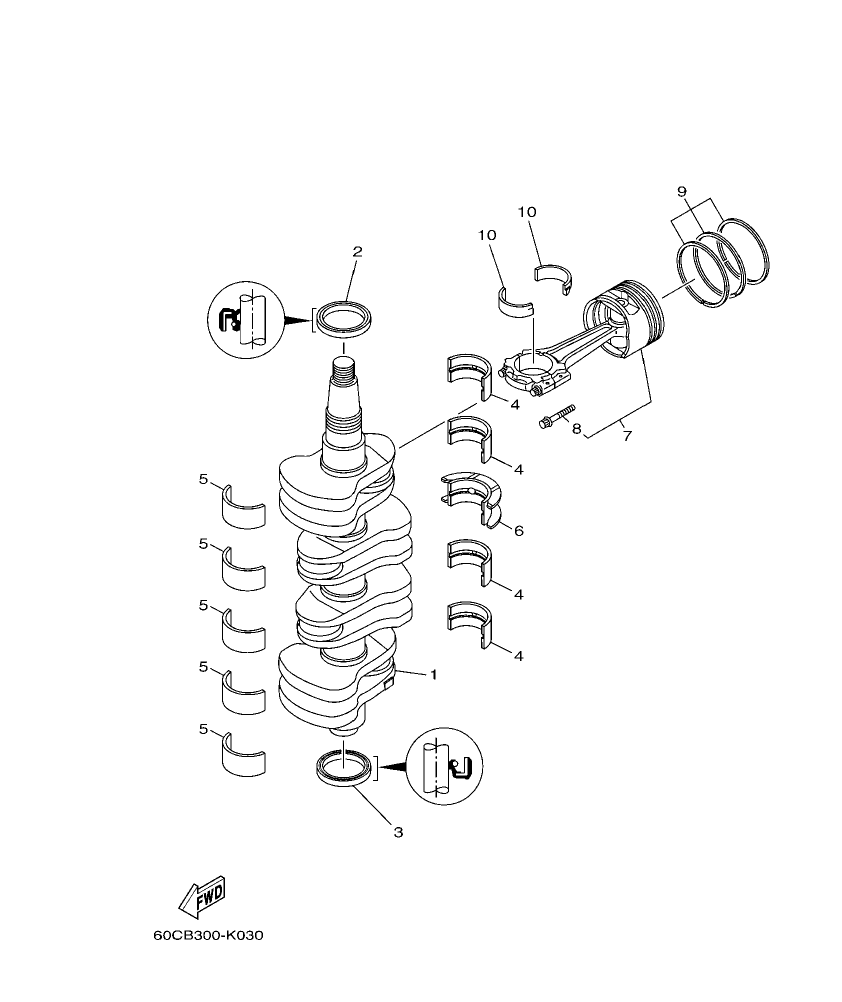

Diagram for section 4: CRANKSHAFT & PISTON.

Ref Part No. Qty Buy
1
6D8–11411–01
CRANKSHAFT
 1 Ask on WhatsApp
2
93102–48008
OIL SEAL
 1 Ask on WhatsApp
3
93101–48001
OIL SEAL
 1 Ask on WhatsApp
4
6D8–11416–00
PLANE BEARING, CRANKSHAFT 1
 4 Ask on WhatsApp
5
6D8–11417–00
PLANE BEARING, CRANKSHAFT 2
 5 Ask on WhatsApp
6
6D8–11416–10
PLANE BEARING, CRANKSHAFT 1
 4 Ask on WhatsApp
6
6D8–11416–20
PLANE BEARING, CRANKSHAFT 1
 4 Ask on WhatsApp
6
6D8–11417–10
PLANE BEARING, CRANKSHAFT 2
 5 Ask on WhatsApp
6
6D8–11417–20
PLANE BEARING, CRANKSHAFT 2
 5 Ask on WhatsApp
6
6D8–11417–30
PLANE BEARING, CRANKSHAFT 2
 5 Ask on WhatsApp
6
6D8–11418–00
PLANE BEARING, CRANKSHAFT 3
 1 Ask on WhatsApp
6
6D8–11418–10
PLANE BEARING, CRANKSHAFT 3
 1 Ask on WhatsApp
6
6D8–11418–20
PLANE BEARING, CRANKSHAFT 3
 1 Ask on WhatsApp
6
6D8–11656–10
PLANE BEARING, CONNECTING ROD
 8 Ask on WhatsApp
6
6D8–11656–20
PLANE BEARING, CONNECTING ROD
 8 Ask on WhatsApp
6
6D8–11656–30
PLANE BEARING, CONNECTING ROD
 8 Ask on WhatsApp
7
60C–W1164–20
PISTON/CON-ROD ASSY(STD)
 4 Ask on WhatsApp
8
K1C–A3275–00
.BOLT, CONNECTING ROD
 2 Ask on WhatsApp
9
60C–11603–11
PISTON RING SET (STD)
 4 Ask on WhatsApp
10
6D8–11656–00
PLANE BEARING, CONNECTING ROD
 8 Ask on WhatsApp
60
60C–11604–11
PISTON RING SET (0.25MM O/S)
 4 Ask on WhatsApp
60
60C–W1164–30
PISTON/CON-ROD ASSY(0.25MM OS)
 4 Ask on WhatsApp
