Section 16: STARTING MOTOR (v2)
Engine sections in this catalog
SCHEDULED SERVICE PARTS
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
STARTING MOTOR
BOTTOM COWLING
CONTROL
BRACKET 1
TOP COWLING
BRACKET 2
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
CYLINDER & CRANKCASE 1
METER
OPTIONAL PARTS 1
OPTIONAL PARTS 2
REPAIR KIT 1
REPAIR KIT 2
REPAIR KIT 3
CRANKSHAFT & PISTON
CYLINDER & CRANKCASE 2
VALVE
INTAKE
CARBURETOR 1
CARBURETOR 2

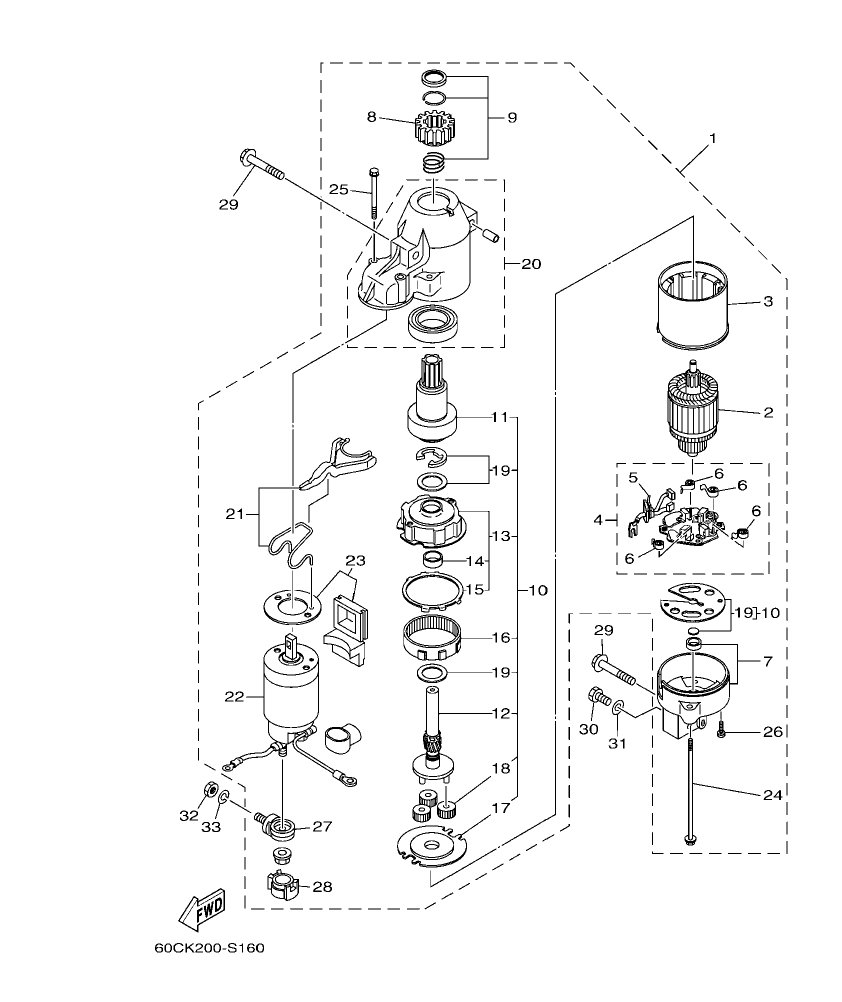

Diagram for section 16: STARTING MOTOR.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
67F–81800–04
STARTING MOTOR ASSY
|
1 | Ask on WhatsApp |
| 2 |
67F–81850–00
.ARMATURE ASSY
|
1 | Ask on WhatsApp |
| 3 |
67F–81810–00
.STATOR ASSY
|
1 | Ask on WhatsApp |
| 4 |
69J–81840–11
.BRUSH HOLDER ASSY
|
1 | Ask on WhatsApp |
| 5 |
69J–81801–11
..BRUSH SET
|
1 | Ask on WhatsApp |
| 6 |
67F–81813–00
..SPRING, BRUSH
|
4 | Ask on WhatsApp |
| 7 |
68F–81820–00
.REAR BRACKET ASSY
|
1 | Ask on WhatsApp |
| 8 |
67F–81808–00
.PINION ASSY
|
1 | Ask on WhatsApp |
| 9 |
67F–81857–00
.PINION STOPPER SET
|
1 | Ask on WhatsApp |
| 10 |
67F–81807–00
.GEAR ASSY, STARTING MOTOR
|
1 | Ask on WhatsApp |
| 11 |
67F–81832–00
..CLUTCH, OVER RUN
|
1 | Ask on WhatsApp |
| 12 |
67F–81836–00
..SHAFT, PINION
|
1 | Ask on WhatsApp |
| 13 |
67F–81821–00
..BRACKET, CENTER 1
|
1 | Ask on WhatsApp |
| 14 |
67F–81841–00
...BEARING
|
1 | Ask on WhatsApp |
| 15 |
67F–8183R–00
...GASKET
|
1 | Ask on WhatsApp |
| 16 |
67F–81891–00
..GEAR, RING
|
1 | Ask on WhatsApp |
| 17 |
67F–81830–00
..BRACKET, CENTER 2
|
1 | Ask on WhatsApp |
| 18 |
60V–8183T–00
..GEAR, IDLER
|
3 | Ask on WhatsApp |
| 19 |
67F–81809–00
..WASHER KIT
|
1 | Ask on WhatsApp |
| 20 |
60X–81842–00
.COVER
|
1 | Ask on WhatsApp |
| 21 |
6C5–81839–00
.LEVER ASSY
|
1 | Ask on WhatsApp |
| 22 |
67F–81941–02
.STARTER RELAY ASSY
|
1 | Ask on WhatsApp |
| 23 |
6C5–81869–00
.COVER, DUST
|
1 | Ask on WhatsApp |
| 24 |
6K7–81826–11
.BOLT
|
2 | Ask on WhatsApp |
| 25 |
69J–81828–00
.BOLT 2
|
2 | Ask on WhatsApp |
| 26 |
67F–81846–00
.SCREW
|
2 | Ask on WhatsApp |
| 27 |
60V–81925–00
.TERMINAL
|
1 | Ask on WhatsApp |
| 28 |
68F–82582–00
|
1 | Ask on WhatsApp |
| 29 |
97513–08545
|
3 | Ask on WhatsApp |
| 30 |
97013–08016
|
1 | Ask on WhatsApp |
| 31 |
92903–08600
|
1 | Ask on WhatsApp |
| 32 |
95333–08600
|
1 | Ask on WhatsApp |
| 33 |
92903–08100
|
1 | Ask on WhatsApp |
