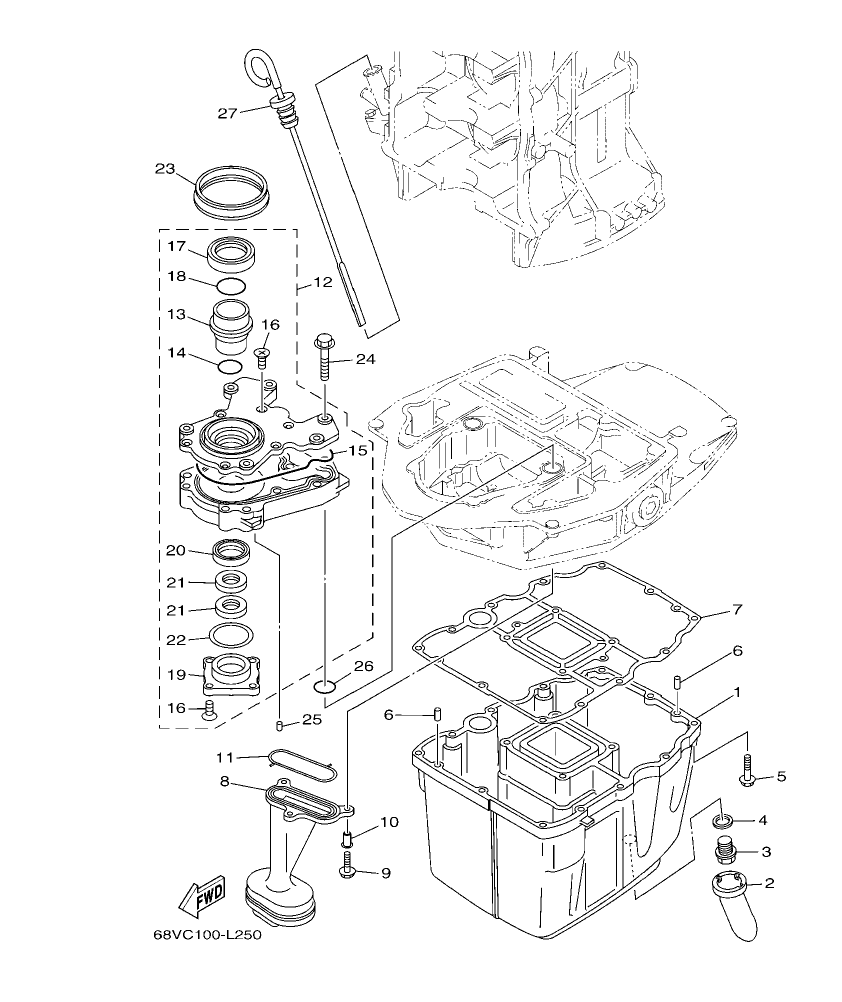

Diagram for section 24: OIL PAN.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
68V–15311–00–CA
|
1 | Ask on WhatsApp |
| 2 |
63P–15316–01
|
1 | Ask on WhatsApp |
| 3 |
90340–14M06
|
1 | Ask on WhatsApp |
| 4 |
90430–14M09
|
1 | Ask on WhatsApp |
| 5 |
97E75–06525
|
12 | Ask on WhatsApp |
| 6 |
93606–12019
|
2 | Ask on WhatsApp |
| 7 |
68V–15312–00
|
1 | Ask on WhatsApp |
| 8 |
67F–13411–00
|
1 | Ask on WhatsApp |
| 9 |
95812–06025
|
3 | Ask on WhatsApp |
| 10 |
90387–06263
|
3 | Ask on WhatsApp |
| 11 |
67F–13415–00
|
1 | Ask on WhatsApp |
| 12 |
67F–13300–10
|
1 | Ask on WhatsApp |
| 13 |
67F–13314–02
|
1 | Ask on WhatsApp |
| 14 |
67F–13473–01
|
1 | Ask on WhatsApp |
| 15 |
67F–13329–00
|
1 | Ask on WhatsApp |
| 16 |
67F–13495–00
|
10 | Ask on WhatsApp |
| 17 |
67F–13119–01
|
1 | Ask on WhatsApp |
| 18 |
67F–13769–00
|
1 | Ask on WhatsApp |
| 19 |
67F–13914–00
|
1 | Ask on WhatsApp |
| 20 |
67F–13631–03
|
1 | Ask on WhatsApp |
| 21 |
67F–13149–00
|
2 | Ask on WhatsApp |
| 22 |
67F–13339–00
|
1 | Ask on WhatsApp |
| 23 |
67F–13338–00
|
1 | Ask on WhatsApp |
| 24 |
97E95–06545
|
6 | Ask on WhatsApp |
| 25 |
93604–12M07
|
2 | Ask on WhatsApp |
| 26 |
93210–19MJ1
|
2 | Ask on WhatsApp |
| 27 |
6D8–15362–00
|
1 | Ask on WhatsApp |
