F100BET
Section 7: INTAKE (v2)
Engine sections in this catalog
SCHEDULED SERVICE PARTS
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
STARTING MOTOR
BOTTOM COWLING
CONTROL
BRACKET 1
TOP COWLING
BRACKET 2
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
CYLINDER & CRANKCASE 1
METER
OPTIONAL PARTS 1
OPTIONAL PARTS 2
REPAIR KIT 1
REPAIR KIT 2
REPAIR KIT 3
CRANKSHAFT & PISTON
CYLINDER & CRANKCASE 2
VALVE
INTAKE
CARBURETOR 1
CARBURETOR 2

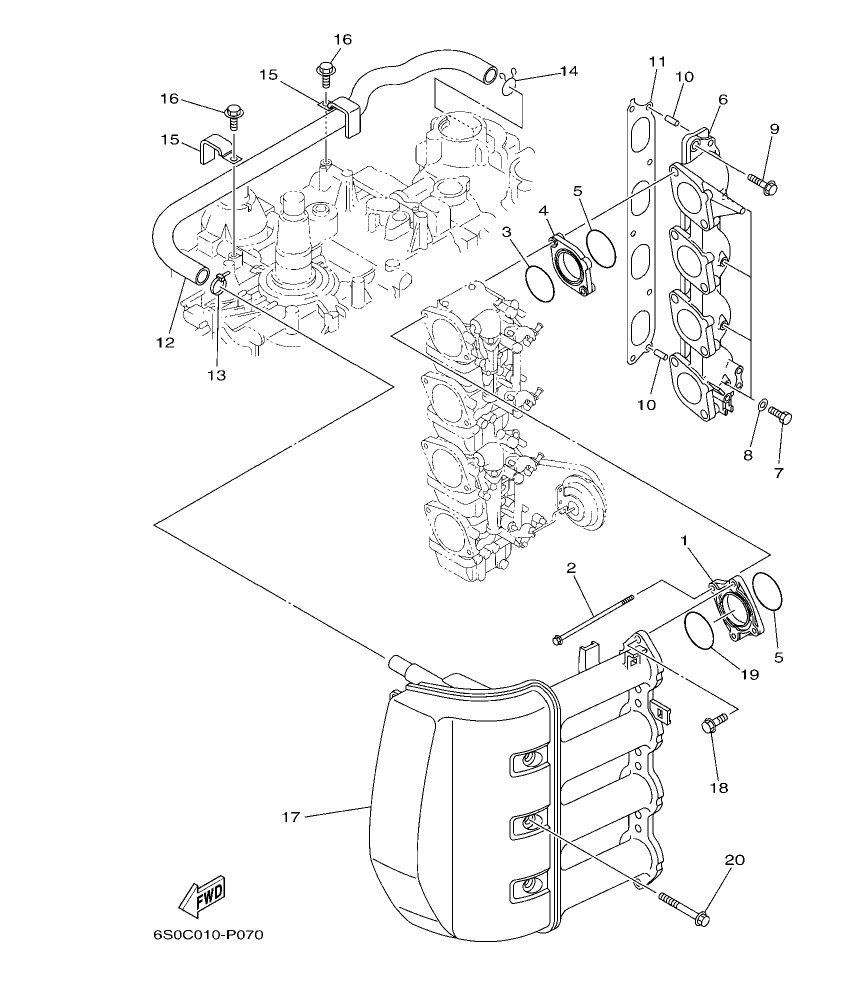

Diagram for section 7: INTAKE.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
67F–14243–00
|
4 | Ask on WhatsApp |
| 2 |
67F–14216–00
|
8 | Ask on WhatsApp |
| 3 |
67F–14239–00
|
4 | Ask on WhatsApp |
| 4 |
67F–14271–00
|
4 | Ask on WhatsApp |
| 5 |
93210–40M10
|
8 | Ask on WhatsApp |
| 6 |
67F–13641–00–94
|
1 | Ask on WhatsApp |
| 7 |
97D95–06010
|
4 | Ask on WhatsApp |
| 8 |
90430–06014
|
4 | Ask on WhatsApp |
| 9 |
97E75–08535
|
5 | Ask on WhatsApp |
| 10 |
91690–50014
|
2 | Ask on WhatsApp |
| 11 |
67F–13645–00
|
1 | Ask on WhatsApp |
| 12 |
67F–15373–00
|
1 | Ask on WhatsApp |
| 13 |
90465–11M59
|
1 | Ask on WhatsApp |
| 14 |
90467–20M15
|
1 | Ask on WhatsApp |
| 15 |
90465–12M03
|
2 | Ask on WhatsApp |
| 16 |
97E95–06512
|
2 | Ask on WhatsApp |
| 17 |
67F–14440–00
|
1 | Ask on WhatsApp |
| 18 |
90119–06283
|
8 | Ask on WhatsApp |
| 19 |
93210–41MJ2
|
4 | Ask on WhatsApp |
| 20 |
90119–08M59
|
3 | Ask on WhatsApp |
