F100BET

Section 31: OPTIONAL PARTS 1 (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 STARTING MOTOR BOTTOM COWLING CONTROL BRACKET 1 TOP COWLING BRACKET 2 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE REMOTE CONTROL BOX REMOTE CONTROL ASSY CYLINDER & CRANKCASE 1 METER OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 REPAIR KIT 2 REPAIR KIT 3 CRANKSHAFT & PISTON CYLINDER & CRANKCASE 2 VALVE INTAKE CARBURETOR 1 CARBURETOR 2

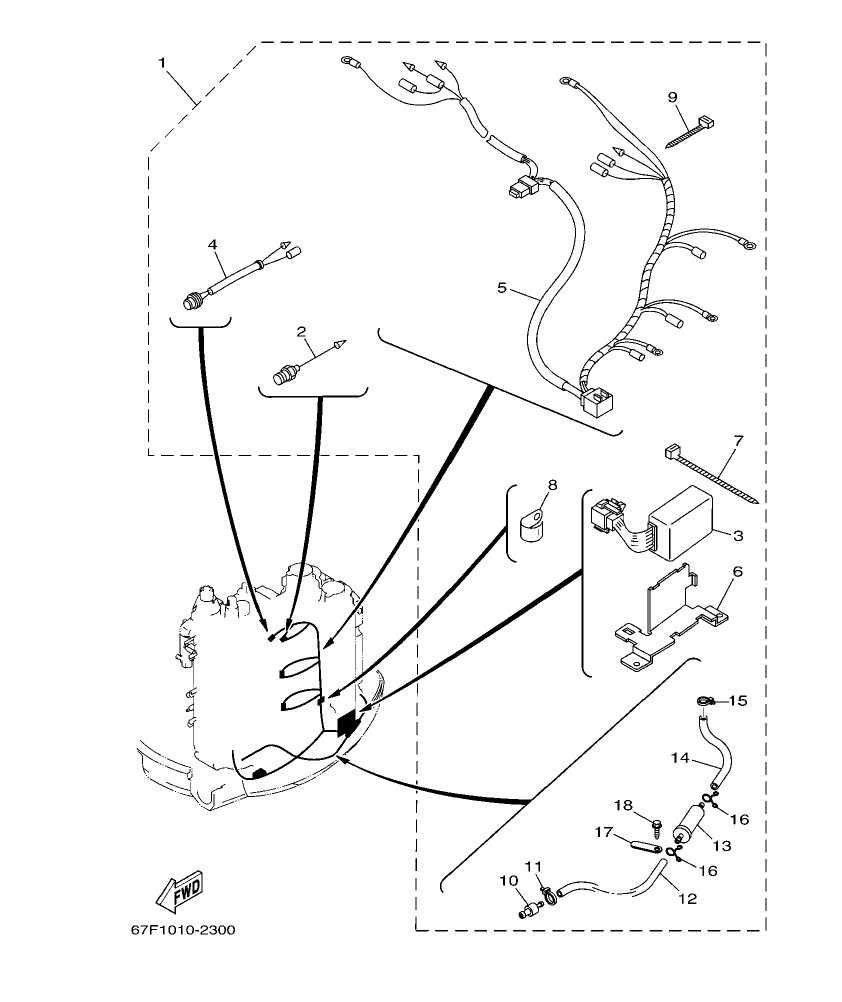

F100BET – section 31 OPTIONAL PARTS 1 parts diagram

Diagram for section 31: OPTIONAL PARTS 1.

Ref Part No. Qty Buy
1
67F–83790–12
HEATER ASSY
 1 Ask on WhatsApp
2
67F–83792–01
.HEATER
 4 Ask on WhatsApp
3
67F–81930–00
.CONTROL UNIT ASSY
 1 Ask on WhatsApp
4
67F–82560–00
.THERMO SWITCH ASSY
 1 Ask on WhatsApp
5
67F–81971–00
.WIRE, LEAD
 1 Ask on WhatsApp
6
67F–14291–00
.BRACKET 1
 1 Ask on WhatsApp
7
90465–13M60
.CLAMP
 3 Ask on WhatsApp
8
90465–08028
.CLAMP
 2 Ask on WhatsApp
9
90465–13M36
.CLAMP
 4 Ask on WhatsApp
10
67F–24377–00
.PIPE, JOINT 2
 1 Ask on WhatsApp
11
90465–11M10
.CLAMP
 1 Ask on WhatsApp
12
90445–11M49
.HOSE (L700)
 1 Ask on WhatsApp
13
67F–24251–02
.STRAINER 1
 1 Ask on WhatsApp
14
67F–2451B–00
.HOSE, FUEL INLET
 1 Ask on WhatsApp
15
90465–11M10
.CLAMP
 1 Ask on WhatsApp
16
90467–10M04
.CLIP
 2 Ask on WhatsApp
17
6E5–82588–00
.PLATE
 2 Ask on WhatsApp
18
90109–06M81
.BOLT
 2 Ask on WhatsApp
