F100BET
Section 15: ELECTRICAL 3 (v2)
Engine sections in this catalog
SCHEDULED SERVICE PARTS
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
STARTING MOTOR
BOTTOM COWLING
CONTROL
BRACKET 1
TOP COWLING
BRACKET 2
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
CYLINDER & CRANKCASE 1
METER
OPTIONAL PARTS 1
OPTIONAL PARTS 2
REPAIR KIT 1
REPAIR KIT 2
REPAIR KIT 3
CRANKSHAFT & PISTON
CYLINDER & CRANKCASE 2
VALVE
INTAKE
CARBURETOR 1
CARBURETOR 2

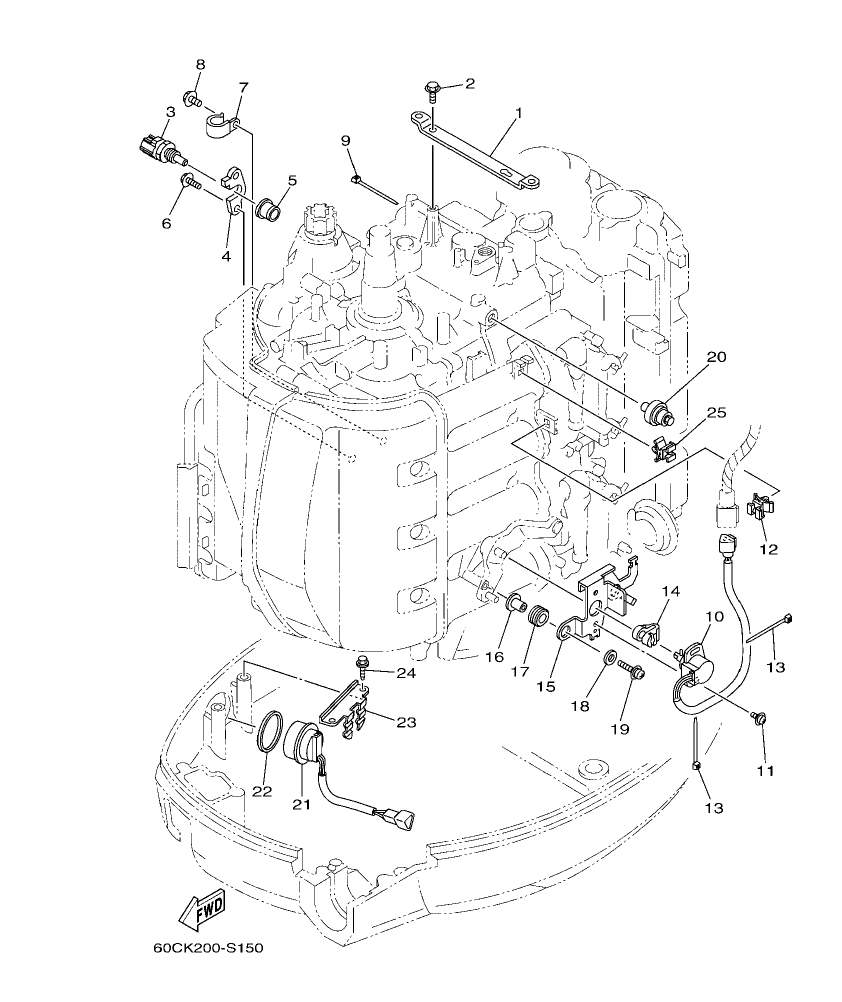

Diagram for section 15: ELECTRICAL 3.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
67F–8132G–01
|
1 | Ask on WhatsApp |
| 2 |
97E95–06516
|
2 | Ask on WhatsApp |
| 3 |
6D8–85790–00
|
1 | Ask on WhatsApp |
| 4 |
67F–85757–00
|
1 | Ask on WhatsApp |
| 5 |
68V–85753–01
|
1 | Ask on WhatsApp |
| 6 |
97E95–06516
|
2 | Ask on WhatsApp |
| 7 |
90465–06M86
|
1 | Ask on WhatsApp |
| 8 |
97E95–06512
|
1 | Ask on WhatsApp |
| 9 |
90465–11M10
|
1 | Ask on WhatsApp |
| 10 |
61A–85885–00
|
1 | Ask on WhatsApp |
| 11 |
97985–05210
|
2 | Ask on WhatsApp |
| 12 |
90464–09M47
|
1 | Ask on WhatsApp |
| 13 |
90465–11M10
|
2 | Ask on WhatsApp |
| 14 |
6K7–14573–00
|
1 | Ask on WhatsApp |
| 15 |
67F–83635–00
|
1 | Ask on WhatsApp |
| 16 |
90387–05M00
|
2 | Ask on WhatsApp |
| 17 |
90480–10M23
|
2 | Ask on WhatsApp |
| 18 |
90201–05M03
|
2 | Ask on WhatsApp |
| 19 |
97985–05325
|
2 | Ask on WhatsApp |
| 20 |
68V–82504–00
|
1 | Ask on WhatsApp |
| 21 |
63D–82563–11
|
1 | Ask on WhatsApp |
| 22 |
6E5–82587–01
|
1 | Ask on WhatsApp |
| 23 |
67F–83614–00
|
1 | Ask on WhatsApp |
| 24 |
90109–06M86
|
2 | Ask on WhatsApp |
| 25 |
90464–09M47
|
1 | Ask on WhatsApp |
