F100BET

Section 32: OPTIONAL PARTS 2 (v2)

Engine sections in this catalog

SCHEDULED SERVICE PARTS FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 STARTING MOTOR BOTTOM COWLING CONTROL BRACKET 1 TOP COWLING BRACKET 2 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE REMOTE CONTROL BOX REMOTE CONTROL ASSY CYLINDER & CRANKCASE 1 METER OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 REPAIR KIT 2 REPAIR KIT 3 CRANKSHAFT & PISTON CYLINDER & CRANKCASE 2 VALVE INTAKE CARBURETOR 1 CARBURETOR 2

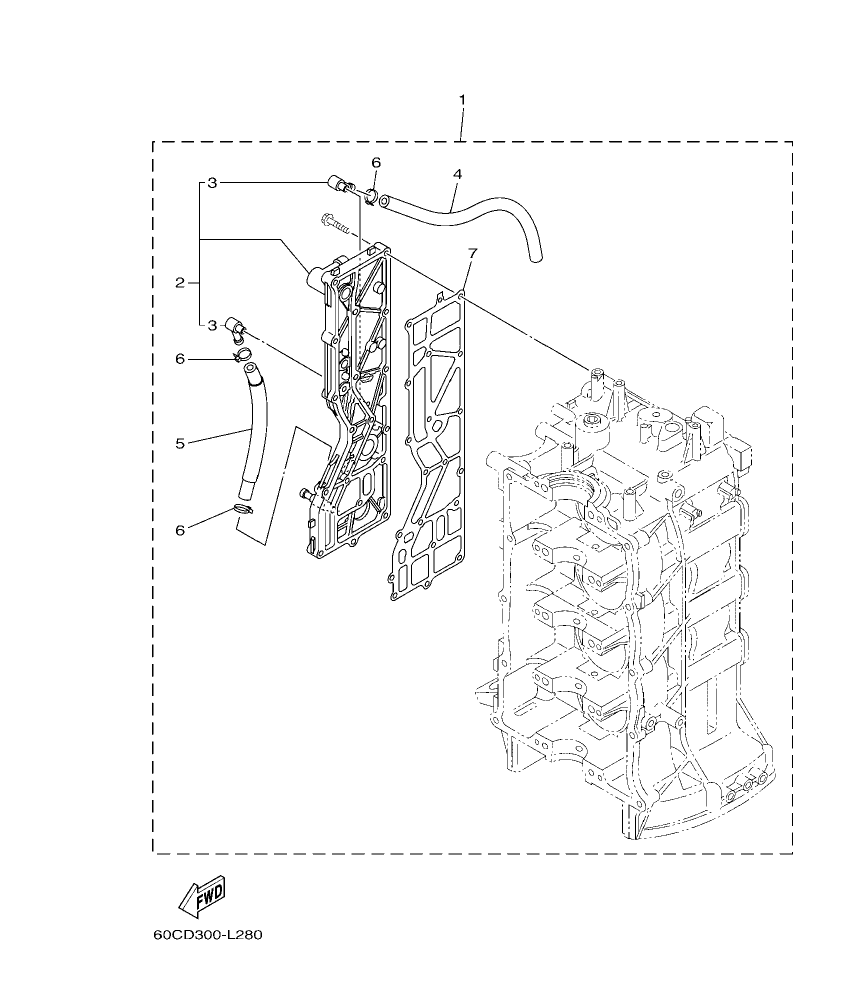

F100BET – section 32 OPTIONAL PARTS 2 parts diagram

Diagram for section 32: OPTIONAL PARTS 2.

Ref	Part No.	Description	Qty	Buy
1	60C–41190–10 ICE FREE KIT, PILOT WATER	ICE FREE KIT, PILOT WATER	1	Ask on WhatsApp
2	67F–41113–61–9S .OUTER COVER, EXHAUST	.OUTER COVER, EXHAUST	1	Ask on WhatsApp
3	676–11372–00 ..NIPPLE, HOSE	..NIPPLE, HOSE	2	Ask on WhatsApp
4	68V–42541–20 .PIPE 1	.PIPE 1	1	Ask on WhatsApp
5	60C–12484–00 .PIPE 4	.PIPE 4	1	Ask on WhatsApp
6	90465–11M10 .CLAMP	.CLAMP	3	Ask on WhatsApp
7	67F–41114–A2 .GASKET, EXHAUST OUTER COVER	.GASKET, EXHAUST OUTER COVER	1	Ask on WhatsApp
