Section 8: CARBURETOR 1 (v2)
Engine sections in this catalog
SCHEDULED SERVICE PARTS
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
STARTING MOTOR
BOTTOM COWLING
CONTROL
BRACKET 1
TOP COWLING
BRACKET 2
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
CYLINDER & CRANKCASE 1
METER
OPTIONAL PARTS 1
OPTIONAL PARTS 2
REPAIR KIT 1
REPAIR KIT 2
REPAIR KIT 3
CRANKSHAFT & PISTON
CYLINDER & CRANKCASE 2
VALVE
INTAKE
CARBURETOR 1
CARBURETOR 2

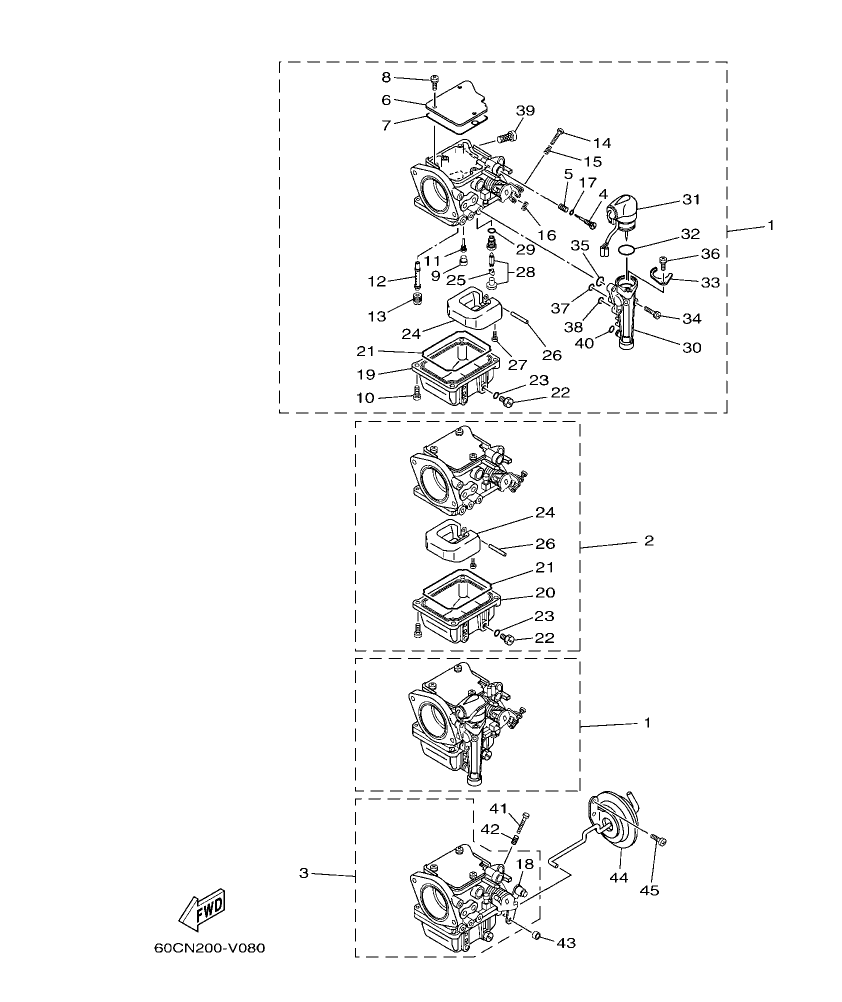

Diagram for section 8: CARBURETOR 1.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
60C–14901–04
CARBURETOR ASSY 1
|
2 | Ask on WhatsApp |
| 2 |
60C–14902–04
CARBURETOR ASSY 2
|
1 | Ask on WhatsApp |
| 3 |
60C–14904–04
CARBURETOR ASSY 4
|
1 | Ask on WhatsApp |
| 4 |
67F–14923–01
.SCREW, PILOT
|
4 | Ask on WhatsApp |
| 5 |
697–14555–00
.SPRING
|
4 | Ask on WhatsApp |
| 6 |
67F–14146–00
.PLATE
|
4 | Ask on WhatsApp |
| 7 |
67F–14147–00
.GASKET
|
4 | Ask on WhatsApp |
| 8 |
65L–14565–00
.SCREW
|
12 | Ask on WhatsApp |
| 9 |
679–14966–00
.RUBBER CAP
|
4 | Ask on WhatsApp |
| 10 |
97980–04114
.SCREW, WITH WASHER
|
16 | Ask on WhatsApp |
| 11 |
67F–14948–04
.JET (#42)
|
4 | Ask on WhatsApp |
| 12 |
67F–14947–00
.JET, NEEDLE
|
4 | Ask on WhatsApp |
| 13 |
67F–14943–83
.JET, MAIN (#128)
|
4 | Ask on WhatsApp |
| 14 |
67F–14567–00
.SCREW
|
3 | Ask on WhatsApp |
| 15 |
67F–14555–00
.SPRING
|
3 | Ask on WhatsApp |
| 16 |
67F–14556–00
.SPRING
|
3 | Ask on WhatsApp |
| 17 |
67F–14397–00
.O-RING
|
4 | Ask on WhatsApp |
| 18 |
6H2–14578–00
.COLLAR
|
1 | Ask on WhatsApp |
| 19 |
67F–14980–01
.BODY, FLOAT CHAMBER
|
2 | Ask on WhatsApp |
| 20 |
67F–14980–11
.BODY, FLOAT CHAMBER
|
2 | Ask on WhatsApp |
| 21 |
67F–14984–00
.GASKET, FLOAT CHAMBER
|
4 | Ask on WhatsApp |
| 22 |
6H3–14992–01
.SCREW, DRAIN
|
4 | Ask on WhatsApp |
| 23 |
93210–04230
.O-RING
|
4 | Ask on WhatsApp |
| 24 |
6H4–14985–01
.FLOAT
|
4 | Ask on WhatsApp |
| 25 |
67F–14159–00
.CLIP
|
4 | Ask on WhatsApp |
| 26 |
6H4–14548–00
.PIN, FLOAT ARM
|
4 | Ask on WhatsApp |
| 27 |
98580–04008
.SCREW, PAN HEAD
|
4 | Ask on WhatsApp |
| 28 |
6AH–14546–00
.VALVE, NEEDLE
|
4 | Ask on WhatsApp |
| 29 |
93210–04228
.O-RING
|
4 | Ask on WhatsApp |
| 30 |
67F–14378–01
.BODY, STARTER
|
2 | Ask on WhatsApp |
| 31 |
67F–14380–02
.PRIME STARTER ASSY
|
2 | Ask on WhatsApp |
| 32 |
5ML–E4854–00
.O-RING
|
2 | Ask on WhatsApp |
| 33 |
67F–14178–00
.PLATE, STARTER LEVER
|
2 | Ask on WhatsApp |
| 34 |
67F–14592–00
.SCREW
|
6 | Ask on WhatsApp |
| 35 |
67F–14398–00
.O-RING
|
2 | Ask on WhatsApp |
| 36 |
67F–14565–00
.SCREW
|
2 | Ask on WhatsApp |
| 37 |
67F–14398–10
.O-RING
|
2 | Ask on WhatsApp |
| 38 |
67F–14398–20
.O-RING
|
2 | Ask on WhatsApp |
| 39 |
67F–14371–01
.ELEMENT, FILTER
|
4 | Ask on WhatsApp |
| 40 |
67F–14398–30
.O-RING
|
2 | Ask on WhatsApp |
| 41 |
63V–14523–00
SCREW, STOP
|
1 | Ask on WhatsApp |
| 42 |
90501–10326
SPRING, COMPRESSION
|
1 | Ask on WhatsApp |
| 43 |
67F–14998–00
BUSH
|
1 | Ask on WhatsApp |
| 44 |
67F–14369–00
DIAPHRAGM ASSY 2
|
1 | Ask on WhatsApp |
| 45 |
67F–14325–00
SCREW, PAN HEAD
|
2 | Ask on WhatsApp |
