Section 11: FUEL 2 (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 STARTING MOTOR BOTTOM COWLING CONTROL BRACKET 1 TOP COWLING BRACKET 2 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE REMOTE CONTROL BOX REMOTE CONTROL ASSY CYLINDER & CRANKCASE 1 METER OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 REPAIR KIT 2 REPAIR KIT 3 CRANKSHAFT & PISTON CYLINDER & CRANKCASE 2 VALVE INTAKE CARBURETOR 1 CARBURETOR 2
F100BET – section 11 FUEL 2 parts diagram

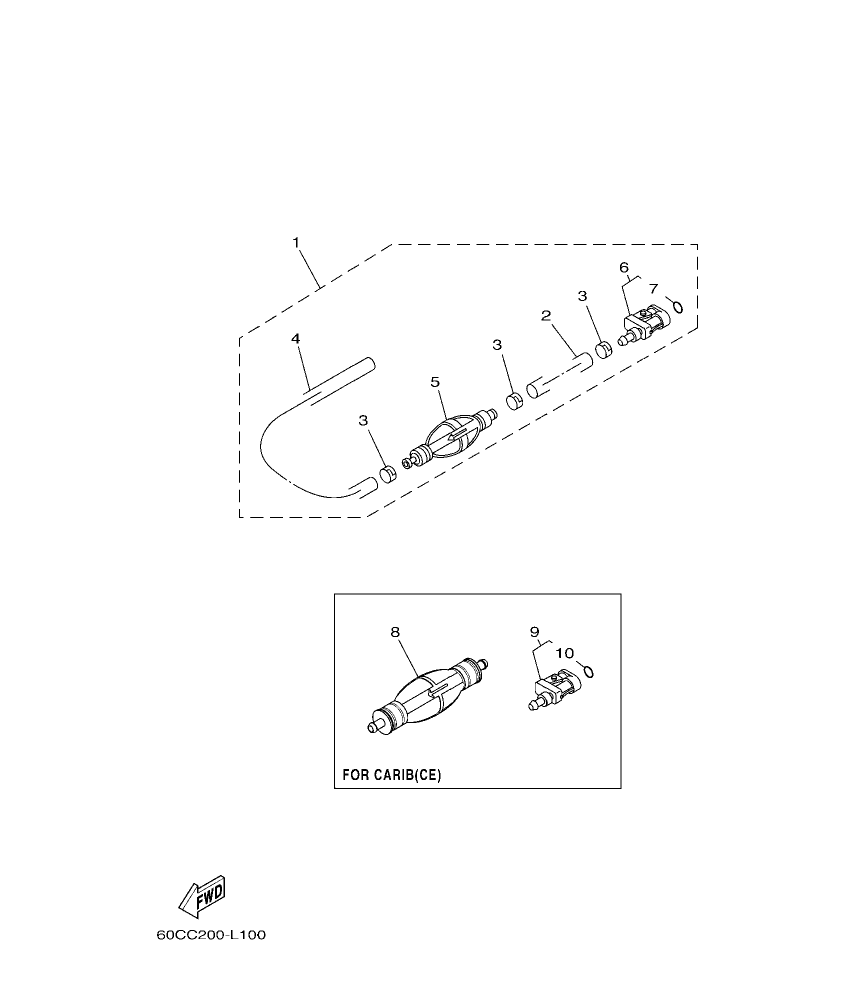

Diagram for section 11: FUEL 2.

Ref Part No. Qty Buy
1
6Y2–24306–45
FUEL PIPE COMP. 1
 1 Ask on WhatsApp
2
90445–13M01
.HOSE (L2050)
 1 Ask on WhatsApp
3
6E5–24351–51
.BAND 1
 3 Ask on WhatsApp
4
90445–13M35
.HOSE (L250)
 1 Ask on WhatsApp
5
6Y2–24360–60
.PRIMER PUMP ASSY
 1 Ask on WhatsApp
6
6Y2–24305–06
.FUEL PIPE JOINT COMP. 2
 1 Ask on WhatsApp
7
93210–08287
..O-RING
 1 Ask on WhatsApp
8
6Y2–24360–60
PRIMER PUMP ASSY
 1 Ask on WhatsApp
9
6Y2–24305–06
FUEL PIPE JOINT COMP. 2
 1 Ask on WhatsApp
10
93210–08287
.O-RING
 1 Ask on WhatsApp
