Section 22: POWER TRIM & TILT ASSY 2 (v2)
Engine sections in this catalog
SCHEDULED SERVICE PARTS
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
STARTING MOTOR
BOTTOM COWLING
CONTROL
BRACKET 1
TOP COWLING
BRACKET 2
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
CYLINDER & CRANKCASE 1
METER
OPTIONAL PARTS 1
OPTIONAL PARTS 2
REPAIR KIT 1
REPAIR KIT 2
REPAIR KIT 3
CRANKSHAFT & PISTON
CYLINDER & CRANKCASE 2
VALVE
INTAKE
CARBURETOR 1
CARBURETOR 2

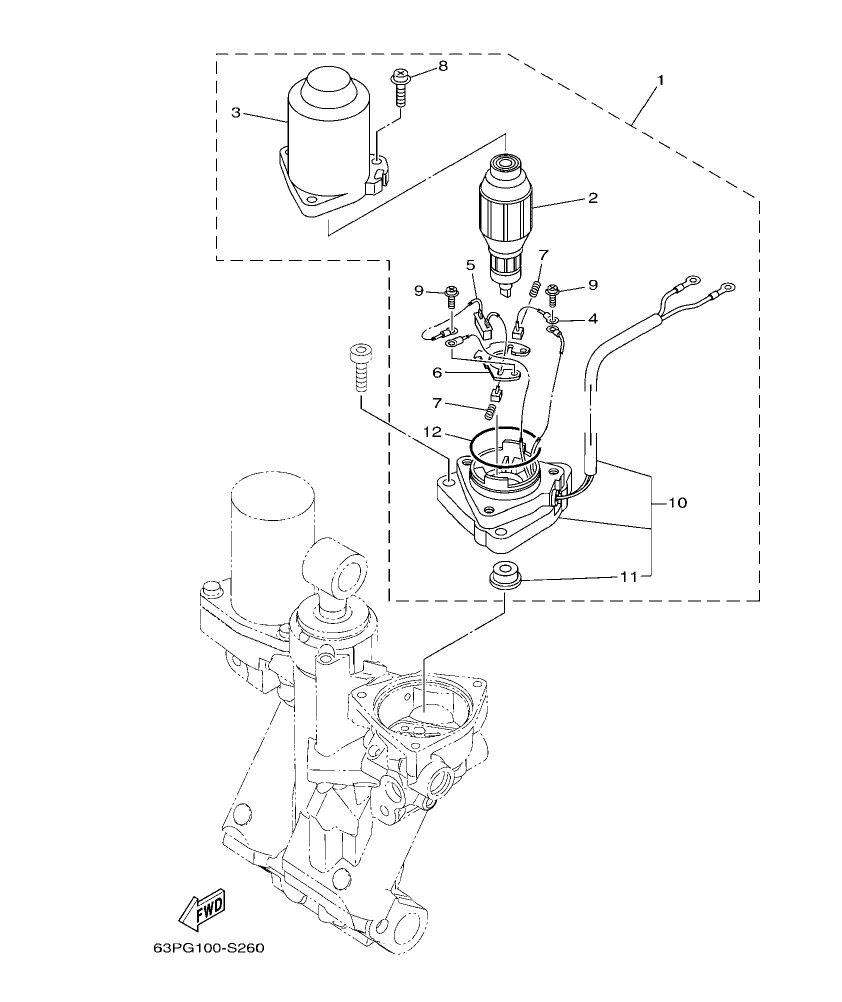

Diagram for section 22: POWER TRIM & TILT ASSY 2.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
68V–43880–11
MOTOR ASSY
|
1 | Ask on WhatsApp |
| 2 |
6EK–43805–01
.ARMATURE ASSY
|
1 | Ask on WhatsApp |
| 3 |
6EK–43804–11
.STATOR ASSY
|
1 | Ask on WhatsApp |
| 4 |
6EK–43892–00
.BRUSH 2
|
1 | Ask on WhatsApp |
| 5 |
6EK–82181–00
.CIRCUIT BREAKER COMP.
|
1 | Ask on WhatsApp |
| 6 |
6EK–4380F–00
.PLATE, BRUSH HOLDER
|
1 | Ask on WhatsApp |
| 7 |
62X–4386K–00
.SPRING, BRUSH
|
2 | Ask on WhatsApp |
| 8 |
63P–43879–10
.SCREW, WITH WASHER
|
3 | Ask on WhatsApp |
| 9 |
97602–04316
.SCREW, PAN HEAD WITH WASHER
|
2 | Ask on WhatsApp |
| 10 |
68V–43881–11
.FRAME, END
|
1 | Ask on WhatsApp |
| 11 |
6EK–43882–00
..OIL SEAL
|
1 | Ask on WhatsApp |
| 12 |
6EK–43862–01
.O-RING
|
1 | Ask on WhatsApp |
