F100BET

Section 26: LOWER CASING & DRIVE 2 (v2)

Engine sections in this catalog
SCHEDULED SERVICE PARTS FUEL 1 FUEL 2 GENERATOR ELECTRICAL 1 ELECTRICAL 2 ELECTRICAL 3 STARTING MOTOR BOTTOM COWLING CONTROL BRACKET 1 TOP COWLING BRACKET 2 POWER TRIM & TILT ASSY 1 POWER TRIM & TILT ASSY 2 UPPER CASING OIL PAN LOWER CASING & DRIVE 1 LOWER CASING & DRIVE 2 STEERING GUIDE REMOTE CONTROL BOX REMOTE CONTROL ASSY CYLINDER & CRANKCASE 1 METER OPTIONAL PARTS 1 OPTIONAL PARTS 2 REPAIR KIT 1 REPAIR KIT 2 REPAIR KIT 3 CRANKSHAFT & PISTON CYLINDER & CRANKCASE 2 VALVE INTAKE CARBURETOR 1 CARBURETOR 2

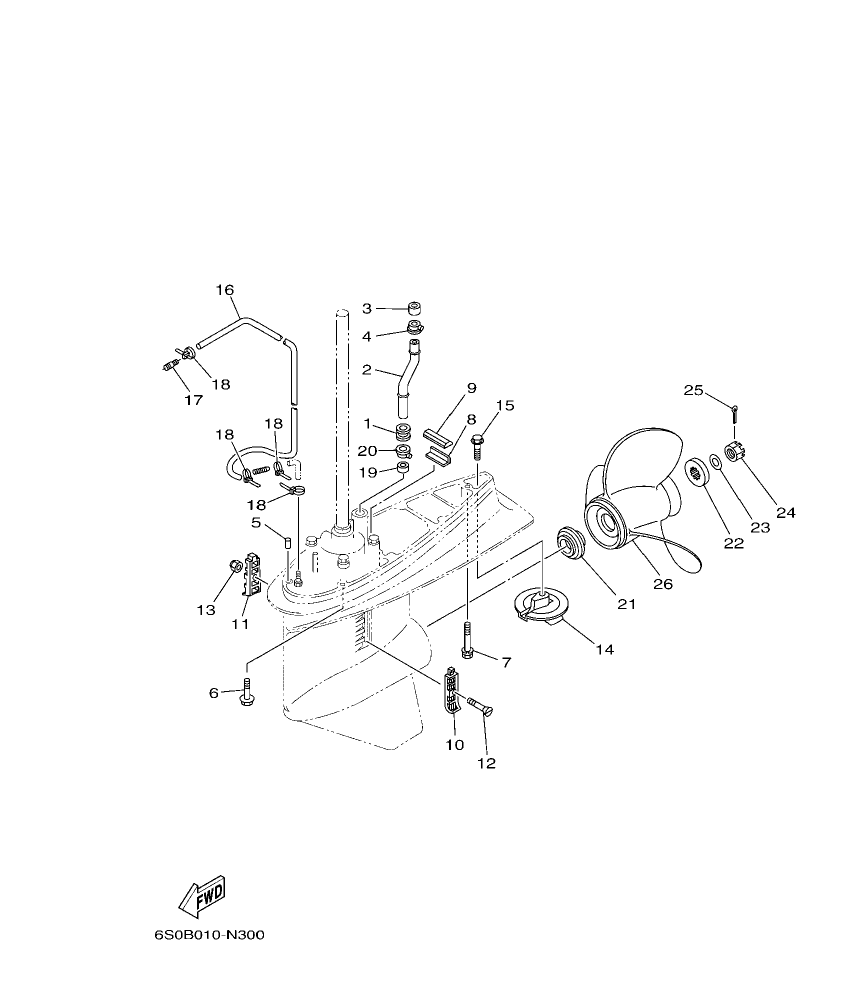

F100BET – section 26 LOWER CASING & DRIVE 2 parts diagram

Diagram for section 26: LOWER CASING & DRIVE 2.

Ref Part No. Qty Buy
1
6E5–44366–01
DAMPER, WATER SEAL 2
 1 Ask on WhatsApp
2
6BC–44361–10
TUBE, WATER 1
 1 Ask on WhatsApp
3
6E5–44365–01
DAMPER, WATER SEAL 1
 1 Ask on WhatsApp
4
6E5–44312–00
COVER, WATER PUMP HOUSING
 1 Ask on WhatsApp
5
93608–12M05
PIN, DOWEL
 2 Ask on WhatsApp
6
6BC–44361–30
TUBE, WATER 1
 1 Ask on WhatsApp
6
6E5–45945–01
"PROPELLER (3X13-1/4""X17""-K)"
 1 Ask on WhatsApp
6
97E95–10545
BOLT, HEXAGON W/W DEEP RECESS
 6 Ask on WhatsApp
7
90119–10071
BOLT, WITH WASHER
 1 Ask on WhatsApp
8
663–45376–00
GUIDE, SEAL DAMPER
 1 Ask on WhatsApp
9
688–45375–00
DAMPER, SEAL
 1 Ask on WhatsApp
10
688–45214–02
COVER, WATER INLET 1
 1 Ask on WhatsApp
11
688–45215–02
COVER, WATER INLET 2
 1 Ask on WhatsApp
12
90152–05M07
SCREW, COUNTERSUNK
 1 Ask on WhatsApp
13
90185–05002
NUT, NYLON
 1 Ask on WhatsApp
14
6E5–45371–01
TAB-TRIM
 1 Ask on WhatsApp
15
90105–10M00
BOLT, FLANGE
 1 Ask on WhatsApp
16
90445–076K2
HOSE (L1550)
 1 Ask on WhatsApp
17
6E5–83558–00
END, NIPPLE
 1 Ask on WhatsApp
18
90465–11M10
CLAMP
 4 Ask on WhatsApp
19
6E5–44365–01
DAMPER, WATER SEAL 1
 1 Ask on WhatsApp
20
6E5–44312–00
COVER, WATER PUMP HOUSING
 1 Ask on WhatsApp
21
63P–45987–00
SPACER 1
 1 Ask on WhatsApp
22
688–45997–01
SPACER 2
 1 Ask on WhatsApp
23
92990–18200
WASHER
 1 Ask on WhatsApp
24
90171–18M04
NUT, CASTLE
 1 Ask on WhatsApp
25
91490–40030
PIN. COTTER
 1 Ask on WhatsApp
26
688–45930–02
"PROPELLER (3X13""X17""-K2)"
 1 Ask on WhatsApp
26
6E5–45947–00
"PROPELLER (3X13-1/2""X15""-K)"
 1 Ask on WhatsApp
