F100BET – section 13 ELECTRICAL 1 parts diagram

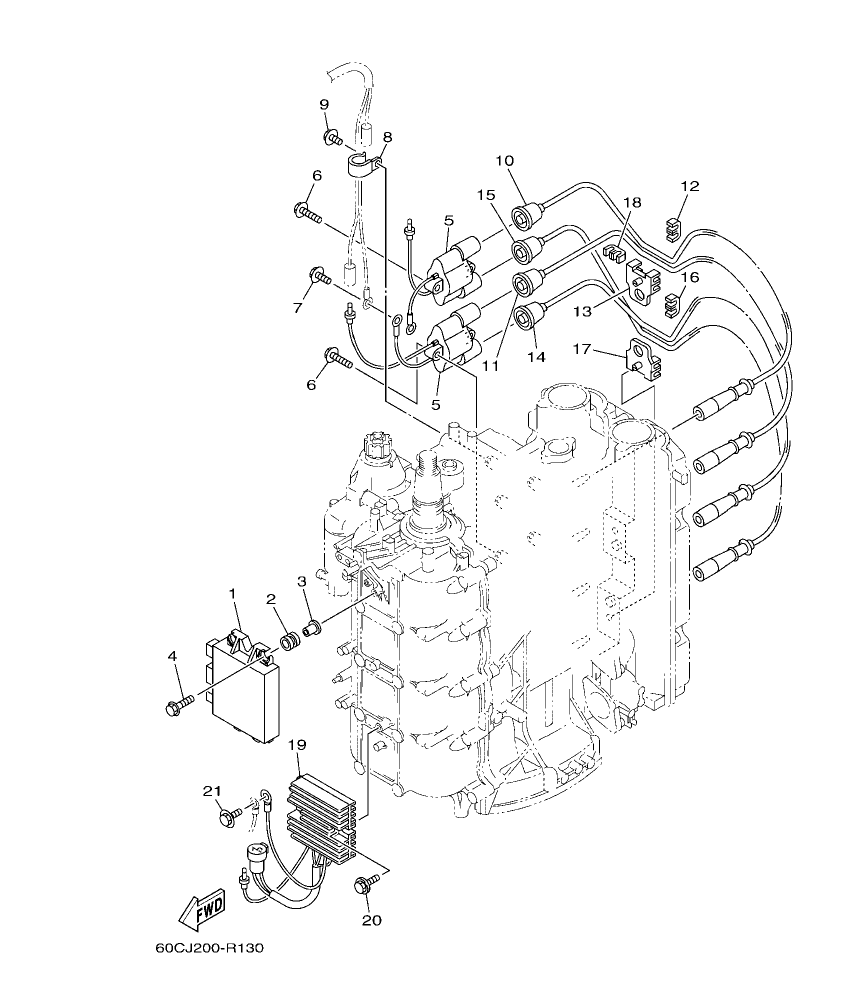

Diagram for section 13: ELECTRICAL 1.

Ref Part No. Qty Buy
1
67F–85540–03
C.D.I. UNIT ASSY
 1 Ask on WhatsApp
2
68V–82317–01
DAMPER, IGNITION COIL
 4 Ask on WhatsApp
3
90387–06119
COLLAR
 4 Ask on WhatsApp
4
90119–06289
BOLT, WITH WASHER
 4 Ask on WhatsApp
5
67F–85570–00
IGNITION COIL ASSY
 2 Ask on WhatsApp
6
97E95–06630
BOLT, HEXAGON W/W DEEP RECESS
 4 Ask on WhatsApp
7
97E95–06620
BOLT, HEXAGON W/W DEEP RECESS
 1 Ask on WhatsApp
8
90465–06M86
CLAMP
 1 Ask on WhatsApp
9
97E95–06512
BOLT, HEXAGON W/W DEEP RECESS
 1 Ask on WhatsApp
10
67F–82341–00
CORD, HIGH TENSION 1
 1 Ask on WhatsApp
11
67F–82342–00
CORD, HIGH TENSION 2
 1 Ask on WhatsApp
12
67F–82361–00
CLAMP, CORD
 1 Ask on WhatsApp
13
67F–82362–00
CLAMP, CORD 2
 1 Ask on WhatsApp
14
67F–82343–00
CORD, HIGH TENSION 3
 1 Ask on WhatsApp
15
67F–82344–00
CORD, HIGH TENSION 4
 1 Ask on WhatsApp
16
67F–82361–00
CLAMP, CORD
 1 Ask on WhatsApp
17
67F–82362–00
CLAMP, CORD 2
 1 Ask on WhatsApp
18
67F–82361–00
CLAMP, CORD
 1 Ask on WhatsApp
19
67F–81960–12
RECTIFIER & REGULATOR ASSY
 1 Ask on WhatsApp
20
97E95–06625
BOLT, HEXAGON W/W DEEP RECESS
 2 Ask on WhatsApp
21
97E95–06616
BOLT, HEXAGON W/W DEEP RECESS
 1 Ask on WhatsApp
