Section 14: ELECTRICAL 2 (v2)
Engine sections in this catalog
SCHEDULED SERVICE PARTS
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
STARTING MOTOR
BOTTOM COWLING
CONTROL
BRACKET 1
TOP COWLING
BRACKET 2
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
CYLINDER & CRANKCASE 1
METER
OPTIONAL PARTS 1
OPTIONAL PARTS 2
REPAIR KIT 1
REPAIR KIT 2
REPAIR KIT 3
CRANKSHAFT & PISTON
CYLINDER & CRANKCASE 2
VALVE
INTAKE
CARBURETOR 1
CARBURETOR 2

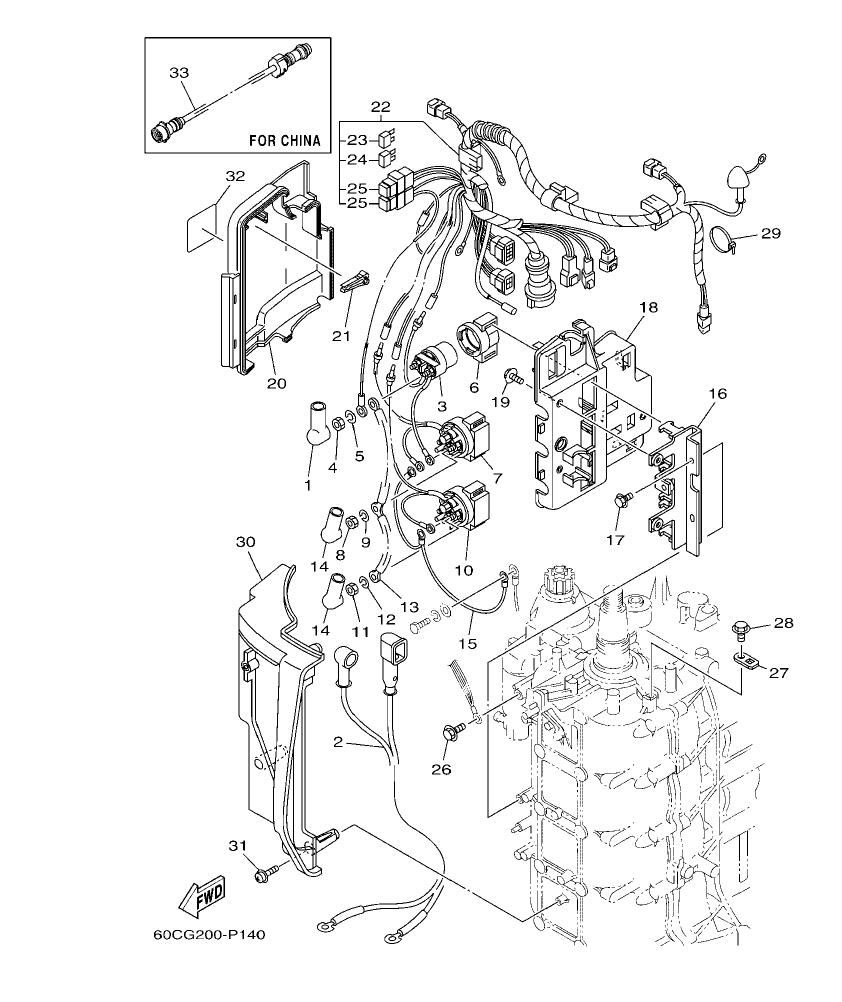

Diagram for section 14: ELECTRICAL 2.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
682–82119–01
COVER, LEAD WIRE
|
2 | Ask on WhatsApp |
| 2 |
67F–82105–02
BATTERY CABLE
|
1 | Ask on WhatsApp |
| 3 |
6G1–8194A–10
RELAY
|
1 | Ask on WhatsApp |
| 4 |
90170–06M30
NUT
|
2 | Ask on WhatsApp |
| 5 |
90204–06M00
WASHER, SPRING
|
2 | Ask on WhatsApp |
| 6 |
6G1–81952–01
HOLDER, RELAY
|
1 | Ask on WhatsApp |
| 7 |
6E5–8195B–01
RELAY ASSY
|
1 | Ask on WhatsApp |
| 8 |
90170–06M30
NUT
|
3 | Ask on WhatsApp |
| 9 |
90204–06M00
WASHER, SPRING
|
3 | Ask on WhatsApp |
| 10 |
6E5–8195C–01
RELAY ASSY
|
1 | Ask on WhatsApp |
| 11 |
90170–06M30
NUT
|
3 | Ask on WhatsApp |
| 12 |
90204–06M00
WASHER, SPRING
|
3 | Ask on WhatsApp |
| 13 |
66T–87149–00
CONNECTOR
|
1 | Ask on WhatsApp |
| 14 |
6G5–82119–00
COVER, LEAD WIRE
|
2 | Ask on WhatsApp |
| 15 |
67F–82116–01
WIRE, MINUS LEAD
|
1 | Ask on WhatsApp |
| 16 |
67F–81953–00
STAY, RELAY
|
1 | Ask on WhatsApp |
| 17 |
97E95–06516
BOLT, HEXAGON W/W DEEP RECESS
|
2 | Ask on WhatsApp |
| 18 |
67F–81948–01
BRACKET
|
1 | Ask on WhatsApp |
| 19 |
97E95–06516
BOLT, HEXAGON W/W DEEP RECESS
|
3 | Ask on WhatsApp |
| 20 |
67F–81942–00
COVER
|
1 | Ask on WhatsApp |
| 21 |
67F–2812A–00
PULLER, FUSE
|
1 | Ask on WhatsApp |
| 22 |
60C–82590–31
WIRE HARNESS ASSY
|
1 | Ask on WhatsApp |
| 23 |
67F–82151–00
.FUSE (20A)
|
2 | Ask on WhatsApp |
| 24 |
67F–82151–10
.FUSE (30A)
|
2 | Ask on WhatsApp |
| 25 |
67F–8215B–00
.CAP (BLACK)
|
2 | Ask on WhatsApp |
| 26 |
97E95–06616
BOLT, HEXAGON W/W DEEP RECESS
|
1 | Ask on WhatsApp |
| 27 |
67F–82588–00
PLATE
|
3 | Ask on WhatsApp |
| 28 |
97E95–06512
BOLT, HEXAGON W/W DEEP RECESS
|
3 | Ask on WhatsApp |
| 29 |
90465–13M11
CLAMP
|
1 | Ask on WhatsApp |
| 30 |
67F–81916–02
COVER, TERMINAL
|
1 | Ask on WhatsApp |
| 31 |
90159–06M29
SCREW, WITH WASHER
|
3 | Ask on WhatsApp |
| 32 |
67F–83626–00
MARK 6
|
1 | Ask on WhatsApp |
| 33 |
688–8258A–10
EXTENSION, WIRE HARNESS (2M)
|
1 | Ask on WhatsApp |
