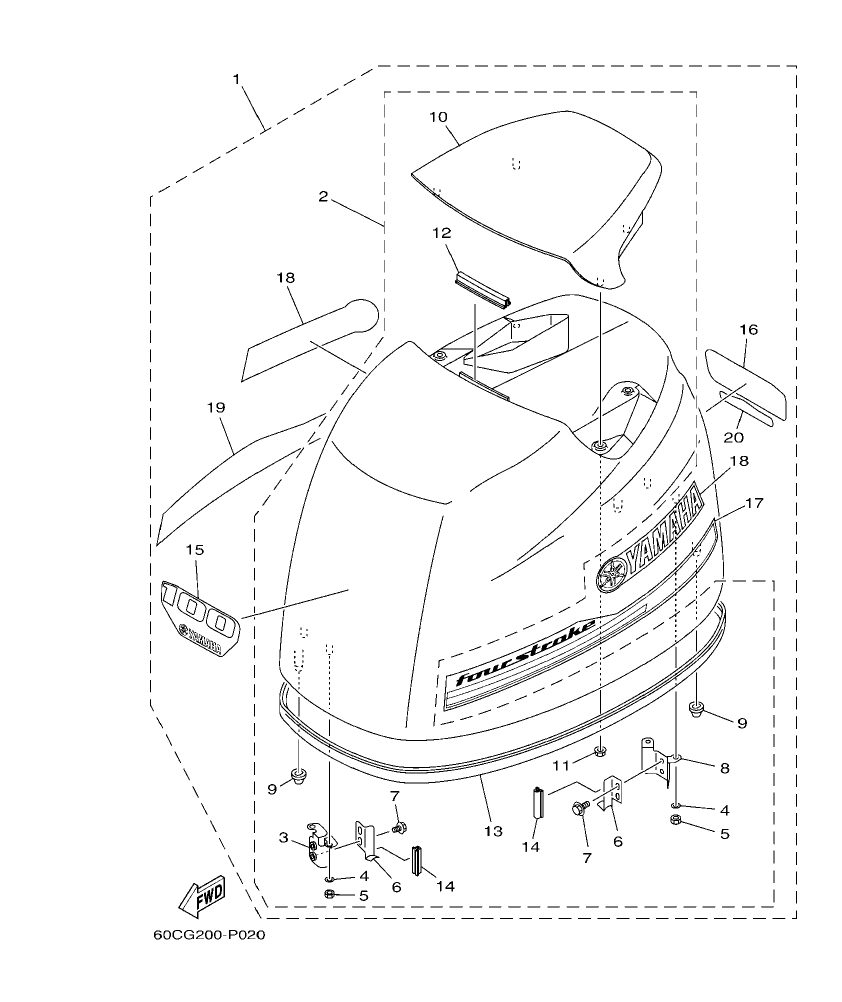

F100BET – section 2 TOP COWLING parts diagram

Diagram for section 2: TOP COWLING.

Ref Part No. Qty Buy
1
60C–42610–42
TOP COWLING ASSY
 1 Ask on WhatsApp
2
67F–4261A–02
.TOP COWLING W/O GRAPHICS
 1 Ask on WhatsApp
3
67F–42647–00
..HOLDER, CLAMP BAND
 1 Ask on WhatsApp
4
92990–06100
..WASHER, SPRING
 4 Ask on WhatsApp
5
95380–06600
..NUT, HEXAGON
 4 Ask on WhatsApp
6
68V–42652–00
..HOOK
 2 Ask on WhatsApp
7
97E95–06512
..BOLT, HEXAGON W/W DEEP RECESS
 4 Ask on WhatsApp
8
67F–42649–00
..HOLDER, CLAMP BAND
 1 Ask on WhatsApp
9
67F–42662–01
..DAMPER
 3 Ask on WhatsApp
10
67F–42613–00–8D
..MOLDING, AIR DUCT
 1 Ask on WhatsApp
11
90179–06M24
..NUT
 4 Ask on WhatsApp
12
61N–42628–01
..SEAL
 1 Ask on WhatsApp
13
67F–42615–00
..SEAL
 1 Ask on WhatsApp
14
67F–42628–01
..SEAL
 2 Ask on WhatsApp
15
60C–42677–21
.GRAPHIC, FRONT
 1 Ask on WhatsApp
16
60C–42678–31
.GRAPHIC, REAR
 1 Ask on WhatsApp
17
60C–42675–11
.GRAPHIC, SIDE 1
 1 Ask on WhatsApp
18
60C–42681–11
.MARK, COWLING
 2 Ask on WhatsApp
19
60C–42676–11
.GRAPHIC, SIDE 2
 1 Ask on WhatsApp
20
6AJ–4267A–01
.GRAPHIC, REAR 2
 1 Ask on WhatsApp
