F100BET
Section 1: SCHEDULED SERVICE PARTS (v2)
Engine sections in this catalog
SCHEDULED SERVICE PARTS
FUEL 1
FUEL 2
GENERATOR
ELECTRICAL 1
ELECTRICAL 2
ELECTRICAL 3
STARTING MOTOR
BOTTOM COWLING
CONTROL
BRACKET 1
TOP COWLING
BRACKET 2
POWER TRIM & TILT ASSY 1
POWER TRIM & TILT ASSY 2
UPPER CASING
OIL PAN
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
CYLINDER & CRANKCASE 1
METER
OPTIONAL PARTS 1
OPTIONAL PARTS 2
REPAIR KIT 1
REPAIR KIT 2
REPAIR KIT 3
CRANKSHAFT & PISTON
CYLINDER & CRANKCASE 2
VALVE
INTAKE
CARBURETOR 1
CARBURETOR 2

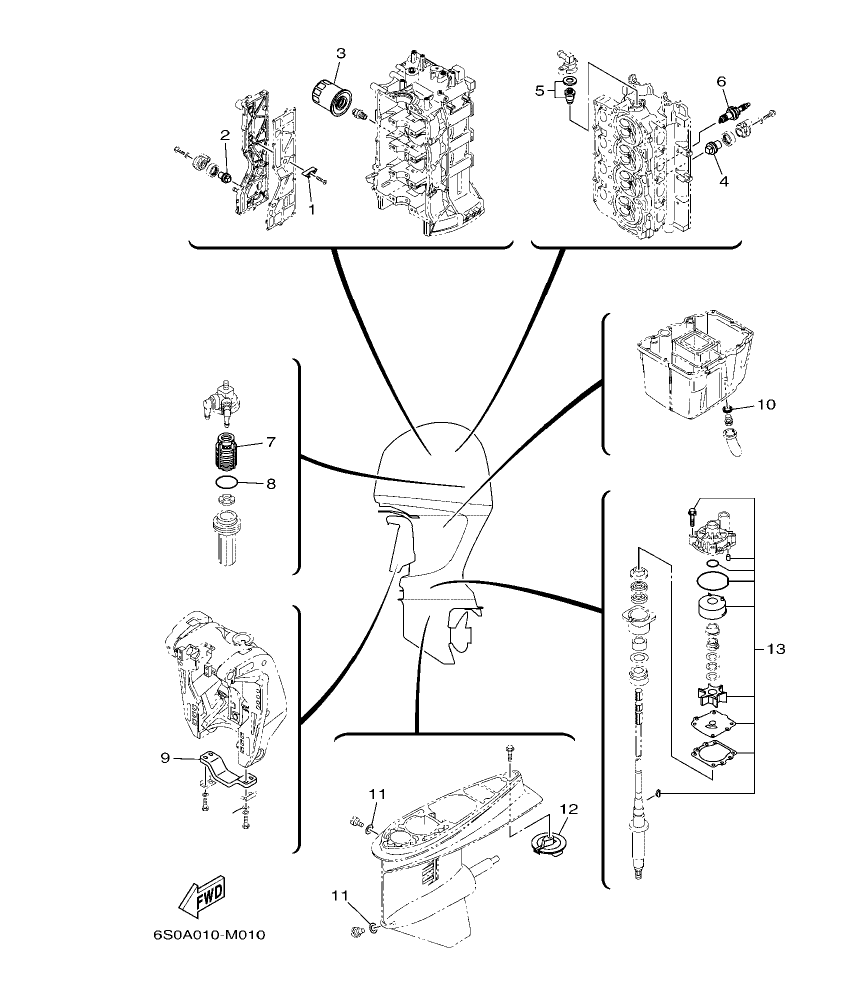

Diagram for section 1: SCHEDULED SERVICE PARTS.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6E5–11325–00
|
3 | Ask on WhatsApp |
| 2 |
67F–11325–01
|
1 | Ask on WhatsApp |
| 3 |
5GH–13440–71
|
1 | Ask on WhatsApp |
| 4 |
67F–11325–01
|
2 | Ask on WhatsApp |
| 5 |
67F–12411–01
|
1 | Ask on WhatsApp |
| 6 |
94702–00391
|
4 | Ask on WhatsApp |
| 7 |
61N–24563–10
|
1 | Ask on WhatsApp |
| 8 |
93210–32738
|
1 | Ask on WhatsApp |
| 9 |
6G5–45251–02
|
1 | Ask on WhatsApp |
| 10 |
90430–14M09
|
1 | Ask on WhatsApp |
| 11 |
90430–08003
|
2 | Ask on WhatsApp |
| 12 |
6E5–45371–01
|
1 | Ask on WhatsApp |
| 13 |
60C–W0078–01
|
1 | Ask on WhatsApp |
