ME432STIP2

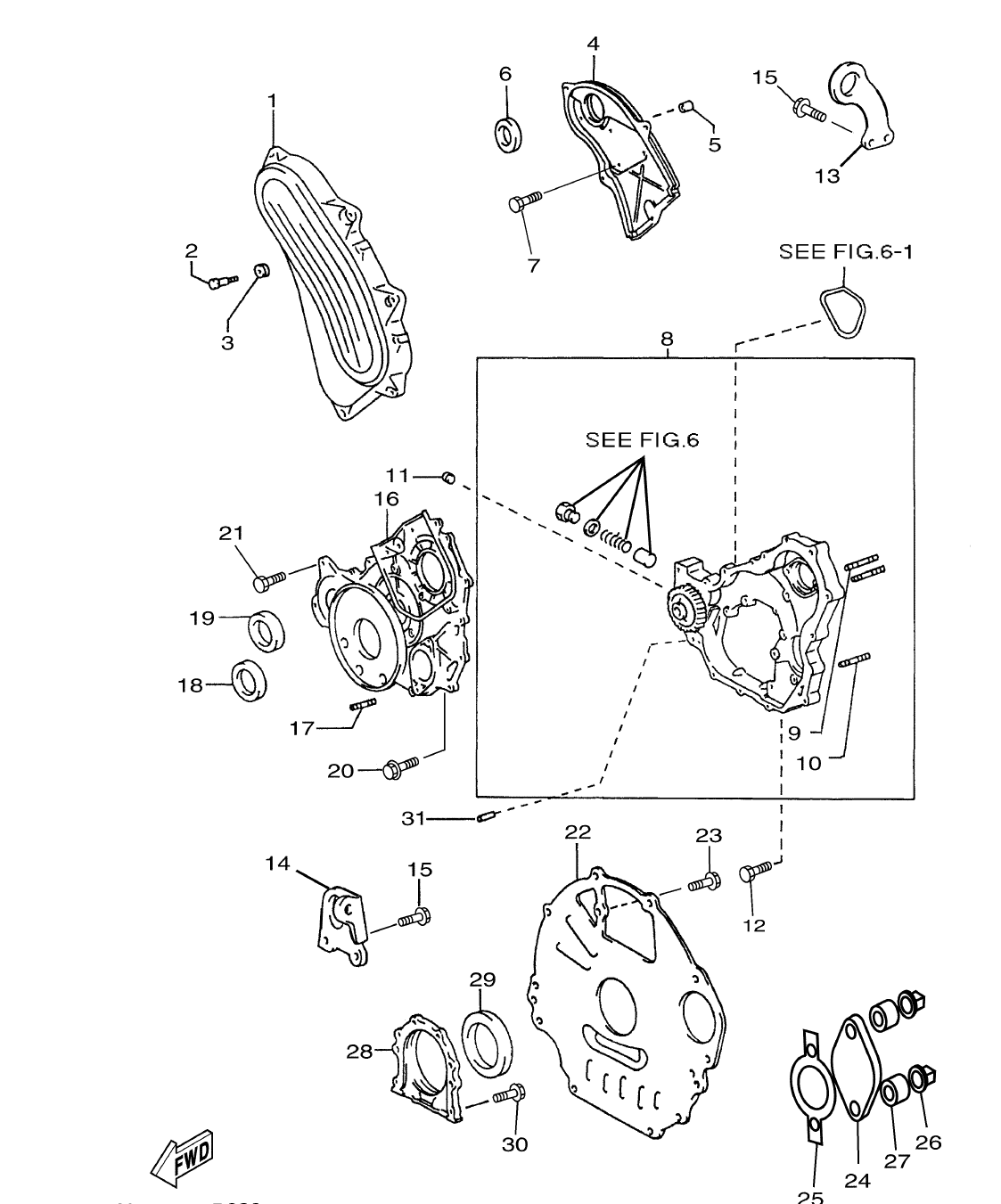

Section 3: TIMING GEAR COVER & REAR END (v2)
Model code: N701
Parts list
Section 3
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
YU1-13211-70-60
COVER,TIMING BELT,NO.1
|
1 | |
| 2 |
YU9-01090-60-46
BOLT
|
6 | |
| 3 |
YU9-02100-80-19
WASHER, SEAL
|
6 | |
| 4 |
YU1-13821-70-40
RETAINER,CAMSHAFT OIL SEAL
|
1 | |
| 5 |
YU9-02531-10-21
OIL SEAL RETAINER RING PIN
L=8,OD=11
|
2 | |
| 6 |
YU9-03113-20-19
OIL SEAL
|
1 | |
| 7 |
YU9-15116-08-20
BOLT
|
4 | |
| 8 |
YU1-13011-70-30
CASE SUB ASSY, TIMING GEAR
|
1 | |
| 9 |
YU1-51831-70-10
.BOLT, STUD
|
2 | |
| 10 |
YU1-51831-70-20
.BOLT, STUD
|
2 | |
| 11 |
YU9-03445-10-05
PLUG,TAPER SCREW
|
1 | |
| 12 |
YU9-15116-08-20
BOLT
|
7 | |
| 13 |
YU1-22811-70-30
HANGER,ENGINE,NO.1
|
1 | |
| 14 |
YU1-22821-70-10
HANGER,ENGINE,NO.2
|
1 | |
| 15 |
YU9-16226-10-20
BOLT,W/WASHER
|
4 | |
| 16 |
YU1-13221-70-30
TIMING GEAR COVER (NO.2)
|
1 | |
| 17 |
YU9-01161-01-60
TIMING GEAR CASE STUD BOLT
|
2 | |
| 18 |
YU9-03115-80-06
TIMING GEAR COVER OIL SEAL
|
1 | |
| 19 |
YU9-03115-80-07
TIMING GEAR COVER OIL SEAL
|
1 | |
| 20 |
YU9-15116-08-25
BOLT
|
9 | |
| 21 |
YU9-15116-08-50
BOLT
|
6 | |
| 22 |
YU1-13551-70-11
REAR END PLATE
|
1 | |
| 23 |
YU9-16216-08-14
BOLT
|
1 | |
| 24 |
YU1-12716-70-20
COVER,CYLINDER BLOCK SIDE
|
1 | |
| 25 |
YU1-12731-70-10
GASKET,CYLINDER BLOCK SIDE COVER
|
1 | |
| 26 |
YU9-01791-00-87
NUT
|
2 | |
| 27 |
YU9-05601-11-07
SPACER
|
2 | |
| 28 |
YU1-13811-70-10
ENGINE REAR OIL SEAL RETAINER
|
1 | |
| 29 |
YU9-03119-50-08
ENGINE REAR OIL SEAL
|
1 | |
| 30 |
YU9-15116-06-16
BOLT,FLANGE
|
6 | |
| 31 |
YU9-02500-80-54
TIMING GEAR CASE STRAIGHT PIN
L=23,OD=8
|
1 |
