ME432STIP2

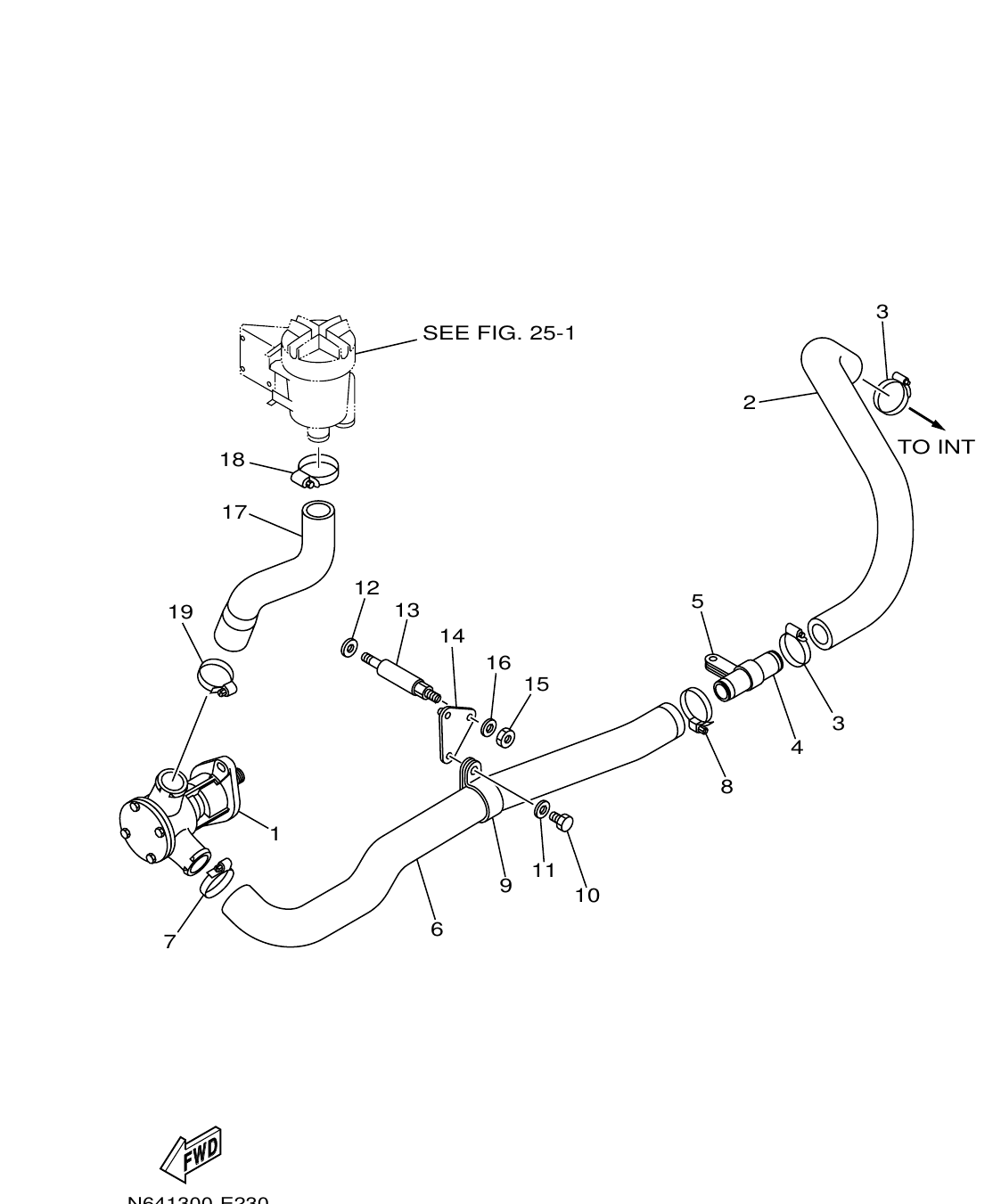

Section 23: SEA WATER PUMP 1 (v2)
Model code: N701
Parts list
Section 23
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
N60-12402-00
SEA WATER PUMP SUB-ASSY
SEE FIG.33-3
|
1 | |
| 2 |
6TA-12576-00
HOSE 1
|
1 | |
| 3 |
90450-35M11
HOSE CLAMP ASSY
|
2 | |
| 4 |
6TA-12483-01
PIPE 3
|
1 | |
| 5 |
90465-16M49
CLAMP
|
1 | |
| 6 |
25-1
7 90450-35M11 HOSE CLAMP ASSY
|
1 | |
| 6 |
N60-12577-00
HOSE 2
|
1 | |
| 8 |
90450-54M00
HOSE CLAMP ASSY
|
1 | |
| 9 |
90465-14M50
CLAMP
|
1 | |
| 10 |
97027-10020
BOLT
|
1 | |
| 11 |
92907-10600
WASHER, PLATE
|
1 |
2.98 AED
Check price & stock on WhatsApp
|
| 12 |
90201-124G9
WASHER, PLATE
|
1 | |
| 13 |
6TA-12638-01
STAY 2
|
1 | |
| 14 |
6TA-1244F-00
BRACKET 1
|
1 | |
| 15 |
95317-12600
NUT
|
1 | |
| 16 |
92907-12600
WASHER, PLATE
|
1 | |
| 17 |
N60-1244G-00
HOSE, 4
|
1 | |
| 18 |
90450-40009
HOSE CLAMP ASSY
|
1 | |
| 19 |
90450-32008
HOSE CLAMP ASSY
|
1 |
