ME432STIP2

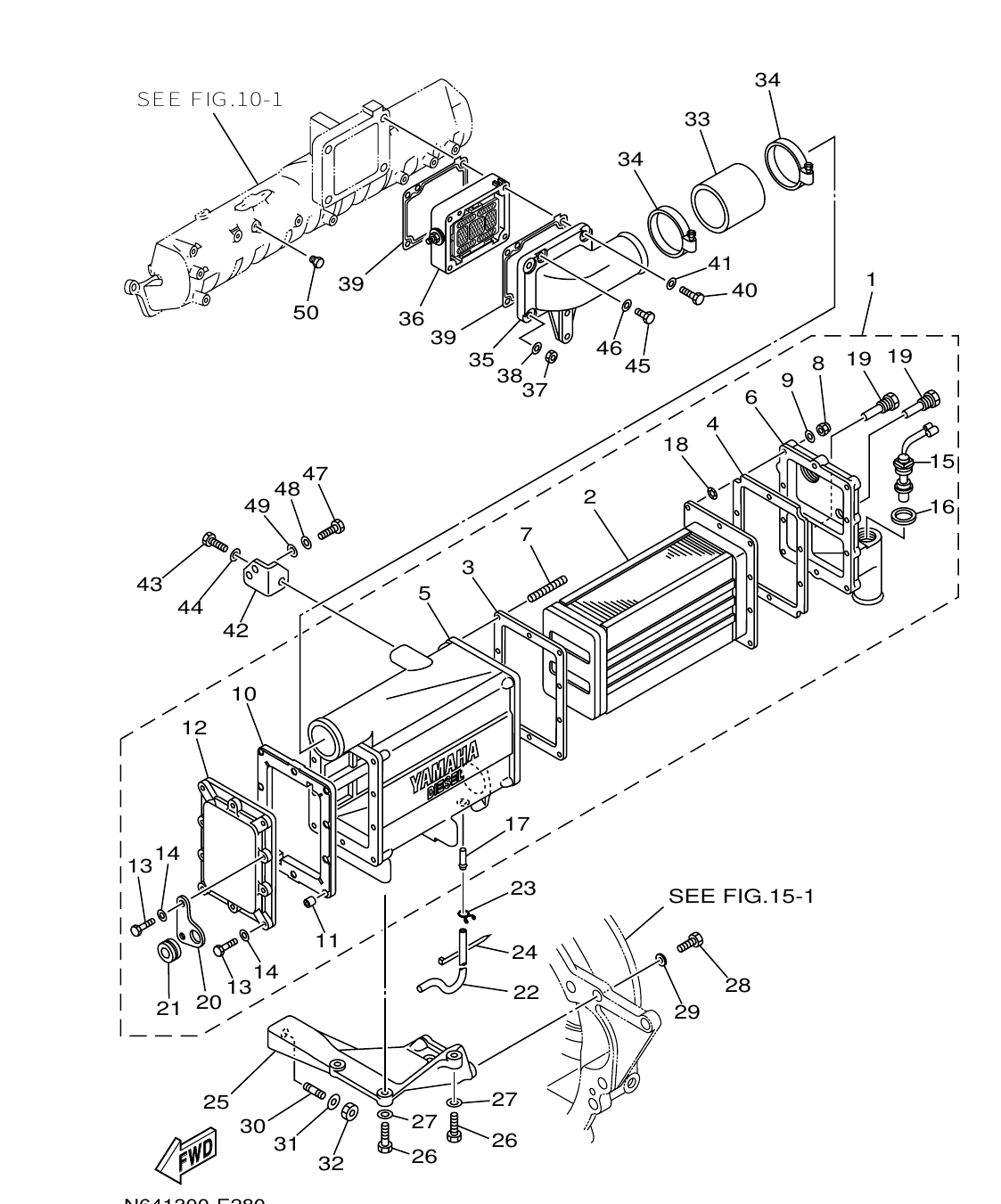

Section 28: AIR COOLER (v2)
Model code: N701
Parts list
Section 28
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
N57-13670-00
AIR COORER ASSY.
|
1 | |
| 2 |
N57-13601-00
.AIR COOLER ELEMENT COMP
|
1 | |
| 3 |
N49-13674-00
.GASKET, AIR COOLER COVER 1
|
1 | |
| 4 |
N51-13675-01
.GASKET, AIR COOLER COVER 2
|
1 | |
| 5 |
N57-13671-00
.HOUSING, AIR COOLER
|
1 | |
| 6 |
N51-13673-10
.COVER,AIR COOLER 2
|
1 | |
| 7 |
95627-06635
.BOLT, STUD
|
10 | |
| 8 |
95780-06300
.NUT, FLANGE
|
10 | |
| 9 |
92990-06600
.WASHER, PLATE
|
10 | |
| 10 |
6TA-13679-02
.GSKT., AIR COOER CAP 2
|
1 | |
| 11 |
90387-06M37
.COLLAR
|
10 | |
| 12 |
6TA-13672-01
.COVER,AIR COOLER 1
|
1 | |
| 13 |
97027-06040
.BOLT
|
10 | |
| 14 |
92907-06600
.WASHER, PLATE
|
10 |
2.98 AED
Check price & stock on WhatsApp
|
| 15 |
6T0-83605-01
.SENDER, WATER
|
1 | |
| 16 |
90430-26M05
.GASKET
|
1 | |
| 17 |
650-24378-00
.PIPE, JOINT 4
|
1 | |
| 18 |
90206-06090
.WASHER, WAVE
|
4 | |
| 19 |
N51-11325-01
.ANODE 1
|
2 | |
| 20 |
N57-14155-00
.GUIDE, CABLE
|
1 | |
| 21 |
90480-20527
.GROMMET
|
1 | |
| 22 |
90445-09017
HOSE (L300)
|
1 | |
| 23 |
90467-08004
CLIP
|
1 | |
| 24 |
90465-15M54
CLAMP
|
1 | |
| 25 |
6TA-13691-01
BRACKET, AIR COOLER
|
1 | |
| 26 |
97027-10035
BOLT
|
3 | |
| 27 |
92907-10600
WASHER, PLATE
|
3 |
2.98 AED
Check price & stock on WhatsApp
|
| 28 |
97017-10030
BOLT
|
1 | |
| 29 |
90201-10774
WASHER, PLATE
|
1 | |
| 30 |
95627-10330
BOLT, STUD
|
1 | |
| 31 |
90201-10774
WASHER, PLATE
|
1 | |
| 32 |
95317-10600
NUT
|
1 | |
| 33 |
90445-72M00
HOSE (L70)
|
1 | |
| 34 |
90450-82018
HOSE CLAMP ASSY
|
2 | |
| 35 |
N57-13652-00
PIPE, INTAKE
|
1 | |
| 36 |
YU1-98101-70-30
HEARTER ASSY, INTAKE
|
1 | |
| 37 |
95317-08600
NUT
|
2 | |
| 38 |
92907-08600
WASHER, PLATE
|
2 | |
| 39 |
YU1-98291-70-10
GASKET, INTAKE HEARTER
|
2 | |
| 40 |
97027-08055
BOLT
|
2 | |
| 41 |
92907-08600
WASHER, PLATE
|
2 | |
| 42 |
N57-1371L-00
BRACKET
|
1 | |
| 43 |
97017-10025
BOLT
|
1 | |
| 44 |
90201-101J1
WASHER, PLATE
|
1 | |
| 45 |
97027-06020
BOLT
|
1 | |
| 46 |
92907-06600
WASHER, PLATE
|
1 |
2.98 AED
Check price & stock on WhatsApp
|
| 47 |
97027-08025
BOLT
|
2 | |
| 48 |
92907-08600
WASHER, PLATE
|
2 | |
| 49 |
90201-084K5
WASHER, PLATE
|
2 | |
| 50 |
90345-51003
PLUG, TAPER SCREW
|
1 |
