ME432STIP2

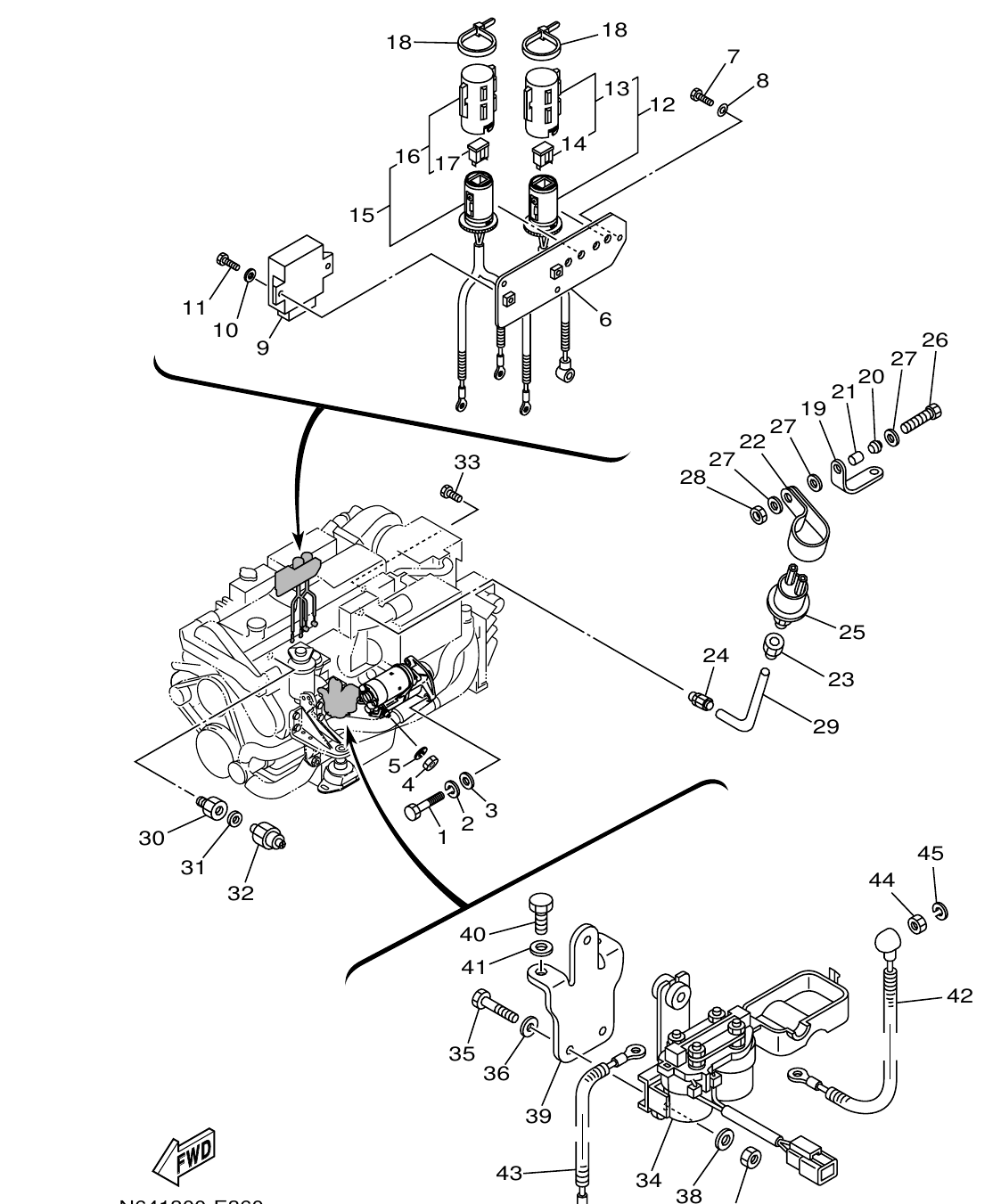

Section 36: ELECTRICAL 1 (v2)
Model code: N701
Parts list
Section 36
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
97027-12050
BOLT
|
2 | |
| 2 |
92907-12100
WASHER, SPRING
|
2 | |
| 3 |
92907-12600
WASHER, PLATE
|
2 | |
| 4 |
90170-10202
NUT
|
1 | |
| 5 |
92907-10100
WASHER, SPRING
|
1 |
2.98 AED
Check price & stock on WhatsApp
|
| 6 |
41300-E360
|
37 | |
| 6 |
41300-E360
|
37 | |
| 6 |
N57-85542-00
BRACKET
|
1 | |
| 7 |
97027-08014
BOLT
|
3 | |
| 8 |
92907-08600
WASHER, PLATE
|
3 | |
| 9 |
N57-85910-00
CONTROL UNIT ASSY
|
1 | |
| 10 |
90201-06045
WASHER, PLATE
|
2 |
2.98 AED
Check price & stock on WhatsApp
|
| 11 |
97027-06020
BOLT
|
2 | |
| 12 |
N64-82117-00
WIRE, LEAD
|
1 | |
| 13 |
6T0-82150-00
.FUSE HOLDER ASSY
|
1 | |
| 14 |
6T0-82151-00
..FUSE (100A)
|
1 | |
| 15 |
N64-82115-00
WIRE, PLUS LEAD
|
1 | |
| 16 |
6T0-82150-00
.FUSE HOLDER ASSY
|
1 | |
| 17 |
6T0-82151-00
..FUSE (100A)
|
1 | |
| 18 |
90465-15M54
CLAMP
|
2 | |
| 19 |
6TA-83614-00
BRACKET
|
1 | |
| 20 |
90480-14M45
GROMMET
|
1 | |
| 21 |
90387-08M22
COLLAR
|
1 | |
| 22 |
90461-14119
CLAMP
|
1 | |
| 23 |
N23-51761-00
JOINT 1
|
1 | |
| 24 |
N23-51762-00
JOINT 2
|
1 | |
| 25 |
6TA-83651-00
SENDER, OIL PRESSURE
|
1 | |
| 26 |
97017-08030
BOLT
|
1 | |
| 27 |
90201-08M02
WASHER, PLATE
|
3 | |
| 28 |
95337-08600
NUT
|
1 |
6.62 AED
Check price & stock on WhatsApp
|
| 29 |
6TA-83781-00
TUBE
|
1 | |
| 30 |
6TA-82378-00
CONNECTOR
|
1 | |
| 31 |
90430-10200
GASKET
|
1 | |
| 32 |
716-82504-00
OIL PRESSURE SWITCH ASSY
|
1 | |
| 33 |
90345-51003
PLUG, TAPER SCREW
|
1 | |
| 34 |
N57-83620-00
INTAKE AIR HEATER RELAY ASSY.
|
1 | |
| 35 |
97027-06030
BOLT
|
3 | |
| 36 |
92907-06600
WASHER, PLATE
|
3 |
2.98 AED
Check price & stock on WhatsApp
|
| 37 |
95317-06600
NUT
|
3 |
2.98 AED
Check price & stock on WhatsApp
|
| 38 |
90201-06778
WASHER, PLATE
|
3 | |
| 39 |
N57-85112-00
BRACKET, REFLECTOR 1
|
1 | |
| 40 |
97027-08016
BOLT
|
2 | |
| 41 |
92907-08600
WASHER, PLATE
|
2 | |
| 42 |
N57-8356N-10
WIRE, LEAD (L=450)
BRACK
|
1 | |
| 43 |
N57-8356N-00
WIRE, LEAD (L=420)
BRACK
|
1 | |
| 44 |
95317-06600
NUT
|
1 |
2.98 AED
Check price & stock on WhatsApp
|
| 45 |
92907-06100
WASHER, SPRING
|
1 |
