ME432STIP2

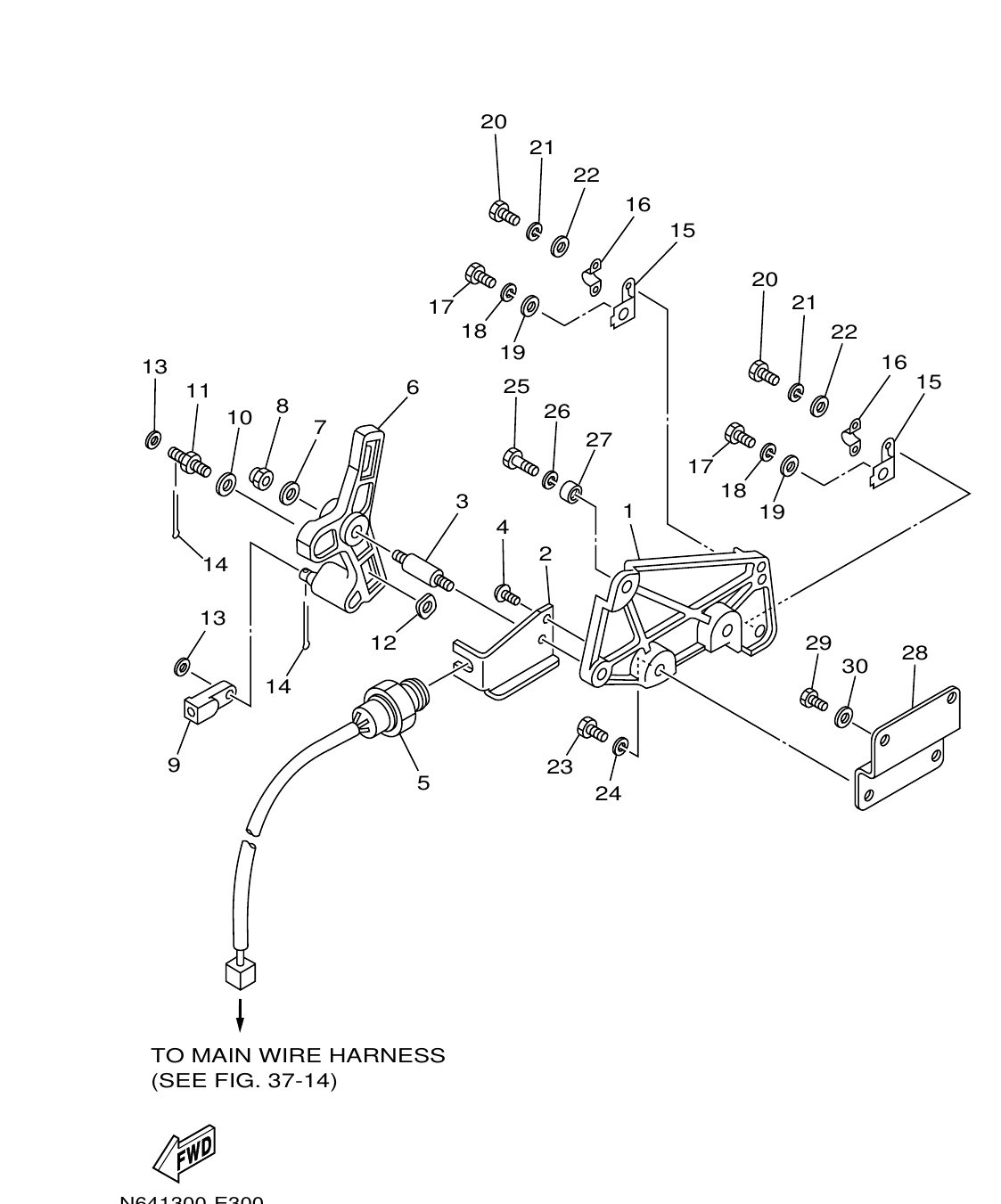

Section 30: SHIFT ASSIST UNIT (v2)
Model code: N701
Parts list
Section 30
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
6T9-45693-01
PLATE, SHIFT 1
|
1 | |
| 2 |
6TA-82554-00
STAY, NEUTRAL SWITCH
|
1 | |
| 3 |
6T0-44178-00
BOLT, STUD
|
1 | |
| 4 |
90157-03M14
SCREW, PAN HEAD
|
1 | |
| 5 |
6TA-82540-01
NEUTRAL SWITCH ASSY
|
1 | |
| 6 |
6T9-46382-01
LEVER, SHIFT 1
|
1 | |
| 7 |
90201-08M02
WASHER, PLATE
|
1 | |
| 8 |
95780-08300
NUT, FLANGE
|
1 | |
| 9 |
6G8-26363-00
END, WIRE 1
|
1 | |
| 10 |
90201-06M62
WASHER, PLATE
|
1 | |
| 11 |
6T0-42195-00
PIN, JOINT 1
|
1 | |
| 12 |
90173-06M05
NUT, SQUARE
|
1 | |
| 13 |
92990-06600
WASHER, PLATE
|
2 | |
| 14 |
91490-20012
PIN, COTTER
|
2 | |
| 15 |
6TC-48531-01
BRACKET, REMOTE CONTROL 1
|
2 | |
| 16 |
6TA-48538-00
CLAMP,CABLE 1
|
2 | |
| 17 |
97075-08016
BOLT
|
2 | |
| 18 |
92995-08100
WASHER
|
2 | |
| 19 |
92995-08600
WASHER
|
2 | |
| 20 |
97095-05012
BOLT
|
4 | |
| 21 |
92995-05100
WASHER
|
4 | |
| 22 |
92995-05600
WASHER
|
4 | |
| 23 |
97095-08020
BOLT
|
2 |
5.15 AED
Check price & stock on WhatsApp
|
| 24 |
37-14
) 25 97095-08040 BOLT
|
1 | |
| 24 |
92995-08100
WASHER
|
2 | |
| 26 |
92995-08100
WASHER
|
1 | |
| 27 |
90387-09010
COLLAR
|
1 | |
| 28 |
6TA-44117-00
BRACKET
|
1 | |
| 29 |
97027-08016
BOLT
|
2 | |
| 30 |
92907-08600
WASHER, PLATE
|
2 |
