ME432STIP2

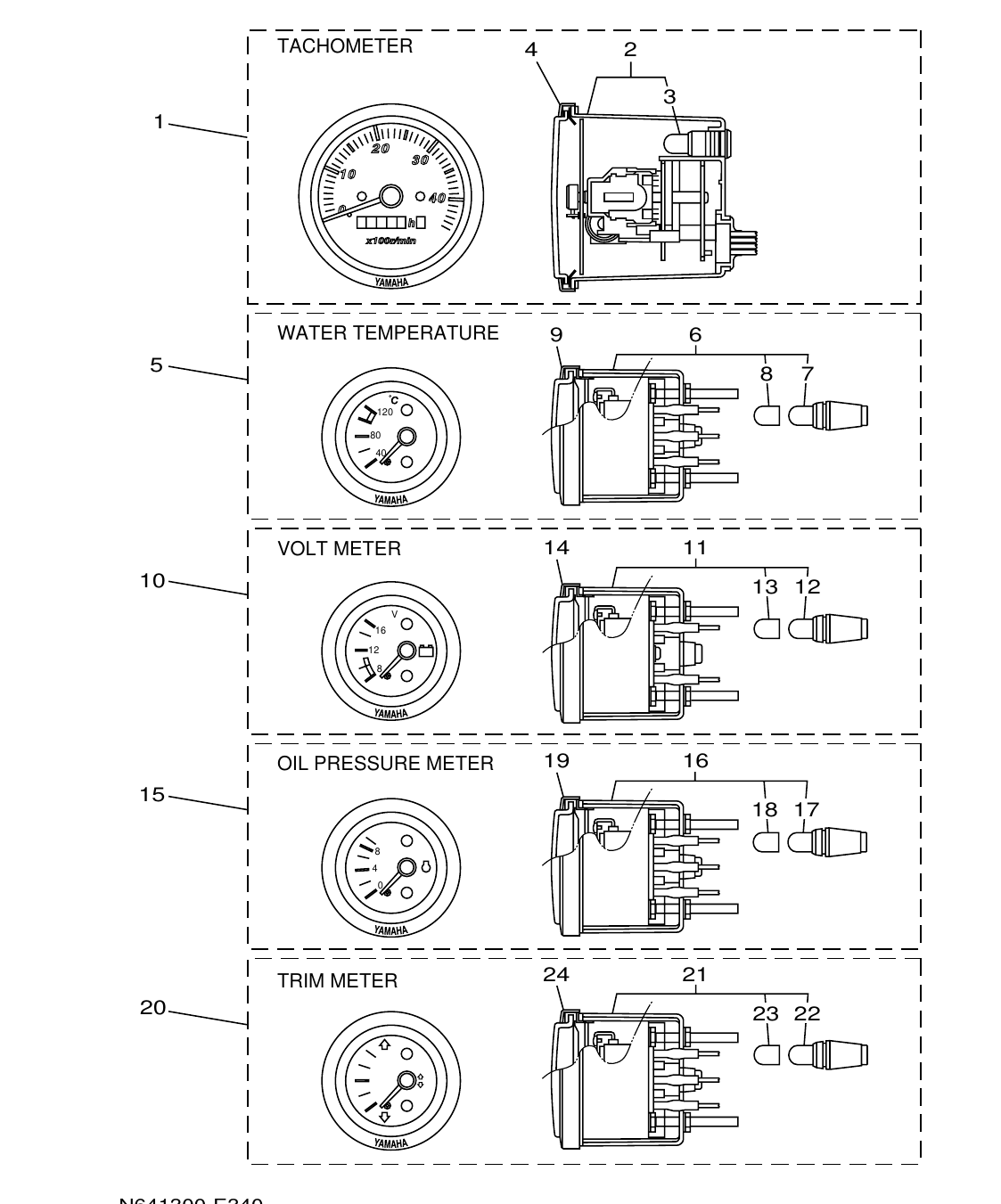

Section 34: METER (v2)
Model code: N701
Parts list
Section 34
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
N64-83600-00
METER PANEL ASSY.
|
1 | |
| 2 |
N64-83540-00
.TACHOMETER ASSY
|
1 | |
| 3 |
6Y5-83517-00
..BULB (T10, 12V-1.7W)
|
1 | |
| 4 |
N64-83612-10
.COVER, METER PANEL
|
1 | |
| 5 |
N64-83600-20
METER PANEL ASSY.
|
1 | |
| 6 |
N64-83590-00
.WATER TEMPERATURE ASSY
|
1 | |
| 7 |
6YF-83518-00
..BULB, METER (T6.5, 14V-1.4W)
|
1 | |
| 8 |
6YF-83606-00
..CAP, BULB
|
1 | |
| 9 |
N64-83612-00
.COVER, METER PANEL
|
1 | |
| 10 |
N64-83600-30
METER PANEL ASSY.
|
1 | |
| 11 |
N64-83503-00
.VOLTMETER ASSY
|
1 | |
| 12 |
6YF-83518-00
..BULB, METER (T6.5, 14V-1.4W)
|
1 | |
| 13 |
6YF-83606-00
..CAP, BULB
|
1 | |
| 14 |
N64-83612-00
.COVER, METER PANEL
|
1 | |
| 15 |
N64-83600-40
METER PANEL ASSY.
|
1 | |
| 16 |
N64-83650-00
.OIL PRESSURE METER ASSY
|
1 | |
| 17 |
6YF-83518-00
..BULB, METER (T6.5, 14V-1.4W)
|
1 | |
| 18 |
6YF-83606-00
..CAP, BULB
|
1 | |
| 19 |
N64-83612-00
.COVER, METER PANEL
|
1 | |
| 20 |
N64-83600-50
METER PANEL ASSY.
|
1 | |
| 21 |
N64-83670-00
.TRIM METER ASSY.
|
1 | |
| 22 |
6YF-83518-00
..BULB, METER (T6.5, 14V-1.4W)
|
1 | |
| 23 |
6YF-83606-00
..CAP, BULB
|
1 | |
| 24 |
N64-83612-00
.COVER, METER PANEL
|
1 |
