ME432STIP2

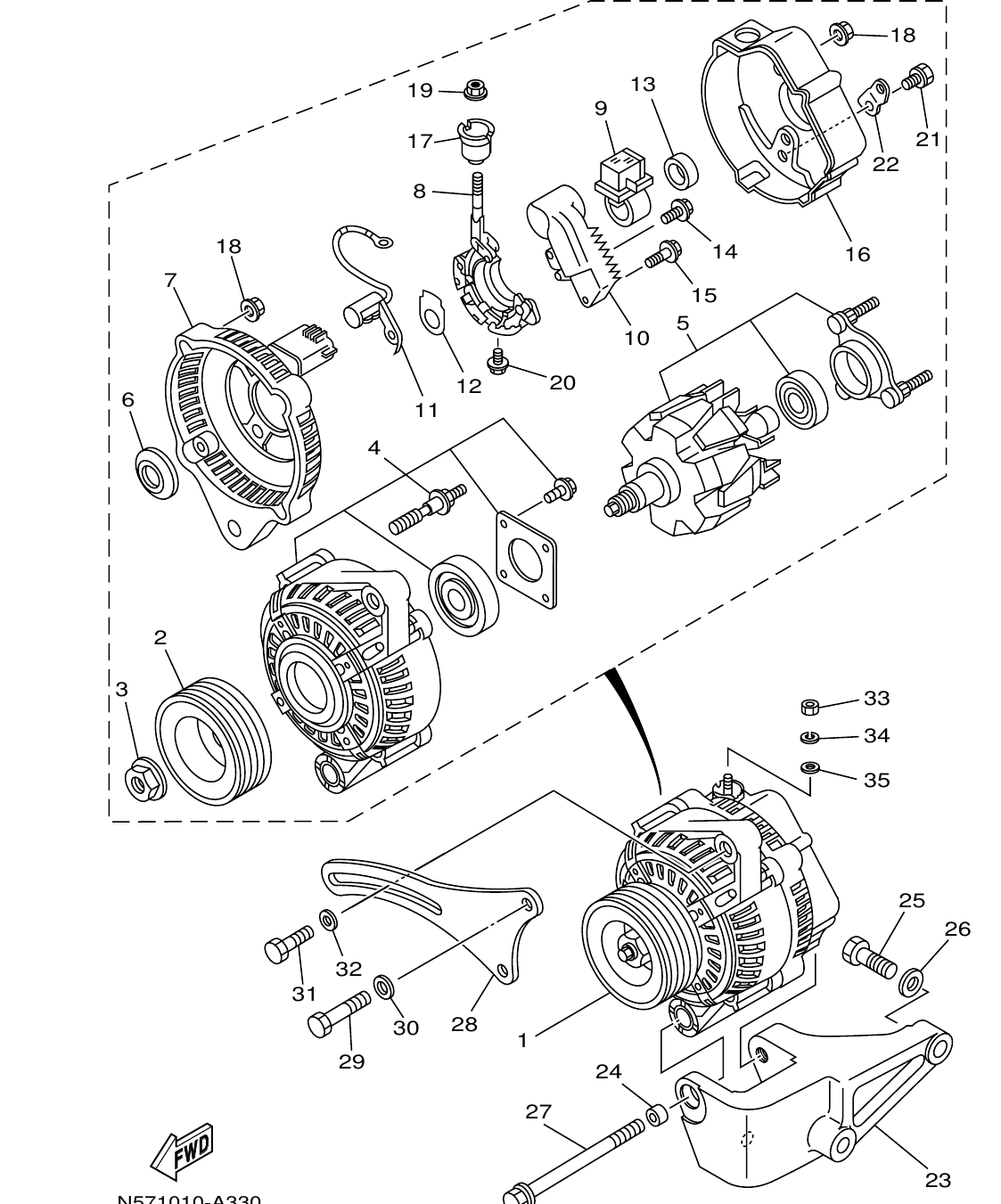

Section 35: GENERATOR (v2)
Model code: N701
Parts list
Section 35
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
6TA-81600-01
A.C. GENARATOR ASSY (12V-80A)
DENSO(101211-5300)
|
1 | |
| 2 |
6TA-81605-00
.PULLEY ASSY
(021041-6680)
|
1 | |
| 3 |
6TA-81608-00
.PULLEY NUT ASSY
(949056-2520)
|
1 | |
| 4 |
6TA-81635-00
.FLAME, DRIVE END
(021400-6030)
|
1 | |
| 5 |
6TA-81650-00
.ROTOR ASSY
(021200-5000)
|
1 | |
| 6 |
6TA-81675-00
.WASHER, SPECIAL
(021542-0160)
|
1 | |
| 7 |
6TA-81636-00
.FLAME END, REAR
(021501-6550)
|
1 | |
| 8 |
6TA-81606-00
.HOLDER ASSY
(021580-4510)
|
1 | |
| 9 |
6TA-81613-00
.HOLDER, BRUSH
(021620-2720)
|
1 | |
| 10 |
6TA-81910-00
.VOLTAGE REGULATOR ASSY
(126000-1670)
|
1 | |
| 11 |
6TA-8162G-00
.BUSH, TERMINAL 1
(021605-1970)
|
4 | |
| 12 |
6TA-81642-00
.O-RING
(021626-0190)
|
1 | |
| 13 |
6TA-81638-00
.OIL SEAL
(021626-0250)
|
1 | |
| 14 |
3FV-81645-00
.SCREW
(949006-5460)
|
3 | |
| 15 |
6TA-81646-00
.SCREW 2
(949007-5110)
|
2 | |
| 16 |
6TA-81604-00
.COVER ASSY
(021551-2260)
|
1 | |
| 17 |
6TA-8162H-00
.BUSH, TERMINAL 2
(021605-2070)
|
1 | |
| 18 |
6TA-81657-00
.NUT, GENERATOR
(949056-2481)
|
7 | |
| 19 |
6TA-8162K-00
.NUT, TERMINAL
(949056-3080)
|
1 | |
| 20 |
6TA-81647-00
.SCREW 3
(949007-6280)
|
4 | |
| 21 |
6TA-81648-00
.SCREW 4
(949006-6401)
|
1 | |
| 22 |
6TA-8165G-00
.PLTE, TERMINAL
(021602-5230)
|
1 | |
| 23 |
6TA-81681-00
BRACKET, A.C. GENERATOR
|
1 | |
| 24 |
90387-10M07
COLLAR
|
1 | |
| 25 |
97027-12035
BOLT
|
2 | |
| 26 |
92907-12600
WASHER, PLATE
|
2 | |
| 27 |
95827-10090
BOLT, FLANGE
|
1 | |
| 28 |
6TA-87182-00
BAR,BELT ADJUST
|
1 | |
| 29 |
97027-10055
BOLT
|
2 | |
| 30 |
92907-10600
WASHER, PLATE
|
2 |
2.98 AED
Check price & stock on WhatsApp
|
| 31 |
97027-08025
BOLT
|
1 | |
| 32 |
90201-084K5
WASHER, PLATE
|
1 | |
| 33 |
95317-06600
NUT
|
1 |
2.98 AED
Check price & stock on WhatsApp
|
| 34 |
92907-06100
WASHER, SPRING
|
1 | |
| 35 |
92907-06200
WASHER
|
1 |
