ME432STIP2

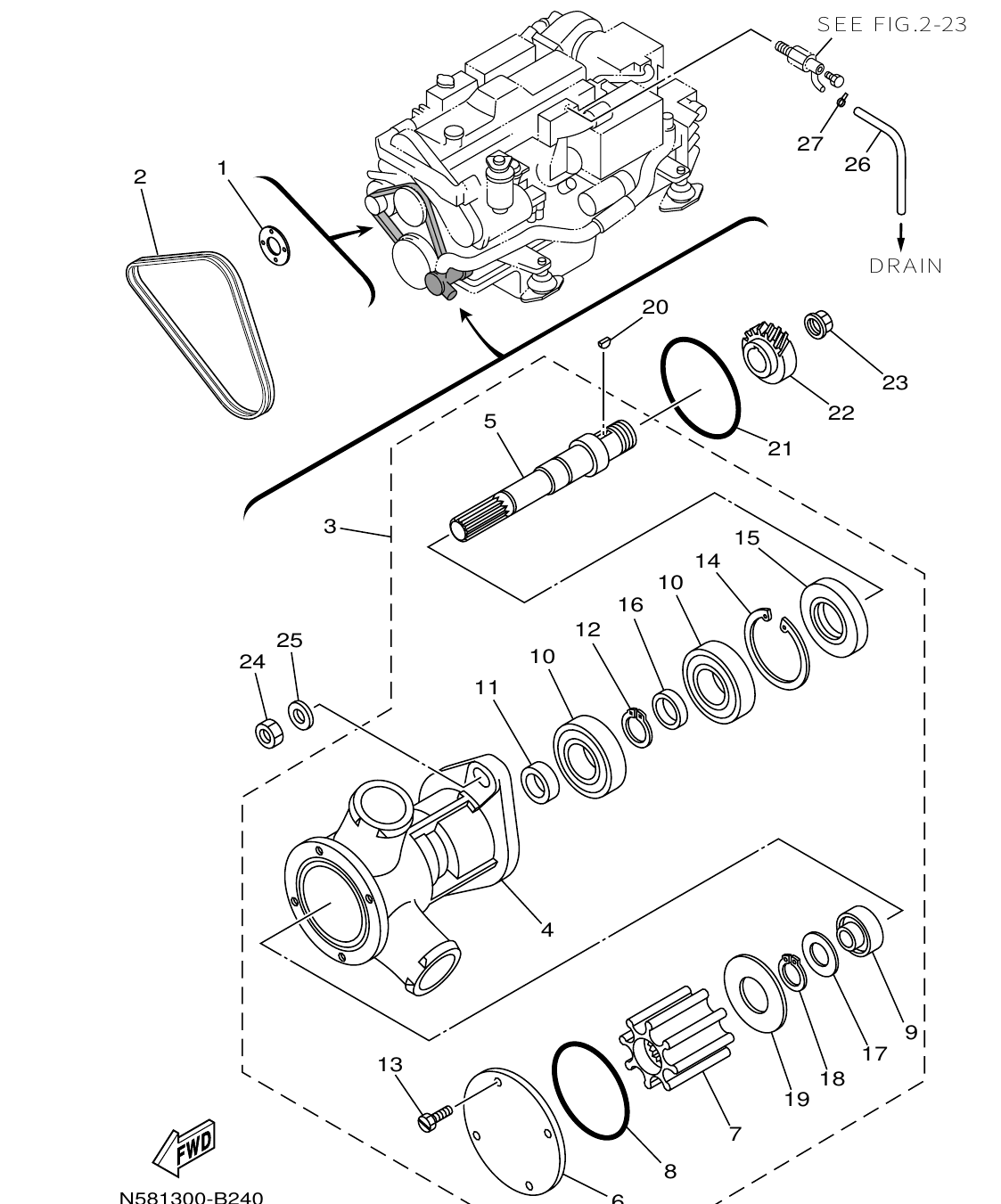

Section 24: WATER PUMP FOR SEA WATER (v2)
Model code: N701
Parts list
Section 24
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
6TD-11445-00
SPACER
|
1 | |
| 2 |
6TA-12444-00
BELT 1
|
2 | |
| 3 |
N60-12402-00
SEA WATER PUMP SUB-ASSY
|
1 | |
| 4 |
N60-12421-00
.HOUSING, WATER PUMP
|
1 | |
| 5 |
81300-B240
|
6 | |
| 5 |
N57-12426-00
.SHAFT
|
1 | |
| 6 |
N57-12422-00
.COVER, HOUSING
|
1 | |
| 7 |
6TA-12457-00
.IMPELLER
|
1 | |
| 8 |
6TA-5111K-00
.O-RING
|
1 | |
| 9 |
N57-12438-00
.SEAL, MECHANICAL
|
1 | |
| 10 |
N57-1245F-00
.BEARING, WATER PUMP
|
2 | |
| 11 |
N57-13631-00
.SEAL, RUBBER 1
|
1 | |
| 12 |
N57-1243H-00
.CIR-CLIP, PUMP 1
|
1 | |
| 13 |
6TA-A9902-00
.SCREW, WATER PUMP
|
4 | |
| 14 |
N57-1243J-00
.CIR-CLIP, PUMP 2
|
1 | |
| 15 |
N57-1243M-00
.SEAL, WATER PUMP
|
1 | |
| 16 |
N57-1244A-00
.INSERT
|
1 | |
| 17 |
N57-12456-00
.WASHER
|
1 | |
| 18 |
N57-12437-00
.STOPPER
|
1 | |
| 19 |
N57-12431-00
.PLATE,WEAR
|
1 | |
| 20 |
YU9-51611-04-13
KEY
|
1 | |
| 21 |
93210-64488
O-RING
|
1 | |
| 22 |
YU2-93511-70-10
GEAR, VACUUM PUMP
|
1 | |
| 23 |
YU9-00990-51-85
NUT
|
1 | |
| 24 |
95317-10600
NUT
|
2 | |
| 25 |
90201-10M05
WASHER, PLATE
|
2 |
11.92 AED
Check price & stock on WhatsApp
|
| 26 |
6TA-85828-00
HOSE, DRAIN 1
|
1 | |
| 27 |
90467-09006
CLIP
|
1 |
