ME432STIP2

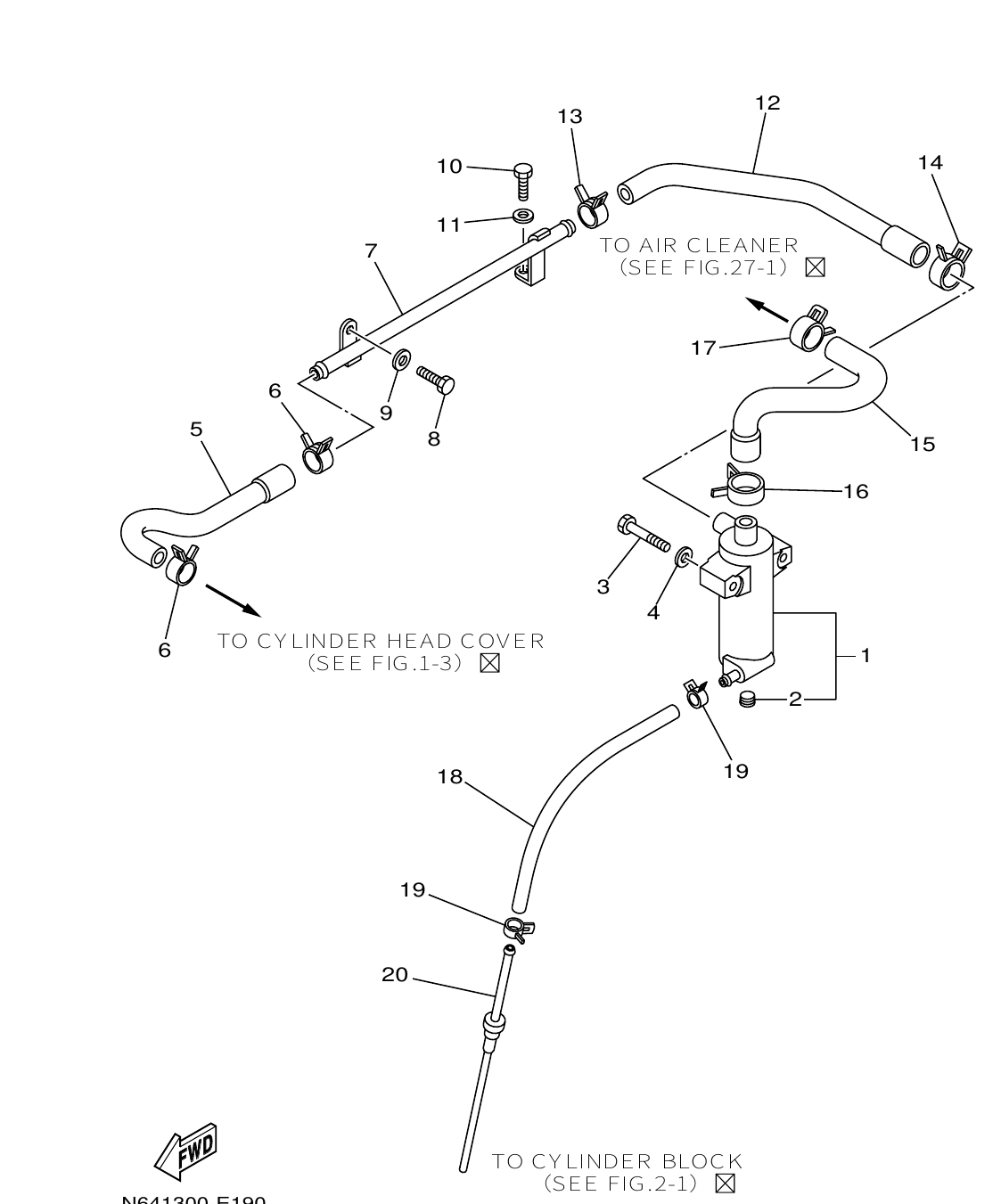

Section 19: VENTILATION (v2)
Model code: N701
Parts list
Section 19
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
N57-15370-00
BREATHER ASSY
|
1 | |
| 2 |
90344-54040
.PLUG, TAPER SCREW
|
1 | |
| 3 |
97027-08050
BOLT
|
2 | |
| 4 |
92907-08600
WASHER, PLATE
|
2 | |
| 5 |
N57-15394-00
PIPE, OIL VENT
|
1 | |
| 6 |
90467-19160
CLIP
|
2 | |
| 7 |
N57-15373-00
PIPE, BREATHER
|
1 | |
| 8 |
97027-08020
BOLT
|
1 | |
| 9 |
92907-08600
WASHER, PLATE
|
1 | |
| 10 |
97027-06012
BOLT
|
1 | |
| 11 |
92907-06600
WASHER, PLATE
|
1 |
2.98 AED
Check price & stock on WhatsApp
|
| 12 |
N57-1531A-00
HOSE, BREATHER 1
|
1 | |
| 13 |
90467-19160
CLIP
|
1 | |
| 14 |
1-3
）
|
1 | |
| 14 |
90467-20154
CLIP
|
1 | |
| 15 |
N57-1532A-00
HOSE, BREATHER 2
|
1 | |
| 16 |
90467-26147
CLIP
|
1 | |
| 17 |
90467-23177
CLIP
|
1 | |
| 18 |
N57-13465-00
HOSE, OIL 2
|
1 | |
| 19 |
90467-14057
CLIP
|
2 | |
| 20 |
6TA-13405-01
OIL PIPE COMP. 1
|
1 |
