ME432STIP2

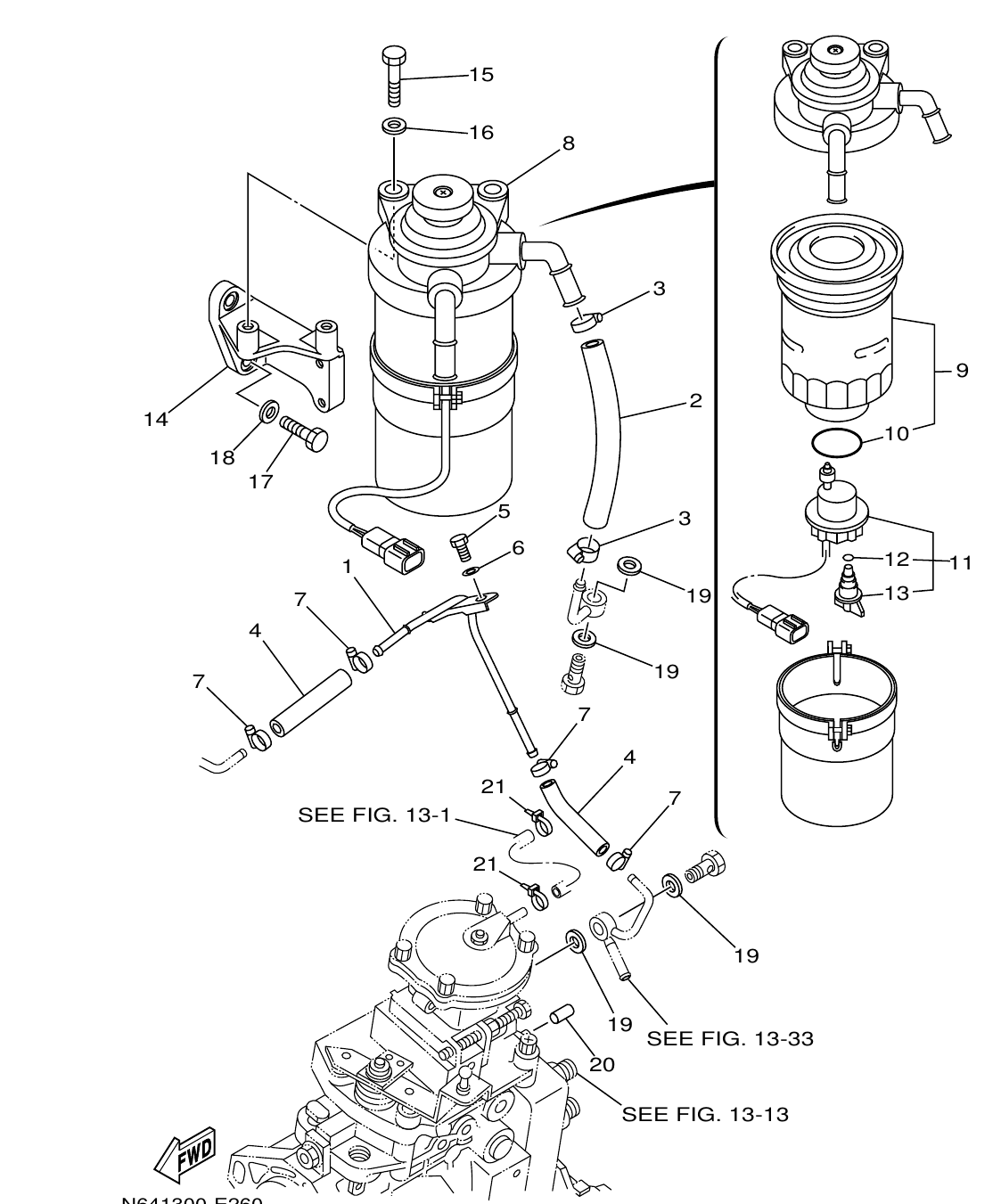

Section 26: FUEL FILTER (v2)
Model code: N701
Parts list
Section 26
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
YU2-37631-70-40
PIPE, NOZZLE LEAKEGE,NO.3
|
1 | |
| 2 |
N60-13971-00
PIPE, FUEL 1
|
1 | |
| 3 |
90450-16007
HOSE CLAMP ASSY
|
2 | |
| 4 |
N57-14294-00
HOSE
|
2 | |
| 5 |
97027-08016
BOLT
|
1 | |
| 6 |
92907-08600
WASHER, PLATE
|
1 | |
| 7 |
90460-16M18
CLAMP, HOSE
|
4 | |
| 8 |
N57-24560-10
FILTER ASSY
(23300-17501)
|
1 | |
| 9 |
YU2-33906-44-80
.FILTER ASSY,FUEL
|
1 | |
| 10 |
YU2-33446-40-10
..O-RING
|
1 | |
| 11 |
6TA-24590-00
.SWITCH, LEVEL WARNIG
|
1 | |
| 12 |
YU2-33445-40-10
..O-RING
|
1 | |
| 13 |
YU2-33226-40-10
..BOLT,DRAIN
|
1 | |
| 14 |
N60-24566-00
BRACKET, FILTER
|
1 | |
| 15 |
97027-08035
BOLT
|
2 | |
| 16 |
92907-08600
WASHER, PLATE
|
2 | |
| 17 |
97027-08025
BOLT
|
2 | |
| 18 |
92907-08600
WASHER, PLATE
|
2 | |
| 19 |
90430-12234
GASKET
|
4 | |
| 20 |
N60-2723E-00
CAP
|
1 | |
| 21 |
90465-13M11
CLAMP
|
2 |
