ME432STIP2

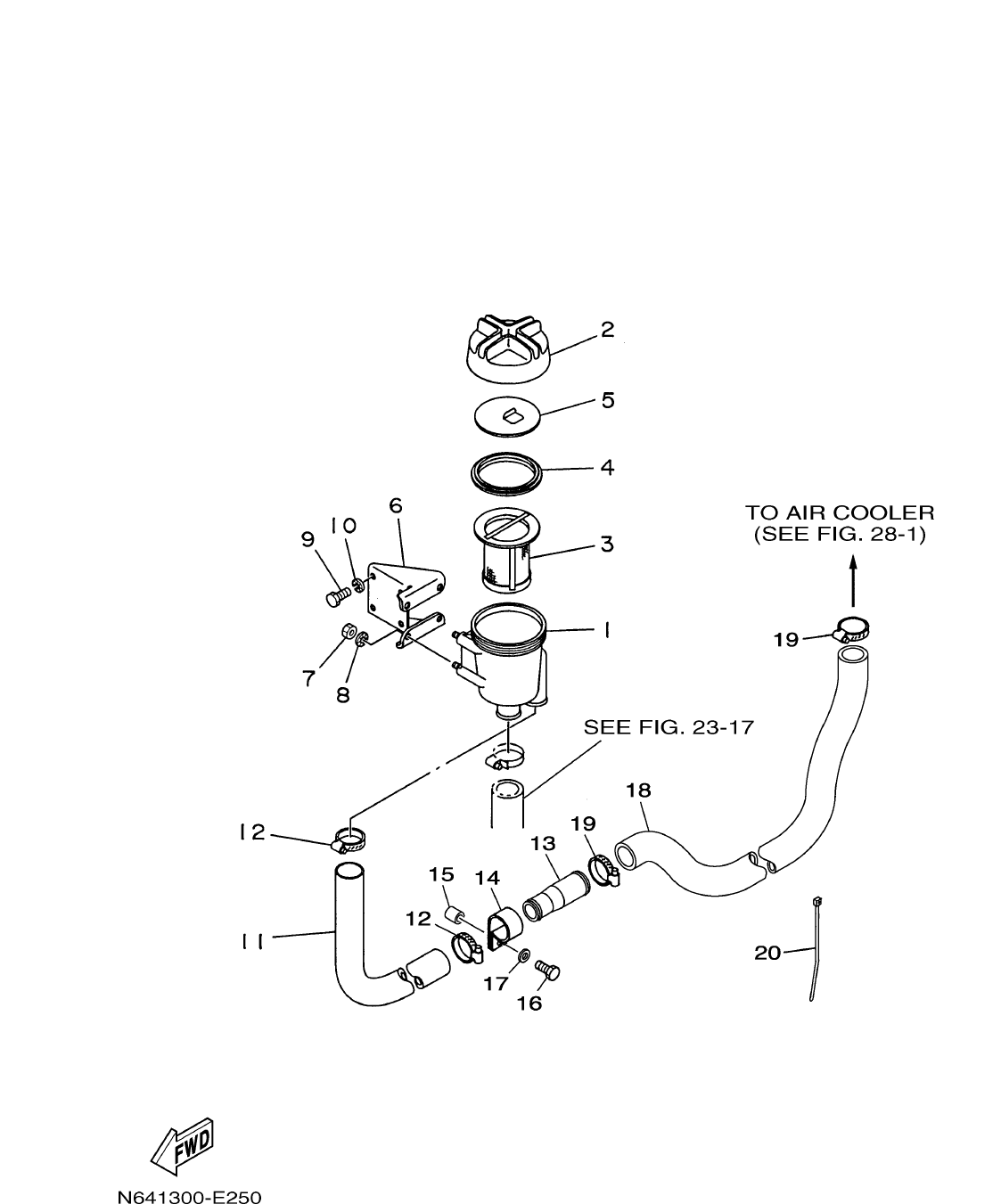

Section 25: WATER FILTER (v2)
Model code: N701
Parts list
Section 25
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
6TA-76145-01
CASE
|
1 | |
| 2 |
6TA-51381-01
COVER
|
1 | |
| 3 |
6TA-76141-00
ELEMENT,WATER FILTER
|
1 | |
| 4 |
6TA-76143-00
GASKET 1
|
1 | |
| 5 |
6TA-76168-01
PLATE
|
1 | |
| 6 |
6TA-76146-00
BRACKET
|
1 | |
| 7 |
95317-08600
NUT
|
4 | |
| 8 |
92907-08600
WASHER, PLATE
|
4 | |
| 9 |
97027-08020
BOLT
|
3 | |
| 10 |
92907-08600
WASHER, PLATE
|
3 | |
| 11 |
N51-12589-01
HOSE 6
|
1 | |
| 12 |
90450-40009
HOSE CLAMP ASSY
|
2 | |
| 13 |
N51-12483-00
PIPE 3
|
1 | |
| 14 |
90461-14118
CLAMP
|
1 | |
| 15 |
90387-08258
COLLAR
|
1 | |
| 16 |
97027-08030
BOLT
|
1 | |
| 17 |
92907-08600
WASHER, PLATE
|
1 | |
| 18 |
N64-12551-00
HOSE 7
|
1 | |
| 19 |
90450-32008
HOSE CLAMP ASSY
|
2 | |
| 20 |
90464-20258
CLAMP
|
1 |
