ME432STIP2

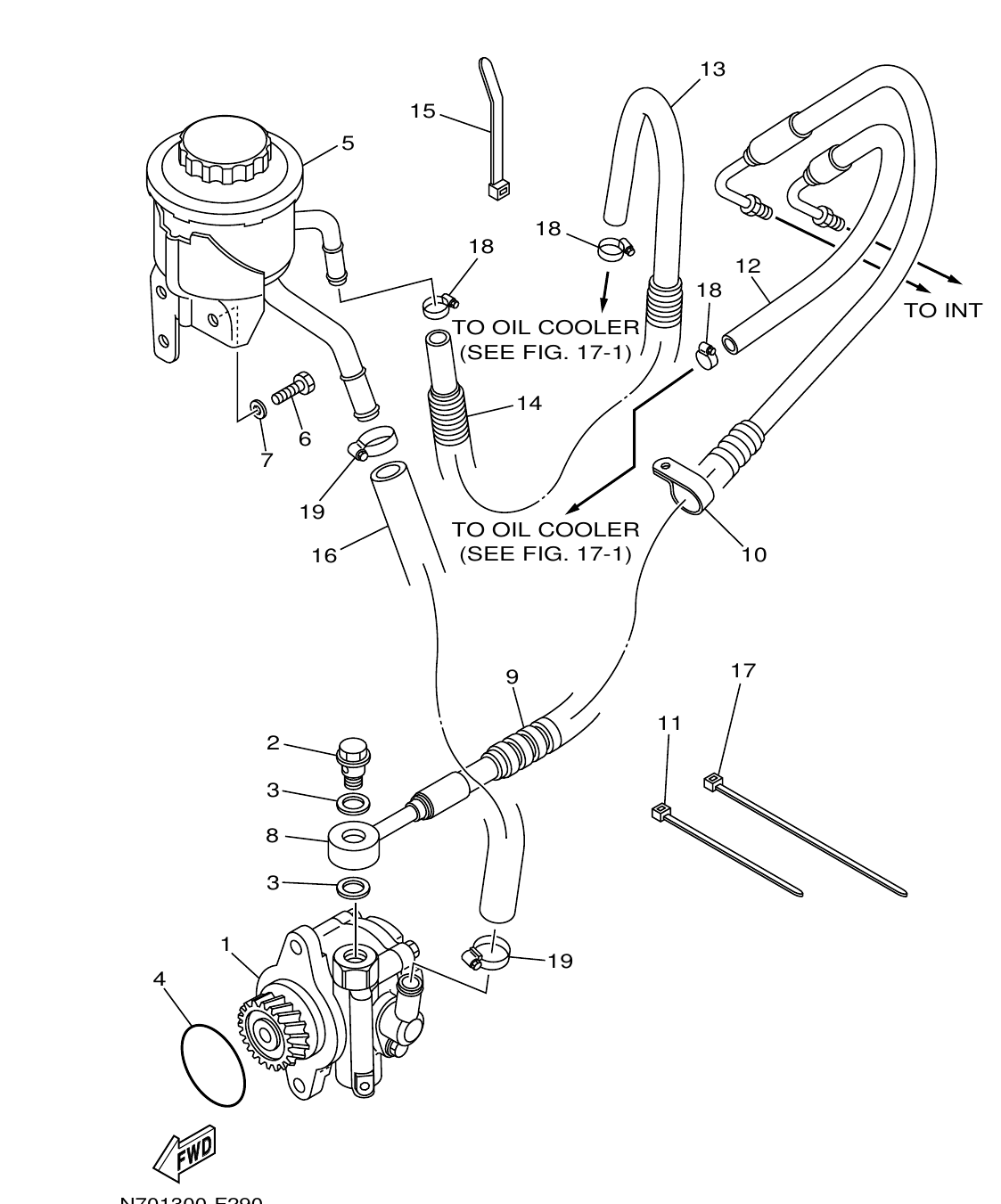

Section 29: POWER STEERING OIL PUMP (v2)
Model code: N701
Parts list
Section 29
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
N60-7610B-00
POWER STEERING PUMP SUB ASSY
(44310-60410)
|
1 | |
| 2 |
N60-17056-00
BOLT, UNION
(96341-41603)
|
1 | |
| 3 |
N60-13475-00
GASKET
(44327-12060)
|
2 | |
| 4 |
93210-626A7
O-RING
|
1 | |
| 5 |
N60-13430-00
OIL RESERVOIR ASSY
(44360-60220)
|
1 | |
| 6 |
97027-08016
BOLT
|
3 | |
| 7 |
92907-08600
WASHER, PLATE
|
3 | |
| 8 |
N60-7617E-00
HOSE, POWER STEERING
|
1 | |
| 9 |
N60-46293-00
TUBE
|
1 | |
| 10 |
90461-10091
CLAMP
|
1 | |
| 11 |
17-1
) 10 12 6TA-7617F-00 HOSE, POWER STEERING
|
1 | |
| 11 |
90465-15M54
CLAMP
|
1 | |
| 13 |
6TA-7617G-00
HOSE, POWER STEERING
|
1 | |
| 14 |
N60-48317-00
TUBE
|
1 | |
| 15 |
90465-13M36
CLAMP
|
1 | |
| 16 |
N60-7617G-00
HOSE, POWER STEERING
|
1 | |
| 17 |
90465-13M60
CLAMP
|
1 | |
| 18 |
90460-16M18
CLAMP, HOSE
|
3 | |
| 19 |
90460-16192
CLAMP, HOSE
|
2 |
