ME432STIP2

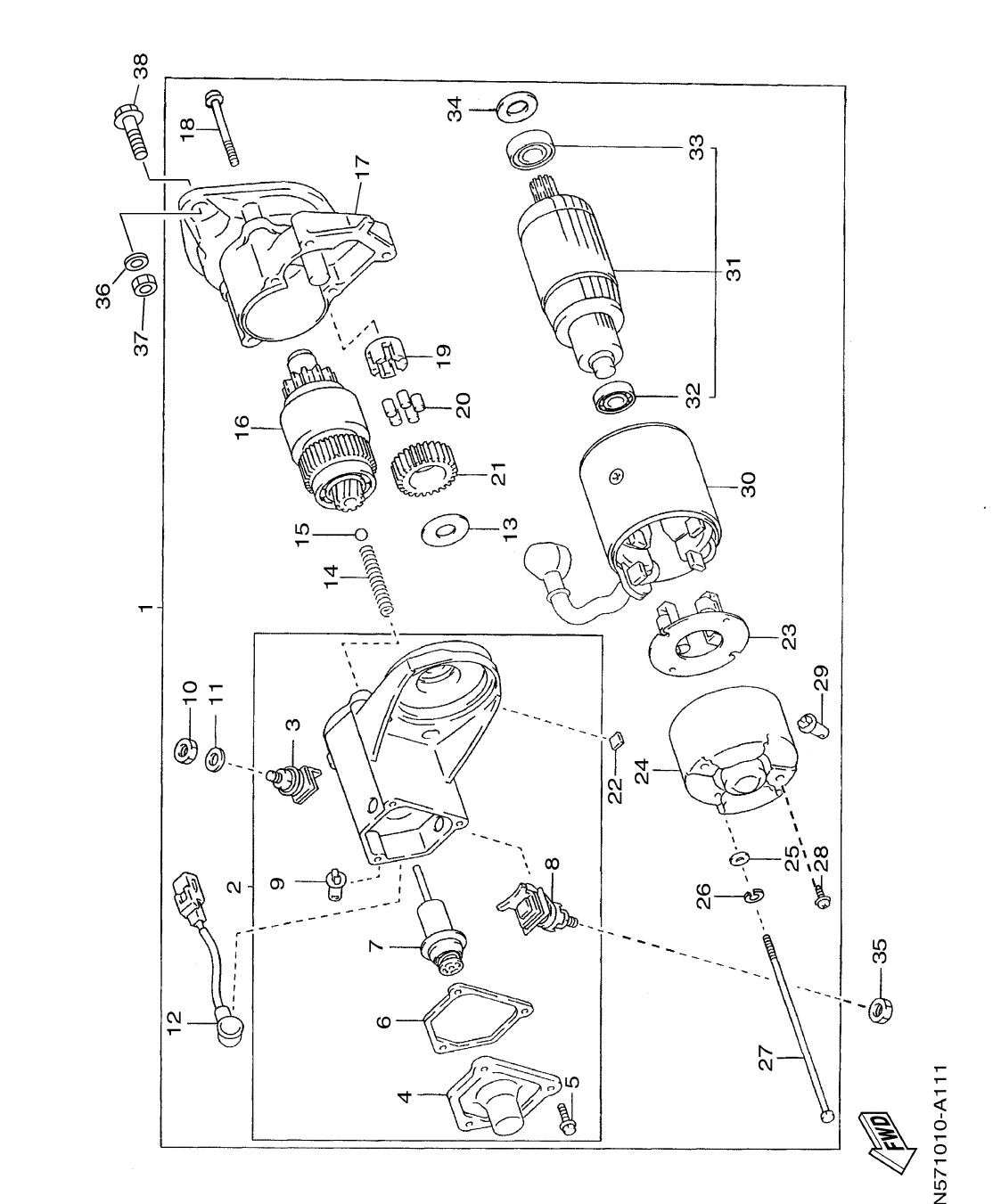

Section 11: STARTING MOTOR (v2)
Model code: N701
Parts list
Section 11
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
YU2-81001-70-60
STARTER ASSY (12V-2.5KW)
|
1 | |
| 2 |
YU2-81501-70-60
.SWITCH ASSY,MAGNET SWITCH
|
1 | |
| 3 |
YU2-82265-42-20
..STARTER KIT,MOTOR TERMINAL
|
1 | |
| 4 |
YU2-81591-70-30
..COVER,MAGNET SWITCH
|
1 | |
| 5 |
YU9-00990-44-73
..SCREW
|
3 | |
| 6 |
YU2-81755-63-10
..GASKET,MAGNET SWITCH COVER
|
1 | |
| 7 |
YU2-82351-70-30
..PLUNGER,MAGNET SWITCH
|
1 | |
| 8 |
YU2-82265-43-20
..STARTER KIT,BATTERY TERMINAL
|
1 | |
| 9 |
YU2-81994-60-80
..COVER,STARTER END FRAME
|
1 | |
| 10 |
YU9-00922-10-01
.NUT,W/WASHER
|
2 | |
| 11 |
YU9-00990-23-25
.WASHER
|
1 | |
| 12 |
YU2-81395-42-51
.WIRE,LEAD,NO.1(FOR STARTER)
|
1 | |
| 13 |
YU2-82227-70-90
.WASHER,STARTER IDLE GEAR CLUTCH
|
1 | |
| 14 |
YU2-81657-70-90
.SPRING,STRATER MAGNET SWITCH
|
1 | |
| 15 |
YU9-00991-20-09
.BALL
|
1 | |
| 16 |
YU2-80111-70-20
.CLUTCH SUB-ASSY,STARTER
|
1 | |
| 17 |
YU2-81151-70-20
.HOUSING ASSY,STARTER DRIVE
|
1 | |
| 18 |
YU9-00990-02-18
.SCREW
|
3 | |
| 19 |
YU2-82295-60-80
.RETAINER,STARTER IDLE GEAR
|
1 | |
| 20 |
YU2-82285-60-80
.ROLLER,STARTER IDLE
|
1 | |
| 21 |
YU2-82547-70-90
.GEAR,STARTER IDLE
|
1 | |
| 22 |
YU2-81187-70-90
.PLATE (FOR STARTER YOKE)
|
1 | |
| 23 |
YU2-81407-70-90
.HOLDER ASSY,STARTER BRUSH
|
1 | |
| 24 |
YU2-81301-70-30
.FRAME ASSY,STARTER COMMUTATOR
|
1 | |
| 25 |
YU9-00990-14-36
.WASHER
|
2 | |
| 26 |
YU9-45110-06-00
.WASHER,SPRING
|
2 | |
| 27 |
YU9-00990-42-07
.BOLT,THROUGH
|
2 | |
| 28 |
YU9-00990-02-54
.SCREW,W/WASHER
|
2 | |
| 29 |
YU2-81995-41-90
.COVER,STARTER END FRAME
|
1 | |
| 30 |
YU2-81205-60-81
.YOKE ASSY,STARTER
|
1 | |
| 31 |
YU2-81604-70-40
.ARMATURE ASSY,STARTER
|
1 | |
| 32 |
YU9-00991-01-07
..BEARING,STARTER ARMATURE
FRONT
|
1 | |
| 33 |
YU9-00991-01-19
..BEARING,STARTER ARMATURE
REAR
|
1 | |
| 34 |
YU9-00990-22-05
.WASHER
|
1 | |
| 35 |
YU9-01791-01-95
NUT
|
1 | |
| 36 |
YU9-46121-12-00
WASHER
|
1 | |
| 37 |
YU9-41306-12-00
NUT
|
1 | |
| 38 |
YU9-16196-12-45
BOLT,W/WASHER
|
1 |
