ME432STIP2

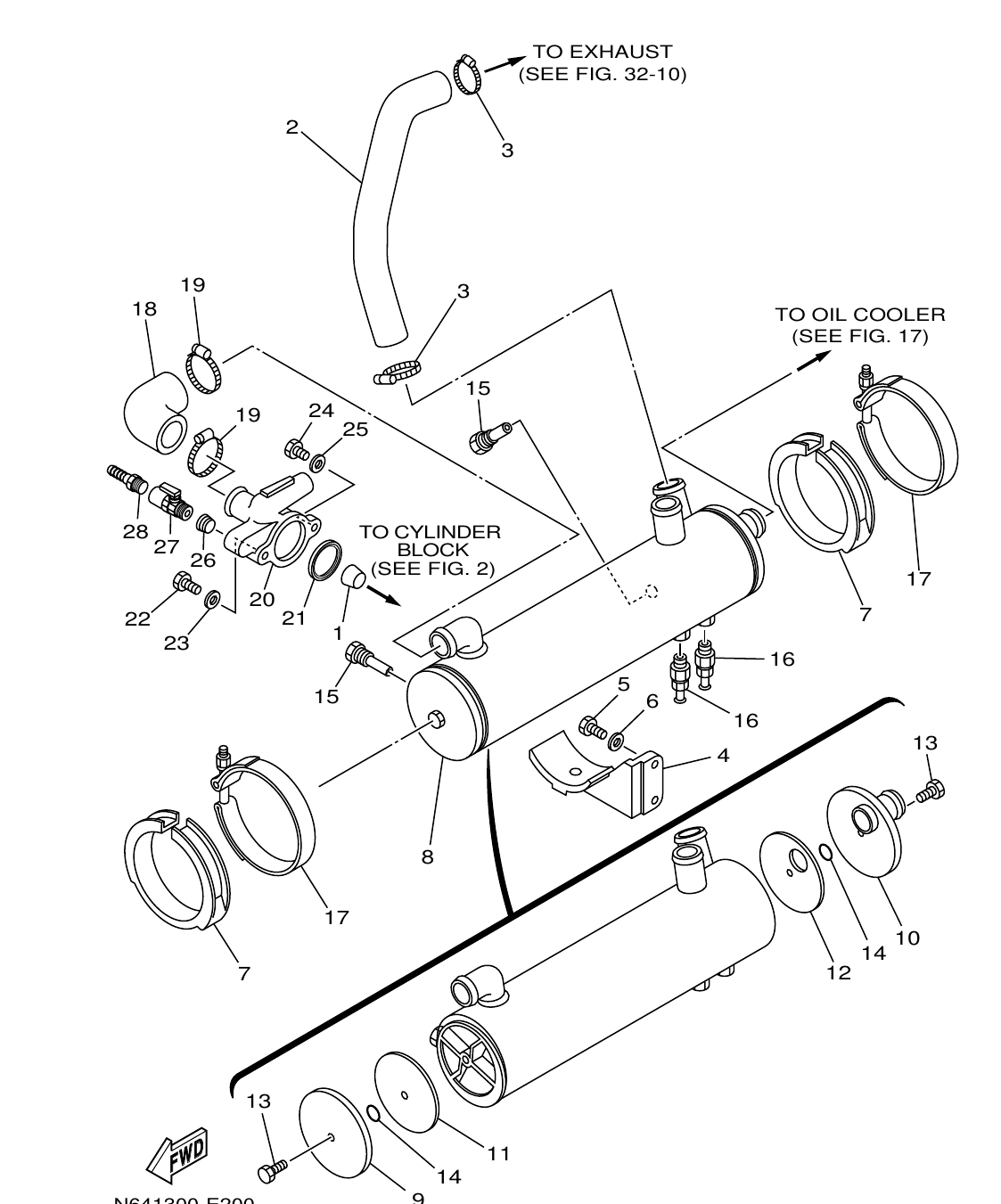

Section 20: WATER COOLER (v2)
Model code: N701
Parts list
Section 20
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
90336-23M08
PLUG, TAPER
|
1 | |
| 2 |
N64-12588-00
HOSE 5
|
1 | |
| 3 |
90450-32008
HOSE CLAMP ASSY
|
2 | |
| 4 |
N57-12518-00
BRACKET, WATER COOLER
|
1 | |
| 5 |
97027-10025
BOLT
|
2 | |
| 6 |
92907-10600
WASHER, PLATE
|
2 |
2.98 AED
Check price & stock on WhatsApp
|
| 7 |
6TA-22928-00
DAMPER
|
2 | |
| 8 |
N64-12500-00
WATER COOLER ASSY
|
1 | |
| 9 |
N64-1246A-00
.COVER 1
|
1 | |
| 10 |
N60-1246A-00
.COVER 1
|
1 | |
| 11 |
N64-12514-00
.GASKET
|
1 | |
| 12 |
N60-12514-00
.GASKET
|
1 | |
| 13 |
N60-12615-00
.BOLT
|
2 | |
| 14 |
N60-12439-00
.O-RING
|
2 | |
| 15 |
N51-11325-01
ANODE 1
|
2 | |
| 16 |
N60-12560-00
DRAIN COCK ASSY.
|
2 | |
| 17 |
90460-99M16
CLAMP, HOSE
|
2 | |
| 18 |
N57-1243E-00
HOSE 2
|
1 | |
| 19 |
90450-32008
HOSE CLAMP ASSY
|
2 | |
| 20 |
N57-12446-00
JOINT
|
1 | |
| 21 |
6TA-12434-01
GASKET
|
1 | |
| 22 |
97027-08045
BOLT
|
1 | |
| 23 |
92907-08600
WASHER, PLATE
|
1 | |
| 24 |
97027-08025
BOLT
|
1 | |
| 25 |
92907-08600
WASHER, PLATE
|
1 | |
| 26 |
90344-53003
PLUG, TAPER SCREW
|
1 | |
| 27 |
N58-1249A-00
COCK ASSY
|
2 | |
| 28 |
N58-24537-00
NIPPLE
|
2 |
