ME432STIP2

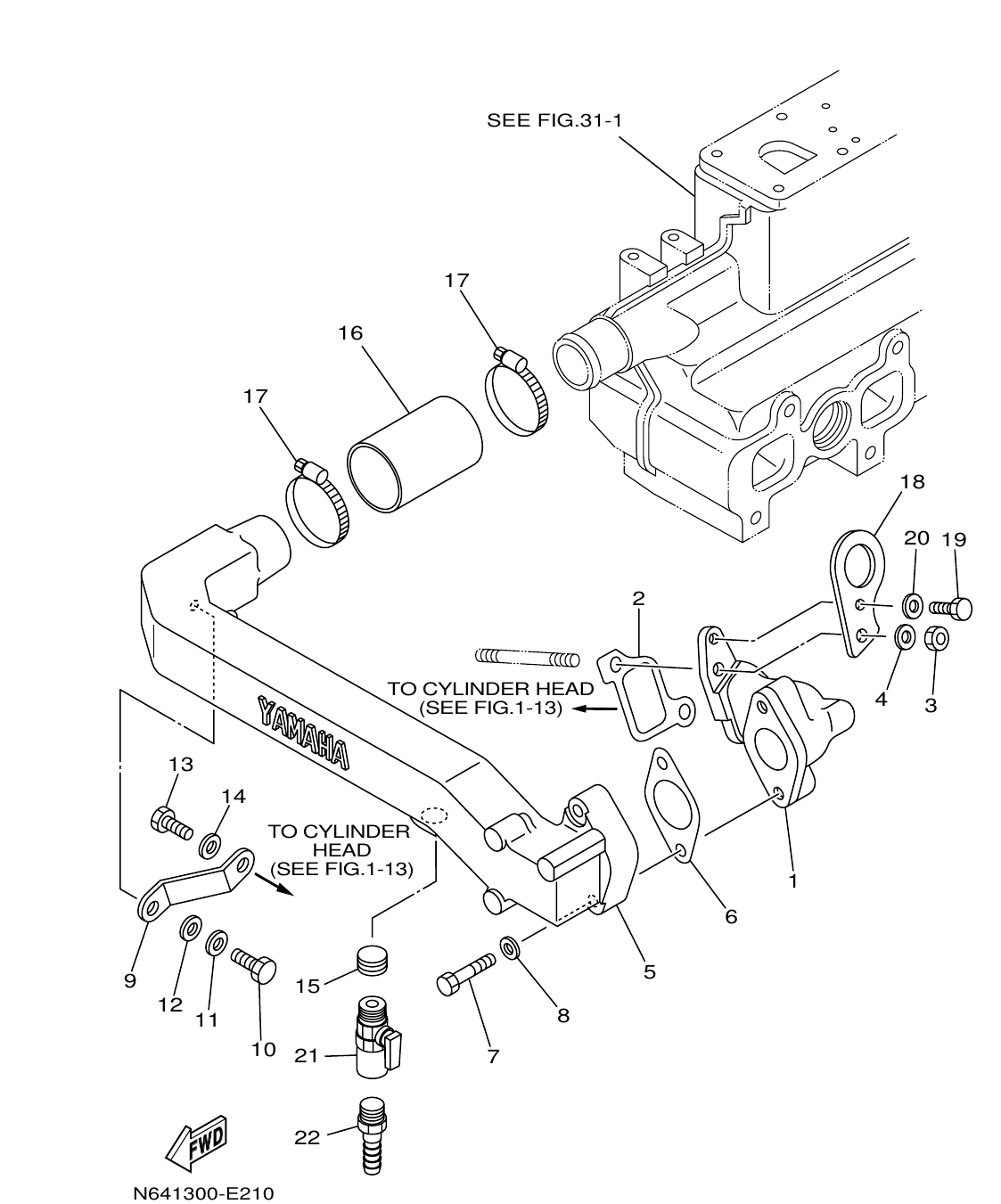

Section 21: WATER COOLING 1 (v2)
Model code: N701
Parts list
Section 21
| Ref | Part No. / Description | Qty | Buy |
|---|---|---|---|
| 1 |
6TA-12479-00
JOINT
|
1 | |
| 2 |
6TA-12565-01
GASKET, WATER PIPE
|
1 | |
| 3 |
95337-08600
NUT
|
2 |
6.62 AED
Check price & stock on WhatsApp
|
| 4 |
92907-08600
WASHER, PLATE
|
2 | |
| 5 |
N57-12484-01
PIPE 4
|
1 | |
| 6 |
6TA-12575-01
GASKET, FLG
|
1 | |
| 7 |
97027-08040
BOLT
|
2 | |
| 8 |
92907-08600
WASHER, PLATE
|
2 | |
| 9 |
N57-12443-00
STAY
|
1 | |
| 10 |
97027-08020
BOLT
|
1 | |
| 11 |
92907-08600
WASHER, PLATE
|
1 | |
| 12 |
92907-08200
WASHER
|
1 |
2.98 AED
Check price & stock on WhatsApp
|
| 13 |
97027-10025
BOLT
|
1 | |
| 14 |
92907-10600
WASHER, PLATE
|
1 |
2.98 AED
Check price & stock on WhatsApp
|
| 15 |
1-13
) 4 3 16 6TA-1243E-00 HOSE,2
|
1 | |
| 15 |
90344-53003
PLUG, TAPER SCREW
|
1 | |
| 17 |
90450-32008
HOSE CLAMP ASSY
|
2 | |
| 18 |
N64-1111D-00
HANGER, SETTING
|
1 | |
| 19 |
97027-08020
BOLT
|
2 | |
| 20 |
92907-08600
WASHER, PLATE
|
2 | |
| 21 |
N58-1249A-00
COCK ASSY
|
1 | |
| 22 |
N58-24537-00
NIPPLE
|
1 |
