E40G’04
Section 18: BRACKET 2 (v2)
Engine sections in this catalog
TOP COWLING
ELECTRICAL 2
ELECTRICAL 3
STARTING MOTOR
BOTTOM COWLING
STEERING
CONTROL 1
CONTROL 2
BRACKET 1
BRACKET 2
UPPER CASING 1
CYLINDER & CRANKCASE
UPPER CASING 2
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
LOWER CASING & DRIVE 3
LOWER CASING & DRIVE 4
FUEL TANK
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
REPAIR KIT 1
CRANKSHAFT & PISTON
REPAIR KIT 2
REPAIR KIT 3
INTAKE
CARBURETOR
FUEL
STARTER
GENERATOR
ELECTRICAL 1

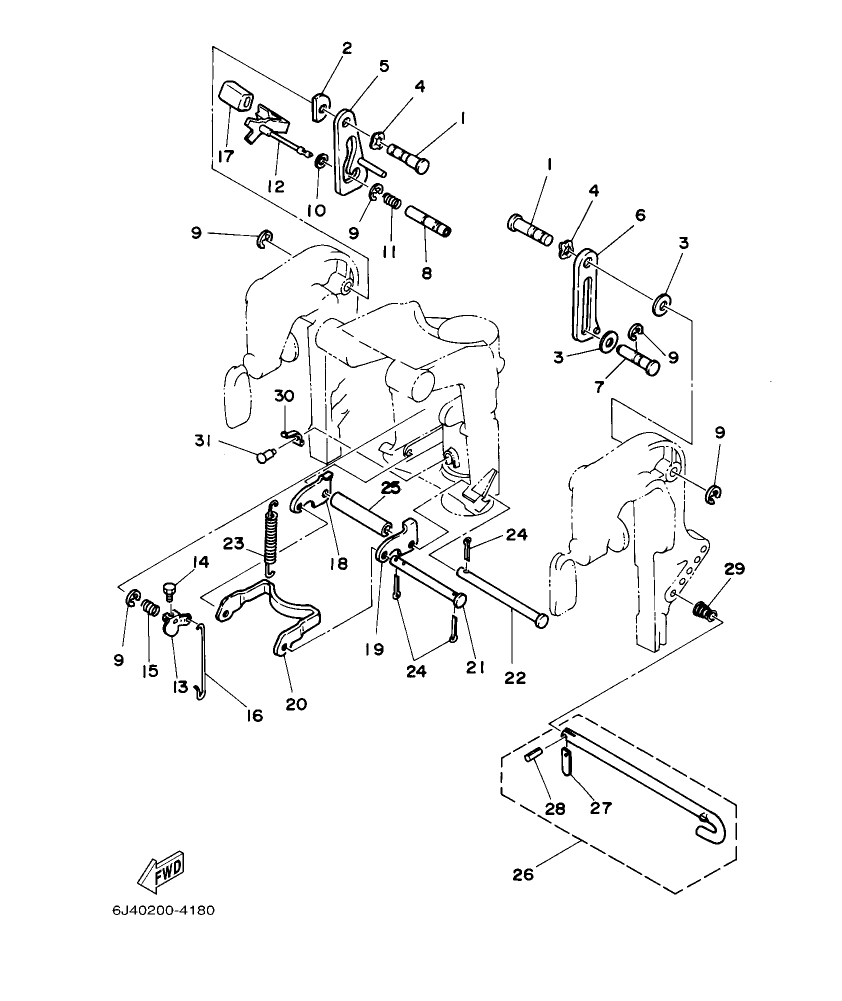

Diagram for section 18: BRACKET 2.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
90249–12M27
|
2 | Ask on WhatsApp |
| 1 |
90249–12M27
|
2 | Ask on WhatsApp |
| 2 |
676–43132–00
|
1 | Ask on WhatsApp |
| 2 |
676–43132–00
|
1 | Ask on WhatsApp |
| 3 |
90202–12M01
|
2 | Ask on WhatsApp |
| 3 |
90202–12M01
|
2 | Ask on WhatsApp |
| 4 |
90206–12M00
|
2 | Ask on WhatsApp |
| 4 |
90206–12M00
|
2 | Ask on WhatsApp |
| 5 |
6F5–43627–80
|
1 | Ask on WhatsApp |
| 5 |
6F5–43627–80
|
1 | Ask on WhatsApp |
| 6 |
6F5–43628–80
|
1 | Ask on WhatsApp |
| 6 |
6F5–43628–80
|
1 | Ask on WhatsApp |
| 7 |
90249–12M13
|
1 | Ask on WhatsApp |
| 7 |
90249–12M13
|
1 | Ask on WhatsApp |
| 8 |
676–43191–00
|
1 | Ask on WhatsApp |
| 8 |
676–43191–00
|
1 | Ask on WhatsApp |
| 9 |
93430–10M00
|
5 | Ask on WhatsApp |
| 9 |
93430–10M00
|
5 | Ask on WhatsApp |
| 10 |
90202–06M00
|
1 | Ask on WhatsApp |
| 10 |
90202–06M00
|
1 | Ask on WhatsApp |
| 11 |
90501–14M05
|
1 | Ask on WhatsApp |
| 11 |
90501–14M05
|
1 | Ask on WhatsApp |
| 12 |
6F5–43630–80
|
1 | Ask on WhatsApp |
| 12 |
6F5–43630–80
|
1 | Ask on WhatsApp |
| 13 |
676–43631–00
|
1 | Ask on WhatsApp |
| 13 |
676–43631–00
|
1 | Ask on WhatsApp |
| 14 |
97095–05010
|
1 | Ask on WhatsApp |
| 14 |
97095–05010
|
1 | Ask on WhatsApp |
| 15 |
90508–14M00
|
1 | Ask on WhatsApp |
| 15 |
90508–14M00
|
1 | Ask on WhatsApp |
| 16 |
676–43616–00
|
1 | Ask on WhatsApp |
| 16 |
676–43616–00
|
1 | Ask on WhatsApp |
| 17 |
663–43318–00
|
1 | Ask on WhatsApp |
| 17 |
663–43318–00
|
1 | Ask on WhatsApp |
| 18 |
676–43614–00
|
1 | Ask on WhatsApp |
| 18 |
676–43614–00
|
1 | Ask on WhatsApp |
| 19 |
676–43615–00
|
1 | Ask on WhatsApp |
| 19 |
676–43615–00
|
1 | Ask on WhatsApp |
| 20 |
676–43613–00
|
1 | Ask on WhatsApp |
| 20 |
676–43613–00
|
1 | Ask on WhatsApp |
| 21 |
90249–07M01
|
1 | Ask on WhatsApp |
| 21 |
90249–07M01
|
1 | Ask on WhatsApp |
| 22 |
90249–07M02
|
1 | Ask on WhatsApp |
| 22 |
90249–07M02
|
1 | Ask on WhatsApp |
| 23 |
90506–30M00
|
2 | Ask on WhatsApp |
| 23 |
90506–30M00
|
2 | Ask on WhatsApp |
| 24 |
91490–20012
|
4 | Ask on WhatsApp |
| 24 |
91490–20012
|
4 | Ask on WhatsApp |
| 25 |
90387–07M04
|
1 | Ask on WhatsApp |
| 25 |
90387–07M04
|
1 | Ask on WhatsApp |
| 26 |
676–43160–02
|
1 | Ask on WhatsApp |
| 26 |
676–43160–02
|
1 | Ask on WhatsApp |
| 27 |
676–43165–00
|
1 | Ask on WhatsApp |
| 27 |
676–43165–00
|
1 | Ask on WhatsApp |
| 28 |
91690–30010
.PIN, SPRING
|
1 | Ask on WhatsApp |
| 28 |
91690–30010
.PIN, SPRING
|
1 | Ask on WhatsApp |
| 28 |
91690–30010
.PIN, SPRING
|
1 | Ask on WhatsApp |
| 29 |
90502–10M04
SPRING, CONICAL
|
1 | Ask on WhatsApp |
| 29 |
90502–10M04
SPRING, CONICAL
|
1 | Ask on WhatsApp |
| 29 |
90502–10M04
SPRING, CONICAL
|
1 | Ask on WhatsApp |
| 30 |
676–43643–00
SPRING
|
1 | Ask on WhatsApp |
| 30 |
676–43643–00
SPRING
|
1 | Ask on WhatsApp |
| 30 |
676–43643–00
SPRING
|
1 | Ask on WhatsApp |
| 31 |
90269–04M00
RIVET
|
1 | Ask on WhatsApp |
| 31 |
90269–04M00
RIVET
|
1 | Ask on WhatsApp |
| 31 |
90269–04M00
RIVET
|
1 | Ask on WhatsApp |
