E40G’04
Section 31: REPAIR KIT 3 (v2)
Engine sections in this catalog
TOP COWLING
ELECTRICAL 2
ELECTRICAL 3
STARTING MOTOR
BOTTOM COWLING
STEERING
CONTROL 1
CONTROL 2
BRACKET 1
BRACKET 2
UPPER CASING 1
CYLINDER & CRANKCASE
UPPER CASING 2
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
LOWER CASING & DRIVE 3
LOWER CASING & DRIVE 4
FUEL TANK
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
REPAIR KIT 1
CRANKSHAFT & PISTON
REPAIR KIT 2
REPAIR KIT 3
INTAKE
CARBURETOR
FUEL
STARTER
GENERATOR
ELECTRICAL 1

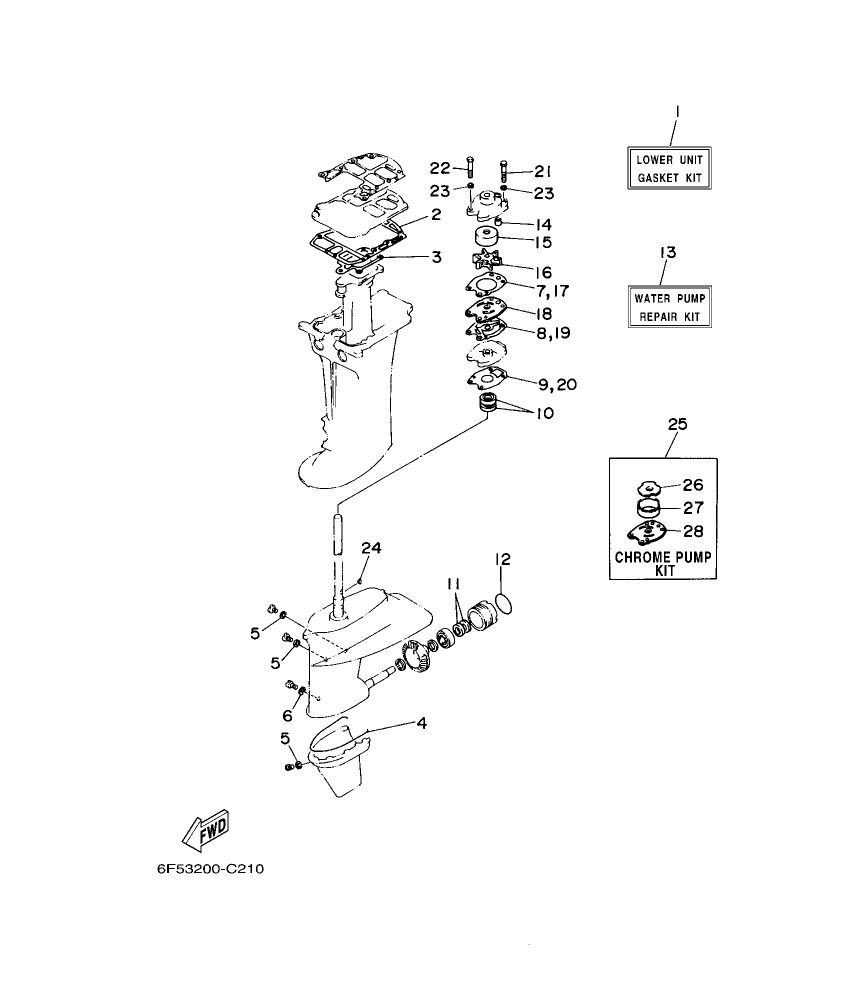

Diagram for section 31: REPAIR KIT 3.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6F5–W0001–C0
LOWER UNIT GASKET KIT
|
1 | Ask on WhatsApp |
| 1 |
6F5–W0001–C0
LOWER UNIT GASKET KIT
|
1 | Ask on WhatsApp |
| 2 |
676–45114–A1
.GASKET, UPPER CASING
|
1 | Ask on WhatsApp |
| 2 |
676–45114–A1
.GASKET, UPPER CASING
|
1 | Ask on WhatsApp |
| 3 |
676–41133–A1
.GASKET, EXHAUST MANIFOLD 1
|
1 | Ask on WhatsApp |
| 3 |
676–41133–A1
.GASKET, EXHAUST MANIFOLD 1
|
1 | Ask on WhatsApp |
| 4 |
676–45314–00
.SEAL, LOWER CASING
|
1 | Ask on WhatsApp |
| 4 |
676–45314–00
.SEAL, LOWER CASING
|
1 | Ask on WhatsApp |
| 5 |
90430–08020
.GASKET
|
3 | Ask on WhatsApp |
| 5 |
90430–08020
.GASKET
|
3 | Ask on WhatsApp |
| 6 |
90430–06M03
.GASKET
|
1 | Ask on WhatsApp |
| 6 |
90430–06M03
.GASKET
|
1 | Ask on WhatsApp |
| 7 |
676–44315–A1
.GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 7 |
676–44315–A1
.GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 8 |
676–44324–A1
.GASKET, CARTRIDGE
|
1 | Ask on WhatsApp |
| 8 |
676–44324–A1
.GASKET, CARTRIDGE
|
1 | Ask on WhatsApp |
| 9 |
676–44316–A1
.GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 9 |
676–44316–A1
.GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 10 |
93101–22M00
.OIL SEAL
|
2 | Ask on WhatsApp |
| 10 |
93101–22M00
.OIL SEAL
|
2 | Ask on WhatsApp |
| 11 |
93101–20048
.OIL SEAL
|
2 | Ask on WhatsApp |
| 11 |
93101–20048
.OIL SEAL
|
2 | Ask on WhatsApp |
| 12 |
93210–57M00
.O-RING
|
1 | Ask on WhatsApp |
| 12 |
93210–57M00
.O-RING
|
1 | Ask on WhatsApp |
| 13 |
6F5–W0078–A0
WATER PUMP REPAIR KIT
|
1 | Ask on WhatsApp |
| 13 |
6F5–W0078–A0
WATER PUMP REPAIR KIT
|
1 | Ask on WhatsApp |
| 14 |
663–44366–00
.DAMPER, WATER SEAL
|
1 | Ask on WhatsApp |
| 14 |
663–44366–00
.DAMPER, WATER SEAL
|
1 | Ask on WhatsApp |
| 15 |
676–44322–00
.INSERT, CARTRIDGE
|
1 | Ask on WhatsApp |
| 15 |
676–44322–00
.INSERT, CARTRIDGE
|
1 | Ask on WhatsApp |
| 16 |
6F5–44352–00
.IMPELLER
|
1 | Ask on WhatsApp |
| 16 |
6F5–44352–00
.IMPELLER
|
1 | Ask on WhatsApp |
| 17 |
676–44315–A1
.GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 17 |
676–44315–A1
.GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 18 |
676–44323–00
.OUTER PLATE, CARTRIDGE
|
1 | Ask on WhatsApp |
| 18 |
676–44323–00
.OUTER PLATE, CARTRIDGE
|
1 | Ask on WhatsApp |
| 19 |
676–44324–A1
.GASKET, CARTRIDGE
|
1 | Ask on WhatsApp |
| 19 |
676–44324–A1
.GASKET, CARTRIDGE
|
1 | Ask on WhatsApp |
| 20 |
679–44316–A1
.GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 20 |
679–44316–A1
.GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 21 |
97095–08055
.BOLT
|
2 | Ask on WhatsApp |
| 21 |
97095–08055
.BOLT
|
2 | Ask on WhatsApp |
| 22 |
97095–08045
.BOLT
|
2 | Ask on WhatsApp |
| 22 |
97095–08045
.BOLT
|
2 | Ask on WhatsApp |
| 23 |
92995–08600
.WASHER
|
4 | Ask on WhatsApp |
| 23 |
92995–08600
.WASHER
|
4 | Ask on WhatsApp |
| 24 |
90280–04M00
.KEY, WOODRUFF
|
1 | Ask on WhatsApp |
| 24 |
90280–04M00
.KEY, WOODRUFF
|
1 | Ask on WhatsApp |
| 25 |
676–W0078–0A
CHROME PUMP KIT
|
1 | Ask on WhatsApp |
| 25 |
676–W0078–0A
CHROME PUMP KIT
|
1 | Ask on WhatsApp |
| 26 |
676–44321–40
.INNER PLATE, CARTRIDGE
|
1 | Ask on WhatsApp |
| 26 |
676–44321–40
.INNER PLATE, CARTRIDGE
|
1 | Ask on WhatsApp |
| 27 |
676–44322–40
.INSERT, CARTRIDGE
|
1 | Ask on WhatsApp |
| 27 |
676–44322–40
.INSERT, CARTRIDGE
|
1 | Ask on WhatsApp |
| 28 |
676–44323–40
.OUTER PLATE, CARTRIDGE
|
1 | Ask on WhatsApp |
| 28 |
676–44323–40
.OUTER PLATE, CARTRIDGE
|
1 | Ask on WhatsApp |
