E40G’04
Section 8: GENERATOR (v2)
Engine sections in this catalog
TOP COWLING
ELECTRICAL 2
ELECTRICAL 3
STARTING MOTOR
BOTTOM COWLING
STEERING
CONTROL 1
CONTROL 2
BRACKET 1
BRACKET 2
UPPER CASING 1
CYLINDER & CRANKCASE
UPPER CASING 2
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
LOWER CASING & DRIVE 3
LOWER CASING & DRIVE 4
FUEL TANK
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
REPAIR KIT 1
CRANKSHAFT & PISTON
REPAIR KIT 2
REPAIR KIT 3
INTAKE
CARBURETOR
FUEL
STARTER
GENERATOR
ELECTRICAL 1

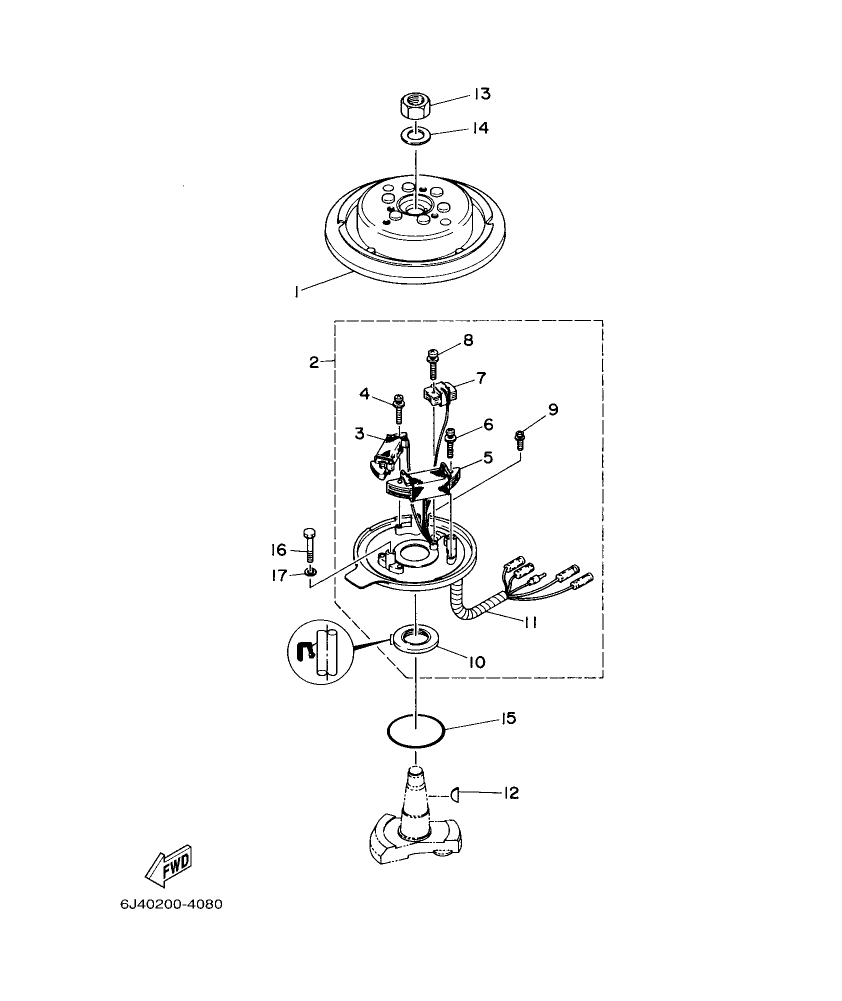

Diagram for section 8: GENERATOR.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6F5–85550–A2
ROTOR ASSY
|
1 | Ask on WhatsApp |
| 1 |
6F5–85550–F2
ROTOR ASSY
|
1 | Ask on WhatsApp |
| 1 |
6F5–85550–F2
ROTOR ASSY
|
1 | Ask on WhatsApp |
| 2 |
6F6–85560–A1
BASE ASSY
|
1 | Ask on WhatsApp |
| 2 |
6F6–85560–A1
BASE ASSY
|
1 | Ask on WhatsApp |
| 2 |
6F6–85560–A1
BASE ASSY
|
1 | Ask on WhatsApp |
| 3 |
6F5–85520–00
.COIL, CHARGE
|
1 | Ask on WhatsApp |
| 3 |
6F5–85520–00
.COIL, CHARGE
|
1 | Ask on WhatsApp |
| 3 |
6F5–85520–00
.COIL, CHARGE
|
1 | Ask on WhatsApp |
| 4 |
90159–05040
.SCREW, WITH WASHER
|
2 | Ask on WhatsApp |
| 4 |
90159–05040
.SCREW, WITH WASHER
|
2 | Ask on WhatsApp |
| 4 |
90159–05040
.SCREW, WITH WASHER
|
2 | Ask on WhatsApp |
| 5 |
6F5–85533–00
.COIL, LIGHTING
|
1 | Ask on WhatsApp |
| 5 |
6F5–85533–00
.COIL, LIGHTING
|
1 | Ask on WhatsApp |
| 5 |
6F5–85533–00
.COIL, LIGHTING
|
1 | Ask on WhatsApp |
| 6 |
90159–05040
.SCREW, WITH WASHER
|
2 | Ask on WhatsApp |
| 6 |
90159–05040
.SCREW, WITH WASHER
|
2 | Ask on WhatsApp |
| 6 |
90159–05040
.SCREW, WITH WASHER
|
2 | Ask on WhatsApp |
| 7 |
6F5–85580–00
.COIL, PULSER
|
1 | Ask on WhatsApp |
| 7 |
6F5–85580–00
.COIL, PULSER
|
1 | Ask on WhatsApp |
| 7 |
6F5–85580–00
.COIL, PULSER
|
1 | Ask on WhatsApp |
| 8 |
90159–04063
.SCREW, WITH WASHER
|
2 | Ask on WhatsApp |
| 8 |
90159–04063
.SCREW, WITH WASHER
|
2 | Ask on WhatsApp |
| 8 |
90159–04063
.SCREW, WITH WASHER
|
2 | Ask on WhatsApp |
| 9 |
90159–04035
.SCREW, WITH WASHER
|
1 | Ask on WhatsApp |
| 9 |
90159–04035
.SCREW, WITH WASHER
|
1 | Ask on WhatsApp |
| 9 |
90159–04035
.SCREW, WITH WASHER
|
1 | Ask on WhatsApp |
| 10 |
93102–35M18
.OIL SEAL
|
1 | Ask on WhatsApp |
| 10 |
93102–35M18
.OIL SEAL
|
1 | Ask on WhatsApp |
| 10 |
93102–35M18
.OIL SEAL
|
1 | Ask on WhatsApp |
| 11 |
6F5–85515–00
.LEAD WIRE ASSY
|
1 | Ask on WhatsApp |
| 11 |
6F5–85515–00
.LEAD WIRE ASSY
|
1 | Ask on WhatsApp |
| 11 |
6F5–85515–00
.LEAD WIRE ASSY
|
1 | Ask on WhatsApp |
| 12 |
90280–05015
KEY, WOODRUFF
|
1 | Ask on WhatsApp |
| 12 |
90280–05015
KEY, WOODRUFF
|
1 | Ask on WhatsApp |
| 12 |
90280–05015
KEY, WOODRUFF
|
1 | Ask on WhatsApp |
| 13 |
90170–20137
NUT
|
1 | Ask on WhatsApp |
| 13 |
90170–20137
NUT
|
1 | Ask on WhatsApp |
| 13 |
90170–20137
NUT
|
1 | Ask on WhatsApp |
| 14 |
90201–21M18
WASHER, PLATE
|
1 | Ask on WhatsApp |
| 14 |
90201–21M18
WASHER, PLATE
|
1 | Ask on WhatsApp |
| 14 |
90201–21M18
WASHER, PLATE
|
1 | Ask on WhatsApp |
| 15 |
93210–75M51
O-RING
|
1 | Ask on WhatsApp |
| 15 |
93210–75M51
O-RING
|
1 | Ask on WhatsApp |
| 15 |
93210–75M51
O-RING
|
1 | Ask on WhatsApp |
| 16 |
97095–06040
BOLT
|
3 | Ask on WhatsApp |
| 16 |
97095–06040
BOLT
|
3 | Ask on WhatsApp |
| 16 |
97095–06040
BOLT
|
3 | Ask on WhatsApp |
| 17 |
92995–06600
WASHER
|
3 | Ask on WhatsApp |
| 17 |
92995–06600
WASHER
|
3 | Ask on WhatsApp |
| 17 |
92995–06600
WASHER
|
3 | Ask on WhatsApp |
