E40G’04
Section 7: STARTER (v2)
Engine sections in this catalog
TOP COWLING
ELECTRICAL 2
ELECTRICAL 3
STARTING MOTOR
BOTTOM COWLING
STEERING
CONTROL 1
CONTROL 2
BRACKET 1
BRACKET 2
UPPER CASING 1
CYLINDER & CRANKCASE
UPPER CASING 2
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
LOWER CASING & DRIVE 3
LOWER CASING & DRIVE 4
FUEL TANK
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
REPAIR KIT 1
CRANKSHAFT & PISTON
REPAIR KIT 2
REPAIR KIT 3
INTAKE
CARBURETOR
FUEL
STARTER
GENERATOR
ELECTRICAL 1

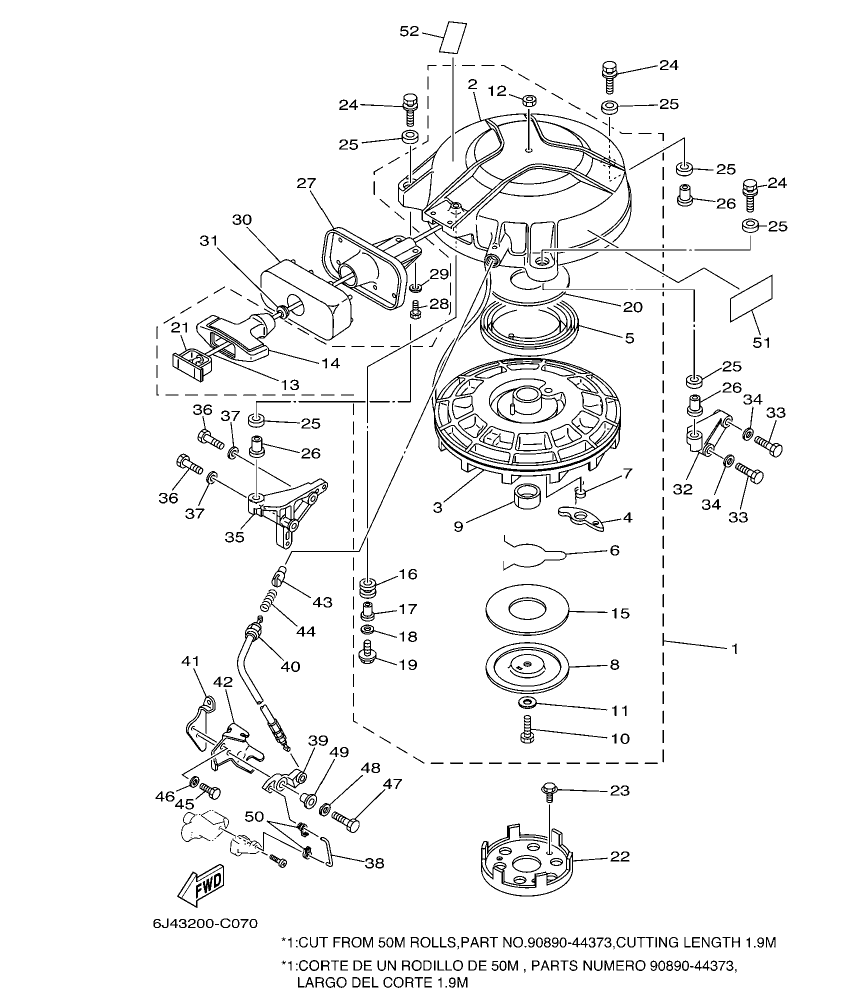

Diagram for section 7: STARTER.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6F5–W1571–02
STARTER ASSY
|
1 | Ask on WhatsApp |
| 1 |
6F5–W1571–02
STARTER ASSY
|
1 | Ask on WhatsApp |
| 1 |
6F5–W1571–02
STARTER ASSY
|
1 | Ask on WhatsApp |
| 2 |
6F5–15711–01
.CASE, STARTER
|
1 | Ask on WhatsApp |
| 2 |
6F5–15711–01
.CASE, STARTER
|
1 | Ask on WhatsApp |
| 2 |
6F5–15711–01
.CASE, STARTER
|
1 | Ask on WhatsApp |
| 3 |
6F5–15714–03
.DRUM, SHEAVE
|
1 | Ask on WhatsApp |
| 3 |
6F5–15714–03
.DRUM, SHEAVE
|
1 | Ask on WhatsApp |
| 3 |
6F5–15714–03
.DRUM, SHEAVE
|
1 | Ask on WhatsApp |
| 4 |
6F5–15741–01
.PAWL, DRIVE
|
1 | Ask on WhatsApp |
| 4 |
6F5–15741–01
.PAWL, DRIVE
|
1 | Ask on WhatsApp |
| 4 |
6F5–15741–01
.PAWL, DRIVE
|
1 | Ask on WhatsApp |
| 5 |
6F5–15713–00
.SPRING, STARTER
|
1 | Ask on WhatsApp |
| 5 |
6F5–15713–00
.SPRING, STARTER
|
1 | Ask on WhatsApp |
| 5 |
6F5–15713–00
.SPRING, STARTER
|
1 | Ask on WhatsApp |
| 6 |
6F5–15715–00
.SPRING, FRICTION
|
1 | Ask on WhatsApp |
| 6 |
6F5–15715–00
.SPRING, FRICTION
|
1 | Ask on WhatsApp |
| 6 |
6F5–15715–00
.SPRING, FRICTION
|
1 | Ask on WhatsApp |
| 7 |
6F5–15734–01
.SPRING, RETURN
|
1 | Ask on WhatsApp |
| 7 |
6F5–15734–01
.SPRING, RETURN
|
1 | Ask on WhatsApp |
| 7 |
6F5–15734–01
.SPRING, RETURN
|
1 | Ask on WhatsApp |
| 8 |
6F5–15716–01
.PLATE, DRIVE
|
1 | Ask on WhatsApp |
| 8 |
6F5–15716–01
.PLATE, DRIVE
|
1 | Ask on WhatsApp |
| 8 |
6F5–15716–01
.PLATE, DRIVE
|
1 | Ask on WhatsApp |
| 9 |
6F5–15754–00
.BUSH 2
|
1 | Ask on WhatsApp |
| 9 |
6F5–15754–00
.BUSH 2
|
1 | Ask on WhatsApp |
| 9 |
6F5–15754–00
.BUSH 2
|
1 | Ask on WhatsApp |
| 10 |
97013–08030
.BOLT
|
1 | Ask on WhatsApp |
| 10 |
97013–08030
.BOLT
|
1 | Ask on WhatsApp |
| 10 |
97013–08030
.BOLT
|
1 | Ask on WhatsApp |
| 11 |
6F5–15726–01
.WASHER, FLAT
|
1 | Ask on WhatsApp |
| 11 |
6F5–15726–01
.WASHER, FLAT
|
1 | Ask on WhatsApp |
| 11 |
6F5–15726–01
.WASHER, FLAT
|
1 | Ask on WhatsApp |
| 12 |
95303–08700
.NUT
|
1 | Ask on WhatsApp |
| 12 |
95303–08700
.NUT
|
1 | Ask on WhatsApp |
| 12 |
95303–08700
.NUT
|
1 | Ask on WhatsApp |
| 14 |
689–15755–01
.HANDLE, STARTER
|
1 | Ask on WhatsApp |
| 14 |
689–15755–01
.HANDLE, STARTER
|
1 | Ask on WhatsApp |
| 14 |
689–15755–01
.HANDLE, STARTER
|
1 | Ask on WhatsApp |
| 15 |
6F5–15764–00
.COLLAR 1
|
1 | Ask on WhatsApp |
| 15 |
6F5–15764–00
.COLLAR 1
|
1 | Ask on WhatsApp |
| 15 |
6F5–15764–00
.COLLAR 1
|
1 | Ask on WhatsApp |
| 16 |
6F5–15752–00
.ROLLER, WIRE
|
1 | Ask on WhatsApp |
| 16 |
6F5–15752–00
.ROLLER, WIRE
|
1 | Ask on WhatsApp |
| 16 |
6F5–15752–00
.ROLLER, WIRE
|
1 | Ask on WhatsApp |
| 17 |
6F5–15753–00
.BUSH
|
1 | Ask on WhatsApp |
| 17 |
6F5–15753–00
.BUSH
|
1 | Ask on WhatsApp |
| 17 |
6F5–15753–00
.BUSH
|
1 | Ask on WhatsApp |
| 18 |
6F5–15791–00
.WASHER, LOCK
|
1 | Ask on WhatsApp |
| 18 |
6F5–15791–00
.WASHER, LOCK
|
1 | Ask on WhatsApp |
| 18 |
6F5–15791–00
.WASHER, LOCK
|
1 | Ask on WhatsApp |
| 19 |
6F5–15768–00
.BOLT
|
1 | Ask on WhatsApp |
| 19 |
6F5–15768–00
.BOLT
|
1 | Ask on WhatsApp |
| 19 |
6F5–15768–00
.BOLT
|
1 | Ask on WhatsApp |
| 20 |
6F5–15739–00
.WASHER, THRUST
|
1 | Ask on WhatsApp |
| 20 |
6F5–15739–00
.WASHER, THRUST
|
1 | Ask on WhatsApp |
| 20 |
6F5–15739–00
.WASHER, THRUST
|
1 | Ask on WhatsApp |
| 21 |
6F5–15779–02
.COVER
|
1 | Ask on WhatsApp |
| 21 |
6F5–15779–02
.COVER
|
1 | Ask on WhatsApp |
| 21 |
6F5–15779–02
.COVER
|
1 | Ask on WhatsApp |
| 22 |
6F5–15723–01
PULLEY, STARTER
|
1 | Ask on WhatsApp |
| 22 |
6F5–15723–01
PULLEY, STARTER
|
1 | Ask on WhatsApp |
| 22 |
6F5–15723–01
PULLEY, STARTER
|
1 | Ask on WhatsApp |
| 23 |
90105–08M10
BOLT, FLANGE
|
3 | Ask on WhatsApp |
| 23 |
90105–08M10
BOLT, FLANGE
|
3 | Ask on WhatsApp |
| 23 |
90105–08M10
BOLT, FLANGE
|
3 | Ask on WhatsApp |
| 24 |
90119–08M10
BOLT, WITH WASHER
|
3 | Ask on WhatsApp |
| 24 |
90119–08M10
BOLT, WITH WASHER
|
3 | Ask on WhatsApp |
| 24 |
90119–08M10
BOLT, WITH WASHER
|
3 | Ask on WhatsApp |
| 25 |
90385–12M04
BUSH
|
6 | Ask on WhatsApp |
| 25 |
90385–12M04
BUSH
|
6 | Ask on WhatsApp |
| 25 |
90385–12M04
BUSH
|
6 | Ask on WhatsApp |
| 26 |
90387–08M05
COLLAR
|
3 | Ask on WhatsApp |
| 26 |
90387–08M05
COLLAR
|
3 | Ask on WhatsApp |
| 26 |
90387–08M05
COLLAR
|
3 | Ask on WhatsApp |
| 27 |
6A0–15758–01–94
GUIDE, ROPE
|
1 | Ask on WhatsApp |
| 27 |
6A0–15758–01–94
GUIDE, ROPE
|
1 | Ask on WhatsApp |
| 27 |
6A0–15758–01–94
GUIDE, ROPE
|
1 | Ask on WhatsApp |
| 28 |
97095–06016
|
2 | Ask on WhatsApp |
| 28 |
97095–06016
|
2 | Ask on WhatsApp |
| 29 |
92995–06600
|
2 | Ask on WhatsApp |
| 29 |
92995–06600
|
2 | Ask on WhatsApp |
| 30 |
6A0–15762–00
|
1 | Ask on WhatsApp |
| 30 |
6A0–15762–00
|
1 | Ask on WhatsApp |
| 31 |
6A0–15789–00
|
1 | Ask on WhatsApp |
| 31 |
6A0–15789–00
|
1 | Ask on WhatsApp |
| 32 |
6F5–15771–00–94
|
1 | Ask on WhatsApp |
| 32 |
6F5–15771–00–94
|
1 | Ask on WhatsApp |
| 33 |
97013–08035
|
2 | Ask on WhatsApp |
| 33 |
97013–08035
|
2 | Ask on WhatsApp |
| 34 |
92903–08600
|
2 | Ask on WhatsApp |
| 34 |
92903–08600
|
2 | Ask on WhatsApp |
| 35 |
6F5–15772–00–94
|
1 | Ask on WhatsApp |
| 35 |
6F5–15772–00–94
|
1 | Ask on WhatsApp |
| 36 |
97013–08035
|
2 | Ask on WhatsApp |
| 36 |
97013–08035
|
2 | Ask on WhatsApp |
| 37 |
92903–08600
|
2 | Ask on WhatsApp |
| 37 |
92903–08600
|
2 | Ask on WhatsApp |
| 38 |
6F5–15747–00
|
1 | Ask on WhatsApp |
| 38 |
6F5–15747–00
|
1 | Ask on WhatsApp |
| 39 |
6F5–15746–00
|
1 | Ask on WhatsApp |
| 39 |
6F5–15746–00
|
1 | Ask on WhatsApp |
| 40 |
6F5–15770–00
|
1 | Ask on WhatsApp |
| 40 |
6F5–15770–00
|
1 | Ask on WhatsApp |
| 41 |
6F5–15773–00
|
1 | Ask on WhatsApp |
| 41 |
6F5–15773–00
|
1 | Ask on WhatsApp |
| 42 |
6F5–15774–00
|
1 | Ask on WhatsApp |
| 42 |
6F5–15774–00
|
1 | Ask on WhatsApp |
| 43 |
656–15748–00
|
1 | Ask on WhatsApp |
| 43 |
656–15748–00
|
1 | Ask on WhatsApp |
| 44 |
90501–10227
|
1 | Ask on WhatsApp |
| 44 |
90501–10227
|
1 | Ask on WhatsApp |
| 45 |
97095–06016
|
1 | Ask on WhatsApp |
| 45 |
97095–06016
|
1 | Ask on WhatsApp |
| 46 |
92995–06600
|
1 | Ask on WhatsApp |
| 46 |
92995–06600
|
1 | Ask on WhatsApp |
| 47 |
97095–06030
|
1 | Ask on WhatsApp |
| 47 |
97095–06030
|
1 | Ask on WhatsApp |
| 48 |
92995–06600
|
1 | Ask on WhatsApp |
| 48 |
92995–06600
|
1 | Ask on WhatsApp |
| 49 |
90387–06M29
|
1 | Ask on WhatsApp |
| 49 |
90387–06M29
|
1 | Ask on WhatsApp |
| 50 |
661–41262–02
|
2 | Ask on WhatsApp |
| 50 |
661–41262–02
|
2 | Ask on WhatsApp |
| 51 |
6F6–14488–00
|
1 | Ask on WhatsApp |
| 51 |
6F6–14488–00
|
1 | Ask on WhatsApp |
| 52 |
6A1–83625–41
|
1 | Ask on WhatsApp |
| 52 |
6A1–83625–41
|
1 | Ask on WhatsApp |
