E40G’04
Section 21: LOWER CASING & DRIVE 1 (v2)
Engine sections in this catalog
TOP COWLING
ELECTRICAL 2
ELECTRICAL 3
STARTING MOTOR
BOTTOM COWLING
STEERING
CONTROL 1
CONTROL 2
BRACKET 1
BRACKET 2
UPPER CASING 1
CYLINDER & CRANKCASE
UPPER CASING 2
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
LOWER CASING & DRIVE 3
LOWER CASING & DRIVE 4
FUEL TANK
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
REPAIR KIT 1
CRANKSHAFT & PISTON
REPAIR KIT 2
REPAIR KIT 3
INTAKE
CARBURETOR
FUEL
STARTER
GENERATOR
ELECTRICAL 1

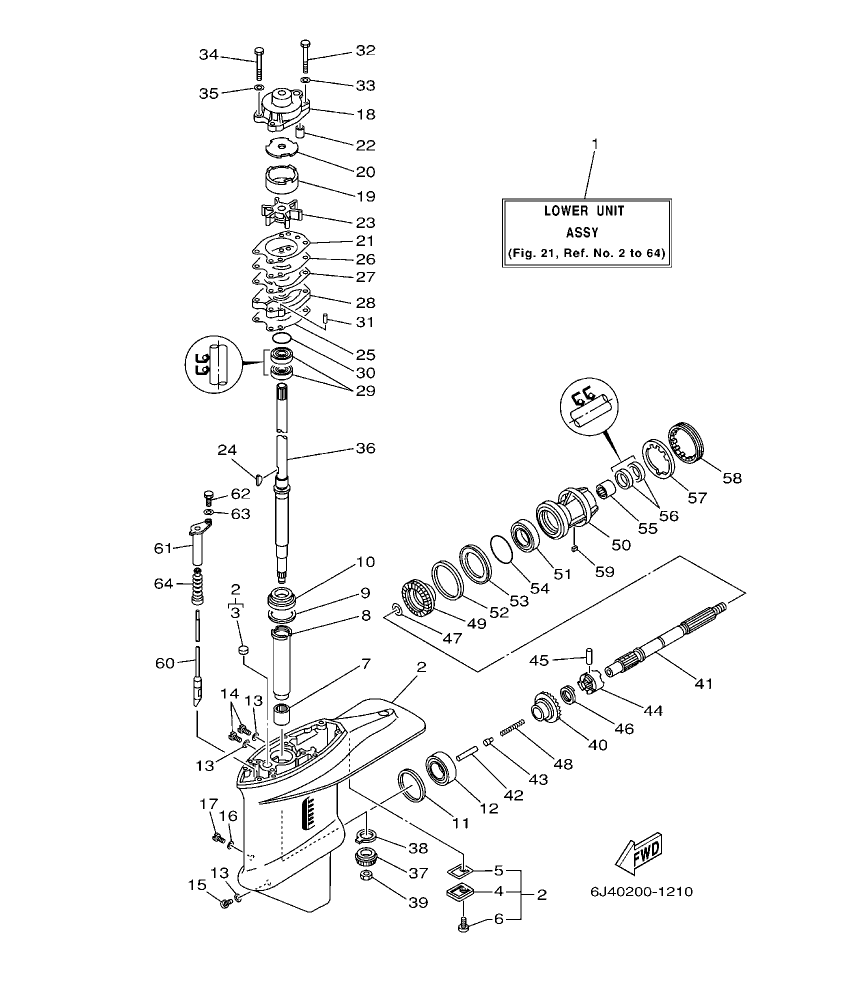

Diagram for section 21: LOWER CASING & DRIVE 1.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6J4–45300–02–4D
LOWER UNIT ASSY
|
1 | Ask on WhatsApp |
| 1 |
6J4–45300–02–4D
LOWER UNIT ASSY
|
1 | Ask on WhatsApp |
| 1 |
6J4–45300–12–4D
LOWER UNIT ASSY
|
1 | Ask on WhatsApp |
| 1 |
6J4–45300–12–4D
LOWER UNIT ASSY
|
1 | Ask on WhatsApp |
| 1 |
6J4–45300–12–4D
LOWER UNIT ASSY
|
1 | Ask on WhatsApp |
| 1 |
6J4–45300–22–4D
LOWER UNIT ASSY
|
1 | Ask on WhatsApp |
| 2 |
6J4–W4531–01–4D
CASING, LOWER
|
1 | Ask on WhatsApp |
| 2 |
6J4–W4531–01–4D
CASING, LOWER
|
1 | Ask on WhatsApp |
| 2 |
6J4–W4531–01–4D
CASING, LOWER
|
1 | Ask on WhatsApp |
| 3 |
90338–22007
.PLUG
|
1 | Ask on WhatsApp |
| 3 |
90338–22007
.PLUG
|
1 | Ask on WhatsApp |
| 3 |
90338–22007
.PLUG
|
1 | Ask on WhatsApp |
| 4 |
679–45321–02
.PLATE
|
1 | Ask on WhatsApp |
| 4 |
679–45321–02
.PLATE
|
1 | Ask on WhatsApp |
| 4 |
679–45321–02
.PLATE
|
1 | Ask on WhatsApp |
| 5 |
679–45315–A1
.PACKING, LOWER CASING
|
1 | Ask on WhatsApp |
| 5 |
679–45315–A1
.PACKING, LOWER CASING
|
1 | Ask on WhatsApp |
| 5 |
679–45315–A1
.PACKING, LOWER CASING
|
1 | Ask on WhatsApp |
| 6 |
97880–06016
.SCREW, PAN HEAD
|
1 | Ask on WhatsApp |
| 6 |
97880–06016
.SCREW, PAN HEAD
|
1 | Ask on WhatsApp |
| 6 |
97880–06016
.SCREW, PAN HEAD
|
1 | Ask on WhatsApp |
| 7 |
93315–32224
BEARING
|
1 | Ask on WhatsApp |
| 7 |
93315–32224
BEARING
|
1 | Ask on WhatsApp |
| 7 |
93315–32224
BEARING
|
1 | Ask on WhatsApp |
| 8 |
679–45536–00
SLEEVE, DRIVE SHAFT
|
1 | Ask on WhatsApp |
| 8 |
679–45536–00
SLEEVE, DRIVE SHAFT
|
1 | Ask on WhatsApp |
| 8 |
679–45536–00
SLEEVE, DRIVE SHAFT
|
1 | Ask on WhatsApp |
| 9 |
663–45587–01–10
SHIM (T:0.10MM)
|
1 | Ask on WhatsApp |
| 9 |
663–45587–01–10
SHIM (T:0.10MM)
|
1 | Ask on WhatsApp |
| 9 |
663–45587–01–10
SHIM (T:0.10MM)
|
1 | Ask on WhatsApp |
| 9 |
663–45587–01–12
SHIM (T:0.12MM)
|
1 | Ask on WhatsApp |
| 9 |
663–45587–01–12
SHIM (T:0.12MM)
|
1 | Ask on WhatsApp |
| 9 |
663–45587–01–12
SHIM (T:0.12MM)
|
1 | Ask on WhatsApp |
| 9 |
663–45587–01–15
SHIM (T:0.15MM)
|
1 | Ask on WhatsApp |
| 9 |
663–45587–01–15
SHIM (T:0.15MM)
|
1 | Ask on WhatsApp |
| 9 |
663–45587–01–15
SHIM (T:0.15MM)
|
1 | Ask on WhatsApp |
| 9 |
663–45587–01–18
SHIM (T:0.18MM)
|
1 | Ask on WhatsApp |
| 9 |
663–45587–01–18
SHIM (T:0.18MM)
|
1 | Ask on WhatsApp |
| 9 |
663–45587–01–18
SHIM (T:0.18MM)
|
1 | Ask on WhatsApp |
| 9 |
663–45587–01–30
SHIM (T:0.30MM)
|
1 | Ask on WhatsApp |
| 9 |
663–45587–01–30
SHIM (T:0.30MM)
|
1 | Ask on WhatsApp |
| 9 |
663–45587–01–30
SHIM (T:0.30MM)
|
1 | Ask on WhatsApp |
| 9 |
663–45587–01–40
SHIM (T:0.40MM)
|
1 | Ask on WhatsApp |
| 9 |
663–45587–01–40
SHIM (T:0.40MM)
|
1 | Ask on WhatsApp |
| 9 |
663–45587–01–40
SHIM (T:0.40MM)
|
1 | Ask on WhatsApp |
| 9 |
663–45587–01–50
SHIM (T:0.50MM)
|
1 | Ask on WhatsApp |
| 9 |
663–45587–01–50
SHIM (T:0.50MM)
|
1 | Ask on WhatsApp |
| 9 |
663–45587–01–50
SHIM (T:0.50MM)
|
1 | Ask on WhatsApp |
| 10 |
93332–00001
BEARING
|
1 | Ask on WhatsApp |
| 10 |
93332–00001
BEARING
|
1 | Ask on WhatsApp |
| 10 |
93332–00001
BEARING
|
1 | Ask on WhatsApp |
| 11 |
663–45567–01–10
SHIM (T:0.10MM)
|
1 | Ask on WhatsApp |
| 11 |
663–45567–01–10
SHIM (T:0.10MM)
|
1 | Ask on WhatsApp |
| 11 |
663–45567–01–10
SHIM (T:0.10MM)
|
1 | Ask on WhatsApp |
| 11 |
663–45567–01–12
SHIM (T:0.12MM)
|
1 | Ask on WhatsApp |
| 11 |
663–45567–01–12
SHIM (T:0.12MM)
|
1 | Ask on WhatsApp |
| 11 |
663–45567–01–12
SHIM (T:0.12MM)
|
1 | Ask on WhatsApp |
| 11 |
663–45567–01–15
SHIM (T:0.15MM)
|
1 | Ask on WhatsApp |
| 11 |
663–45567–01–15
SHIM (T:0.15MM)
|
1 | Ask on WhatsApp |
| 11 |
663–45567–01–15
SHIM (T:0.15MM)
|
1 | Ask on WhatsApp |
| 11 |
663–45567–01–18
SHIM (T:0.18MM)
|
1 | Ask on WhatsApp |
| 11 |
663–45567–01–18
SHIM (T:0.18MM)
|
1 | Ask on WhatsApp |
| 11 |
663–45567–01–18
SHIM (T:0.18MM)
|
1 | Ask on WhatsApp |
| 11 |
663–45567–01–30
SHIM (T:0.30MM)
|
1 | Ask on WhatsApp |
| 11 |
663–45567–01–30
SHIM (T:0.30MM)
|
1 | Ask on WhatsApp |
| 11 |
663–45567–01–30
SHIM (T:0.30MM)
|
1 | Ask on WhatsApp |
| 11 |
663–45567–01–40
SHIM (T:0.40MM)
|
1 | Ask on WhatsApp |
| 11 |
663–45567–01–40
SHIM (T:0.40MM)
|
1 | Ask on WhatsApp |
| 11 |
663–45567–01–40
SHIM (T:0.40MM)
|
1 | Ask on WhatsApp |
| 11 |
663–45567–01–50
SHIM (T:0.50MM)
|
1 | Ask on WhatsApp |
| 11 |
663–45567–01–50
SHIM (T:0.50MM)
|
1 | Ask on WhatsApp |
| 11 |
663–45567–01–50
SHIM (T:0.50MM)
|
1 | Ask on WhatsApp |
| 12 |
93332–00003
BEARING
|
1 | Ask on WhatsApp |
| 12 |
93332–00003
BEARING
|
1 | Ask on WhatsApp |
| 12 |
93332–00003
BEARING
|
1 | Ask on WhatsApp |
| 13 |
90430–08020
GASKET
|
3 | Ask on WhatsApp |
| 13 |
90430–08020
GASKET
|
3 | Ask on WhatsApp |
| 13 |
90430–08020
GASKET
|
3 | Ask on WhatsApp |
| 14 |
90340–08002
PLUG, STRAIGHT SCREW
|
2 | Ask on WhatsApp |
| 14 |
90340–08002
PLUG, STRAIGHT SCREW
|
2 | Ask on WhatsApp |
| 14 |
90340–08002
PLUG, STRAIGHT SCREW
|
2 | Ask on WhatsApp |
| 15 |
688–45341–10
PLUG, DRAIN
|
1 | Ask on WhatsApp |
| 15 |
688–45341–10
PLUG, DRAIN
|
1 | Ask on WhatsApp |
| 15 |
688–45341–10
PLUG, DRAIN
|
1 | Ask on WhatsApp |
| 16 |
90430–06M03
GASKET
|
1 | Ask on WhatsApp |
| 16 |
90430–06M03
GASKET
|
1 | Ask on WhatsApp |
| 16 |
90430–06M03
GASKET
|
1 | Ask on WhatsApp |
| 17 |
90149–06M00
SCREW
|
1 | Ask on WhatsApp |
| 17 |
90149–06M00
SCREW
|
1 | Ask on WhatsApp |
| 17 |
90149–06M00
SCREW
|
1 | Ask on WhatsApp |
| 18 |
676–44311–00
HOUSING, WATER PUMP
|
1 | Ask on WhatsApp |
| 18 |
676–44311–00
HOUSING, WATER PUMP
|
1 | Ask on WhatsApp |
| 18 |
676–44311–00
HOUSING, WATER PUMP
|
1 | Ask on WhatsApp |
| 19 |
676–44322–40
INSERT, CARTRIDGE
|
1 | Ask on WhatsApp |
| 19 |
676–44322–40
INSERT, CARTRIDGE
|
1 | Ask on WhatsApp |
| 19 |
676–44322–40
INSERT, CARTRIDGE
|
1 | Ask on WhatsApp |
| 20 |
676–44321–40
INNER PLATE, CARTRIDGE
|
1 | Ask on WhatsApp |
| 20 |
676–44321–40
INNER PLATE, CARTRIDGE
|
1 | Ask on WhatsApp |
| 20 |
676–44321–40
INNER PLATE, CARTRIDGE
|
1 | Ask on WhatsApp |
| 21 |
676–44315–A1
GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 21 |
676–44315–A1
GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 21 |
676–44315–A1
GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 22 |
663–44366–00
DAMPER, WATER SEAL
|
1 | Ask on WhatsApp |
| 22 |
663–44366–00
DAMPER, WATER SEAL
|
1 | Ask on WhatsApp |
| 22 |
663–44366–00
DAMPER, WATER SEAL
|
1 | Ask on WhatsApp |
| 23 |
6F5–44352–00
IMPELLER
|
1 | Ask on WhatsApp |
| 23 |
6F5–44352–00
IMPELLER
|
1 | Ask on WhatsApp |
| 23 |
6F5–44352–00
IMPELLER
|
1 | Ask on WhatsApp |
| 24 |
90280–04M00
KEY, WOODRUFF
|
1 | Ask on WhatsApp |
| 24 |
90280–04M00
KEY, WOODRUFF
|
1 | Ask on WhatsApp |
| 24 |
90280–04M00
KEY, WOODRUFF
|
1 | Ask on WhatsApp |
| 25 |
679–44316–A1
GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 25 |
679–44316–A1
GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 25 |
679–44316–A1
GASKET, WATER PUMP
|
1 | Ask on WhatsApp |
| 26 |
676–44323–40
OUTER PLATE, CARTRIDGE
|
1 | Ask on WhatsApp |
| 26 |
676–44323–40
OUTER PLATE, CARTRIDGE
|
1 | Ask on WhatsApp |
| 26 |
676–44323–40
OUTER PLATE, CARTRIDGE
|
1 | Ask on WhatsApp |
| 27 |
676–44324–A1
GASKET, CARTRIDGE
|
1 | Ask on WhatsApp |
| 27 |
676–44324–A1
GASKET, CARTRIDGE
|
1 | Ask on WhatsApp |
| 27 |
676–44324–A1
GASKET, CARTRIDGE
|
1 | Ask on WhatsApp |
| 28 |
679–44341–00–94
HOUSING, WATER PUMP
|
1 | Ask on WhatsApp |
| 28 |
679–44341–00–94
HOUSING, WATER PUMP
|
1 | Ask on WhatsApp |
| 28 |
679–44341–00–94
HOUSING, WATER PUMP
|
1 | Ask on WhatsApp |
| 29 |
93101–22M00
OIL SEAL
|
2 | Ask on WhatsApp |
| 29 |
93101–22M00
OIL SEAL
|
2 | Ask on WhatsApp |
| 29 |
93101–22M00
OIL SEAL
|
2 | Ask on WhatsApp |
| 30 |
93210–41042
O-RING
|
1 | Ask on WhatsApp |
| 30 |
93210–41042
O-RING
|
1 | Ask on WhatsApp |
| 30 |
93210–41042
O-RING
|
1 | Ask on WhatsApp |
| 31 |
93604–08062
PIN, DOWEL
|
2 | Ask on WhatsApp |
| 31 |
93604–08062
PIN, DOWEL
|
2 | Ask on WhatsApp |
| 31 |
93604–08062
PIN, DOWEL
|
2 | Ask on WhatsApp |
| 32 |
97095–08055
BOLT
|
2 | Ask on WhatsApp |
| 32 |
97095–08055
BOLT
|
2 | Ask on WhatsApp |
| 32 |
97095–08055
BOLT
|
2 | Ask on WhatsApp |
| 33 |
92995–08600
WASHER
|
2 | Ask on WhatsApp |
| 33 |
92995–08600
WASHER
|
2 | Ask on WhatsApp |
| 33 |
92995–08600
WASHER
|
2 | Ask on WhatsApp |
| 34 |
97095–08045
BOLT
|
2 | Ask on WhatsApp |
| 34 |
97095–08045
BOLT
|
2 | Ask on WhatsApp |
| 34 |
97095–08045
BOLT
|
2 | Ask on WhatsApp |
| 35 |
92995–08600
WASHER
|
2 | Ask on WhatsApp |
| 35 |
92995–08600
WASHER
|
2 | Ask on WhatsApp |
| 35 |
92995–08600
WASHER
|
2 | Ask on WhatsApp |
| 36 |
679–45501–00
DRIVE SHAFT COMP.
|
1 | Ask on WhatsApp |
| 36 |
679–45501–00
DRIVE SHAFT COMP.
|
1 | Ask on WhatsApp |
| 36 |
679–45501–10
DRIVE SHAFT COMP.
|
1 | Ask on WhatsApp |
| 36 |
679–45501–10
DRIVE SHAFT COMP.
|
1 | Ask on WhatsApp |
| 36 |
679–45501–10
DRIVE SHAFT COMP.
|
1 | Ask on WhatsApp |
| 36 |
6A0–45501–20
DRIVE SHAFT COMP.
|
1 | Ask on WhatsApp |
| 37 |
6H9–45551–00
PINION
|
1 | Ask on WhatsApp |
| 37 |
6H9–45551–00
PINION
|
1 | Ask on WhatsApp |
| 37 |
6H9–45551–00
PINION
|
1 | Ask on WhatsApp |
| 38 |
663–45552–00
BEARING, PLAIN
|
1 | Ask on WhatsApp |
| 38 |
663–45552–00
BEARING, PLAIN
|
1 | Ask on WhatsApp |
| 38 |
663–45552–00
BEARING, PLAIN
|
1 | Ask on WhatsApp |
| 39 |
90170–12138
|
1 | Ask on WhatsApp |
| 39 |
90170–12138
|
1 | Ask on WhatsApp |
| 40 |
679–45560–00
|
1 | Ask on WhatsApp |
| 40 |
679–45560–00
|
1 | Ask on WhatsApp |
| 41 |
679–45611–01
|
1 | Ask on WhatsApp |
| 41 |
679–45611–01
|
1 | Ask on WhatsApp |
| 42 |
676–45635–00
|
1 | Ask on WhatsApp |
| 42 |
676–45635–00
|
1 | Ask on WhatsApp |
| 43 |
663–45634–00
|
1 | Ask on WhatsApp |
| 43 |
663–45634–00
|
1 | Ask on WhatsApp |
| 44 |
663–45631–01
|
1 | Ask on WhatsApp |
| 44 |
663–45631–01
|
1 | Ask on WhatsApp |
| 45 |
90250–06023
|
1 | Ask on WhatsApp |
| 45 |
90250–06023
|
1 | Ask on WhatsApp |
| 46 |
663–45633–00
|
1 | Ask on WhatsApp |
| 46 |
663–45633–00
|
1 | Ask on WhatsApp |
| 47 |
90201–22429
|
1 | Ask on WhatsApp |
| 47 |
90201–22429
|
1 | Ask on WhatsApp |
| 48 |
90501–16M01
|
1 | Ask on WhatsApp |
| 48 |
90501–16M01
|
1 | Ask on WhatsApp |
| 49 |
679–45571–00
|
1 | Ask on WhatsApp |
| 49 |
679–45571–00
|
1 | Ask on WhatsApp |
| 50 |
679–45331–00–94
|
1 | Ask on WhatsApp |
| 50 |
679–45331–00–94
|
1 | Ask on WhatsApp |
| 51 |
93306–00702
|
1 | Ask on WhatsApp |
| 51 |
93306–00702
|
1 | Ask on WhatsApp |
| 52 |
663–45577–01–10
|
1 | Ask on WhatsApp |
| 52 |
663–45577–01–10
|
1 | Ask on WhatsApp |
| 52 |
663–45577–01–12
|
1 | Ask on WhatsApp |
| 52 |
663–45577–01–12
|
1 | Ask on WhatsApp |
| 52 |
663–45577–01–15
|
1 | Ask on WhatsApp |
| 52 |
663–45577–01–15
|
1 | Ask on WhatsApp |
| 52 |
663–45577–01–18
|
1 | Ask on WhatsApp |
| 52 |
663–45577–01–18
|
1 | Ask on WhatsApp |
| 52 |
663–45577–01–30
|
1 | Ask on WhatsApp |
| 52 |
663–45577–01–30
|
1 | Ask on WhatsApp |
| 52 |
663–45577–01–40
|
1 | Ask on WhatsApp |
| 52 |
663–45577–01–40
|
1 | Ask on WhatsApp |
| 52 |
663–45577–01–50
|
1 | Ask on WhatsApp |
| 52 |
663–45577–01–50
|
1 | Ask on WhatsApp |
| 53 |
663–45576–00
|
1 | Ask on WhatsApp |
| 53 |
663–45576–00
|
1 | Ask on WhatsApp |
| 54 |
93210–66M98
|
1 | Ask on WhatsApp |
| 54 |
93210–66M98
|
1 | Ask on WhatsApp |
| 55 |
93317–22204
|
1 | Ask on WhatsApp |
| 55 |
93317–22204
|
1 | Ask on WhatsApp |
| 56 |
93101–22M00
|
2 | Ask on WhatsApp |
| 56 |
93101–22M00
|
2 | Ask on WhatsApp |
| 57 |
90214–48M03
|
1 | Ask on WhatsApp |
| 57 |
90214–48M03
|
1 | Ask on WhatsApp |
| 58 |
697–45384–00
|
1 | Ask on WhatsApp |
| 58 |
697–45384–00
|
1 | Ask on WhatsApp |
| 59 |
90282–04010
|
1 | Ask on WhatsApp |
| 59 |
90282–04010
|
1 | Ask on WhatsApp |
| 60 |
679–44150–00
SHIFT CAM ASSY
|
1 | Ask on WhatsApp |
| 60 |
679–44150–00
SHIFT CAM ASSY
|
1 | Ask on WhatsApp |
| 60 |
679–44150–10
SHIFT CAM ASSY
|
1 | Ask on WhatsApp |
| 60 |
679–44150–10
SHIFT CAM ASSY
|
1 | Ask on WhatsApp |
| 60 |
679–44150–10
SHIFT CAM ASSY
|
1 | Ask on WhatsApp |
| 60 |
6A0–44150–20
SHIFT CAM ASSY
|
1 | Ask on WhatsApp |
| 61 |
679–44152–00
BUSHING, SHIFT CAM
|
1 | Ask on WhatsApp |
| 61 |
679–44152–00
BUSHING, SHIFT CAM
|
1 | Ask on WhatsApp |
| 61 |
679–44152–00
BUSHING, SHIFT CAM
|
1 | Ask on WhatsApp |
| 62 |
97095–06018
BOLT
|
1 | Ask on WhatsApp |
| 62 |
97095–06018
BOLT
|
1 | Ask on WhatsApp |
| 62 |
97095–06018
BOLT
|
1 | Ask on WhatsApp |
| 63 |
92995–06600
WASHER
|
1 | Ask on WhatsApp |
| 63 |
92995–06600
WASHER
|
1 | Ask on WhatsApp |
| 63 |
92995–06600
WASHER
|
1 | Ask on WhatsApp |
| 64 |
650–44147–00
BOOT, SHIFT ROD
|
1 | Ask on WhatsApp |
| 64 |
650–44147–00
BOOT, SHIFT ROD
|
1 | Ask on WhatsApp |
| 64 |
650–44147–00
BOOT, SHIFT ROD
|
1 | Ask on WhatsApp |
