Section 12: STARTING MOTOR (v2)
Engine sections in this catalog
TOP COWLING
ELECTRICAL 2
ELECTRICAL 3
STARTING MOTOR
BOTTOM COWLING
STEERING
CONTROL 1
CONTROL 2
BRACKET 1
BRACKET 2
UPPER CASING 1
CYLINDER & CRANKCASE
UPPER CASING 2
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
LOWER CASING & DRIVE 3
LOWER CASING & DRIVE 4
FUEL TANK
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
REPAIR KIT 1
CRANKSHAFT & PISTON
REPAIR KIT 2
REPAIR KIT 3
INTAKE
CARBURETOR
FUEL
STARTER
GENERATOR
ELECTRICAL 1

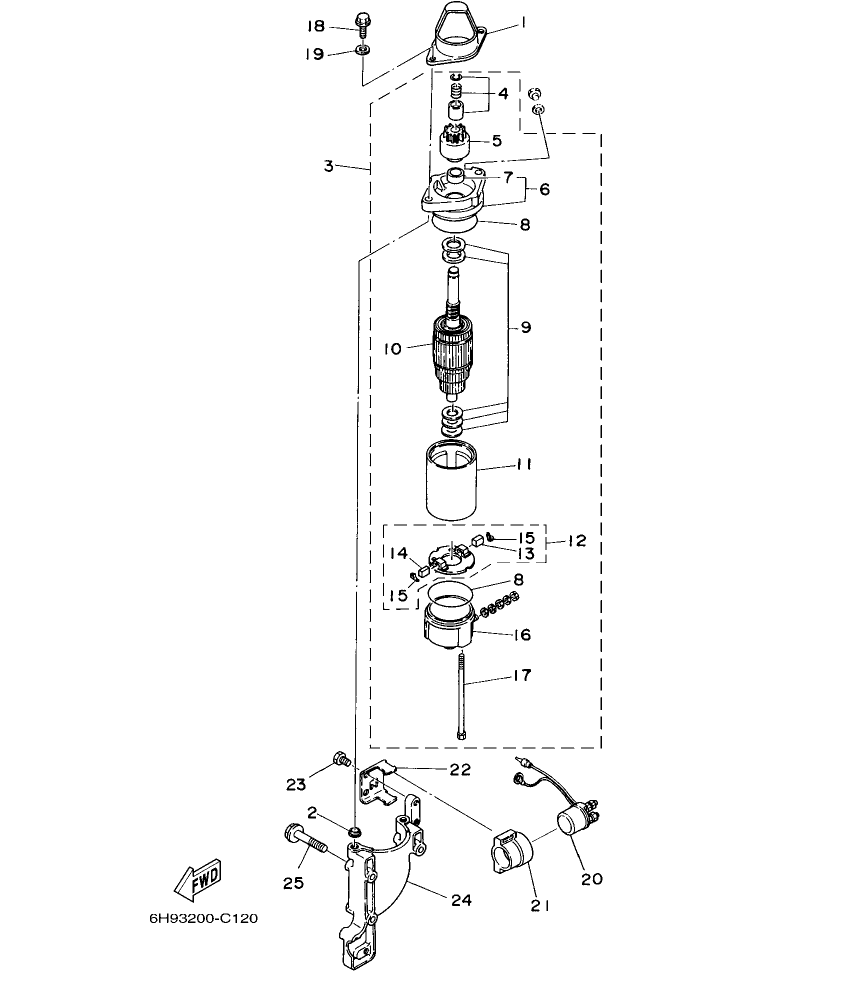

Diagram for section 12: STARTING MOTOR.
