E40G’04
Section 4: INTAKE (v2)
Engine sections in this catalog
TOP COWLING
ELECTRICAL 2
ELECTRICAL 3
STARTING MOTOR
BOTTOM COWLING
STEERING
CONTROL 1
CONTROL 2
BRACKET 1
BRACKET 2
UPPER CASING 1
CYLINDER & CRANKCASE
UPPER CASING 2
LOWER CASING & DRIVE 1
LOWER CASING & DRIVE 2
LOWER CASING & DRIVE 3
LOWER CASING & DRIVE 4
FUEL TANK
STEERING GUIDE
REMOTE CONTROL BOX
REMOTE CONTROL ASSY
REPAIR KIT 1
CRANKSHAFT & PISTON
REPAIR KIT 2
REPAIR KIT 3
INTAKE
CARBURETOR
FUEL
STARTER
GENERATOR
ELECTRICAL 1

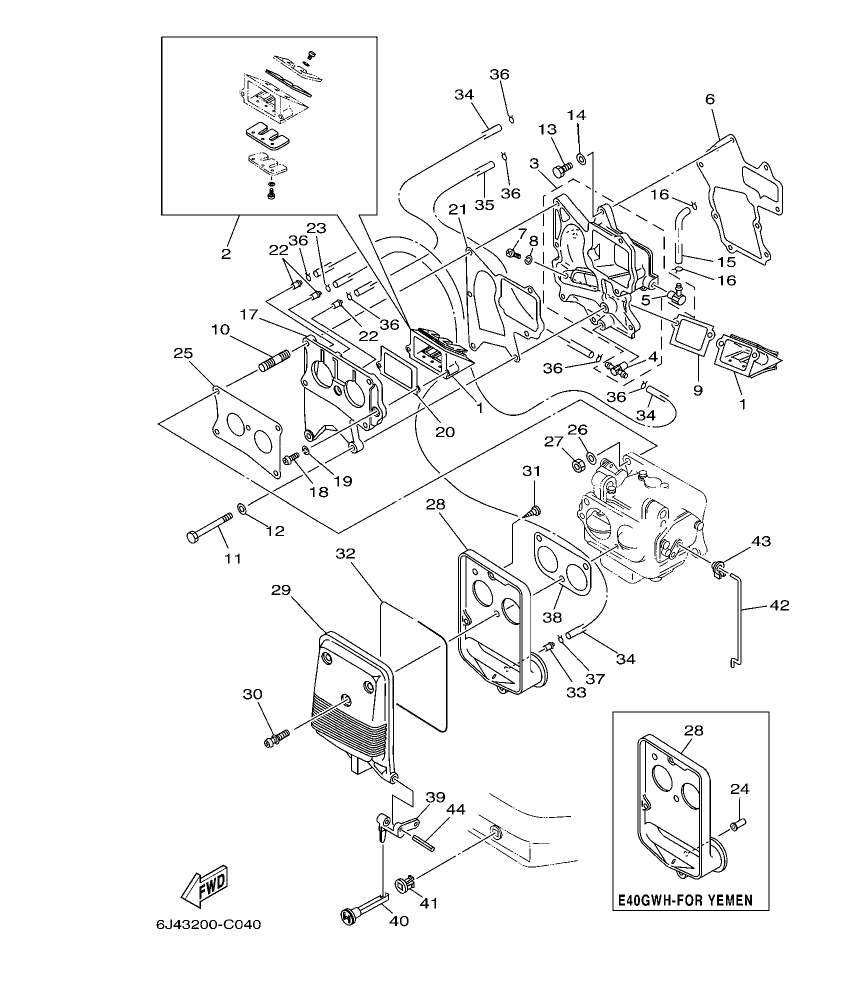

Diagram for section 4: INTAKE.
| Ref | Part No. | Qty | Buy |
|---|---|---|---|
| 1 |
6F6–13610–00
REED VALVE ASSY
|
2 | Ask on WhatsApp |
| 1 |
6F6–13610–00
REED VALVE ASSY
|
2 | Ask on WhatsApp |
| 1 |
6F6–13610–00
REED VALVE ASSY
|
2 | Ask on WhatsApp |
| 2 |
692–W0004–00
.REED SET
|
1 | Ask on WhatsApp |
| 2 |
692–W0004–00
.REED SET
|
1 | Ask on WhatsApp |
| 2 |
692–W0004–00
.REED SET
|
1 | Ask on WhatsApp |
| 3 |
6F6–13641–00–1S
MANIFOLD 1
|
1 | Ask on WhatsApp |
| 3 |
6F6–13641–00–1S
MANIFOLD 1
|
1 | Ask on WhatsApp |
| 3 |
6F6–13641–00–1S
MANIFOLD 1
|
1 | Ask on WhatsApp |
| 4 |
6F6–11370–01
.CHECK VALVE ASSY
|
1 | Ask on WhatsApp |
| 4 |
6F6–11370–01
.CHECK VALVE ASSY
|
1 | Ask on WhatsApp |
| 4 |
6F6–11370–01
.CHECK VALVE ASSY
|
1 | Ask on WhatsApp |
| 5 |
650–11370–01
.CHECK VALVE ASSY
|
1 | Ask on WhatsApp |
| 5 |
650–11370–01
.CHECK VALVE ASSY
|
1 | Ask on WhatsApp |
| 5 |
650–11370–01
.CHECK VALVE ASSY
|
1 | Ask on WhatsApp |
| 6 |
6F5–13646–A2
GASKET, MANIFOLD 2
|
1 | Ask on WhatsApp |
| 6 |
6F5–13646–A2
GASKET, MANIFOLD 2
|
1 | Ask on WhatsApp |
| 6 |
6F5–13646–A2
GASKET, MANIFOLD 2
|
1 | Ask on WhatsApp |
| 7 |
97880–05014
SCREW, PAN HEAD
|
2 | Ask on WhatsApp |
| 7 |
97880–05014
SCREW, PAN HEAD
|
2 | Ask on WhatsApp |
| 7 |
97880–05014
SCREW, PAN HEAD
|
2 | Ask on WhatsApp |
| 8 |
92990–05100
WASHER, SPRING
|
2 | Ask on WhatsApp |
| 8 |
92990–05100
WASHER, SPRING
|
2 | Ask on WhatsApp |
| 8 |
92990–05100
WASHER, SPRING
|
2 | Ask on WhatsApp |
| 9 |
6F5–13621–A1
GASKET, VALVE SEAT
|
1 | Ask on WhatsApp |
| 9 |
6F5–13621–A1
GASKET, VALVE SEAT
|
1 | Ask on WhatsApp |
| 9 |
6F5–13621–A1
GASKET, VALVE SEAT
|
1 | Ask on WhatsApp |
| 10 |
90116–06M17
BOLT, STUD
|
4 | Ask on WhatsApp |
| 10 |
90116–06M17
BOLT, STUD
|
4 | Ask on WhatsApp |
| 10 |
90116–06M17
BOLT, STUD
|
4 | Ask on WhatsApp |
| 11 |
97013–06065
BOLT
|
2 | Ask on WhatsApp |
| 11 |
97013–06065
BOLT
|
2 | Ask on WhatsApp |
| 11 |
97013–06065
BOLT
|
2 | Ask on WhatsApp |
| 12 |
92903–06600
WASHER, PLATE
|
2 | Ask on WhatsApp |
| 12 |
92903–06600
WASHER, PLATE
|
2 | Ask on WhatsApp |
| 12 |
92903–06600
WASHER, PLATE
|
2 | Ask on WhatsApp |
| 13 |
97013–06025
BOLT
|
7 | Ask on WhatsApp |
| 13 |
97013–06025
BOLT
|
7 | Ask on WhatsApp |
| 13 |
97013–06025
BOLT
|
7 | Ask on WhatsApp |
| 14 |
92903–06600
WASHER, PLATE
|
7 | Ask on WhatsApp |
| 14 |
92903–06600
WASHER, PLATE
|
7 | Ask on WhatsApp |
| 14 |
92903–06600
WASHER, PLATE
|
7 | Ask on WhatsApp |
| 15 |
90445–07254
HOSE (L118)
|
1 | Ask on WhatsApp |
| 15 |
90445–07254
HOSE (L118)
|
1 | Ask on WhatsApp |
| 15 |
90445–07254
HOSE (L118)
|
1 | Ask on WhatsApp |
| 16 |
90467–06016
CLIP
|
2 | Ask on WhatsApp |
| 16 |
90467–06016
CLIP
|
2 | Ask on WhatsApp |
| 16 |
90467–06016
CLIP
|
2 | Ask on WhatsApp |
| 17 |
6F6–13643–01–1S
COVER, MANIFOLD
|
1 | Ask on WhatsApp |
| 17 |
6F6–13643–01–1S
COVER, MANIFOLD
|
1 | Ask on WhatsApp |
| 17 |
6F6–13643–01–1S
COVER, MANIFOLD
|
1 | Ask on WhatsApp |
| 17 |
6J4–13643–00–1S
COVER, MANIFOLD
|
1 | Ask on WhatsApp |
| 18 |
97880–05014
SCREW, PAN HEAD
|
2 | Ask on WhatsApp |
| 18 |
97880–05014
SCREW, PAN HEAD
|
2 | Ask on WhatsApp |
| 18 |
97880–05014
SCREW, PAN HEAD
|
2 | Ask on WhatsApp |
| 19 |
92990–05100
WASHER, SPRING
|
2 | Ask on WhatsApp |
| 19 |
92990–05100
WASHER, SPRING
|
2 | Ask on WhatsApp |
| 19 |
92990–05100
WASHER, SPRING
|
2 | Ask on WhatsApp |
| 20 |
6F5–13621–A1
GASKET, VALVE SEAT
|
1 | Ask on WhatsApp |
| 20 |
6F5–13621–A1
GASKET, VALVE SEAT
|
1 | Ask on WhatsApp |
| 20 |
6F5–13621–A1
GASKET, VALVE SEAT
|
1 | Ask on WhatsApp |
| 21 |
6F5–13645–A1
GASKET, MANIFOLD 1
|
1 | Ask on WhatsApp |
| 21 |
6F5–13645–A1
GASKET, MANIFOLD 1
|
1 | Ask on WhatsApp |
| 21 |
6F5–13645–A1
GASKET, MANIFOLD 1
|
1 | Ask on WhatsApp |
| 22 |
624–14485–00
PIPE, JOINT
|
3 | Ask on WhatsApp |
| 22 |
624–14485–00
PIPE, JOINT
|
3 | Ask on WhatsApp |
| 22 |
624–14485–00
PIPE, JOINT
|
3 | Ask on WhatsApp |
| 23 |
90467–06016
CLIP
|
1 | Ask on WhatsApp |
| 23 |
90467–06016
CLIP
|
1 | Ask on WhatsApp |
| 24 |
647–14395–60
CAP, OVERFLOW PIPE
|
1 | Ask on WhatsApp |
| 25 |
6F5–14198–A1
GASKET
|
1 | Ask on WhatsApp |
| 25 |
6F5–14198–A1
GASKET
|
1 | Ask on WhatsApp |
| 25 |
6F5–14198–A1
GASKET
|
1 | Ask on WhatsApp |
| 26 |
92995–06600
WASHER
|
4 | Ask on WhatsApp |
| 26 |
92995–06600
WASHER
|
4 | Ask on WhatsApp |
| 26 |
92995–06600
WASHER
|
4 | Ask on WhatsApp |
| 27 |
95380–06600
NUT, HEXAGON
|
4 | Ask on WhatsApp |
| 27 |
95380–06600
NUT, HEXAGON
|
4 | Ask on WhatsApp |
| 27 |
95380–06600
NUT, HEXAGON
|
4 | Ask on WhatsApp |
| 28 |
6F5–14417–00
COVER 1
|
1 | Ask on WhatsApp |
| 28 |
6F5–14417–00
COVER 1
|
1 | Ask on WhatsApp |
| 28 |
6F5–14417–00
COVER 1
|
1 | Ask on WhatsApp |
| 29 |
6F5–14418–00
COVER 2
|
1 | Ask on WhatsApp |
| 29 |
6F5–14418–00
COVER 2
|
1 | Ask on WhatsApp |
| 29 |
6F5–14418–00
COVER 2
|
1 | Ask on WhatsApp |
| 30 |
90159–06M01
SCREW, WITH WASHER
|
3 | Ask on WhatsApp |
| 30 |
90159–06M01
SCREW, WITH WASHER
|
3 | Ask on WhatsApp |
| 30 |
90159–06M01
SCREW, WITH WASHER
|
3 | Ask on WhatsApp |
| 31 |
97780–50716
SCREW, TAPPING
|
4 | Ask on WhatsApp |
| 31 |
97780–50716
SCREW, TAPPING
|
4 | Ask on WhatsApp |
| 31 |
97780–50716
SCREW, TAPPING
|
4 | Ask on WhatsApp |
| 32 |
6F5–14476–00
SEAL
|
1 | Ask on WhatsApp |
| 32 |
6F5–14476–00
SEAL
|
1 | Ask on WhatsApp |
| 32 |
6F5–14476–00
SEAL
|
1 | Ask on WhatsApp |
| 33 |
624–14485–00
PIPE, JOINT
|
1 | Ask on WhatsApp |
| 33 |
624–14485–00
PIPE, JOINT
|
1 | Ask on WhatsApp |
| 34 |
90445–07240
HOSE (L330)
|
2 | Ask on WhatsApp |
| 34 |
90445–07240
HOSE (L330)
|
3 | Ask on WhatsApp |
| 34 |
90445–07240
HOSE (L330)
|
3 | Ask on WhatsApp |
| 35 |
90445–07M24
HOSE (L240)
|
1 | Ask on WhatsApp |
| 35 |
90445–07M24
HOSE (L240)
|
1 | Ask on WhatsApp |
| 35 |
90445–07M24
HOSE (L240)
|
1 | Ask on WhatsApp |
| 36 |
90467–06016
CLIP
|
6 | Ask on WhatsApp |
| 36 |
90467–06016
CLIP
|
6 | Ask on WhatsApp |
| 36 |
90467–06016
CLIP
|
6 | Ask on WhatsApp |
| 37 |
90467–06016
CLIP
|
1 | Ask on WhatsApp |
| 37 |
90467–06016
CLIP
|
1 | Ask on WhatsApp |
| 38 |
6F5–14483–00
GASKET
|
1 | Ask on WhatsApp |
| 38 |
6F5–14483–00
GASKET
|
1 | Ask on WhatsApp |
| 38 |
6F5–14483–00
GASKET
|
1 | Ask on WhatsApp |
| 39 |
6F5–41252–00
LEVER, CHOKE 1
|
1 | Ask on WhatsApp |
| 39 |
6F5–41252–00
LEVER, CHOKE 1
|
1 | Ask on WhatsApp |
| 39 |
6F5–41252–00
LEVER, CHOKE 1
|
1 | Ask on WhatsApp |
| 40 |
682–41271–00
KNOB, CHOKE
|
1 | Ask on WhatsApp |
| 40 |
682–41271–00
KNOB, CHOKE
|
1 | Ask on WhatsApp |
| 40 |
682–41271–00
KNOB, CHOKE
|
1 | Ask on WhatsApp |
| 41 |
689–41273–00
GROMMET
|
1 | Ask on WhatsApp |
| 41 |
689–41273–00
GROMMET
|
1 | Ask on WhatsApp |
| 41 |
689–41273–00
GROMMET
|
1 | Ask on WhatsApp |
| 42 |
6F6–41256–00
ROD, CHOKE 1
|
1 | Ask on WhatsApp |
| 42 |
6F6–41256–00
ROD, CHOKE 1
|
1 | Ask on WhatsApp |
| 42 |
6F6–41256–00
ROD, CHOKE 1
|
1 | Ask on WhatsApp |
| 43 |
661–41262–02
JOINT, CHOKE LEVER
|
2 | Ask on WhatsApp |
| 43 |
661–41262–02
JOINT, CHOKE LEVER
|
2 | Ask on WhatsApp |
| 43 |
661–41262–02
JOINT, CHOKE LEVER
|
2 | Ask on WhatsApp |
| 44 |
91690–40032
PIN, SPRING
|
1 | Ask on WhatsApp |
| 44 |
91690–40032
PIN, SPRING
|
1 | Ask on WhatsApp |
| 44 |
91690–40032
PIN, SPRING
|
1 | Ask on WhatsApp |
